Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance
Upper trailing arm to body Item 1: Hexagonhead bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 50 Nm (37 ftlb.)
G15858916Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper trailing arm
Upper trailing arm to body Item 2: Hexagonhead bolt, M10 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening + 120°

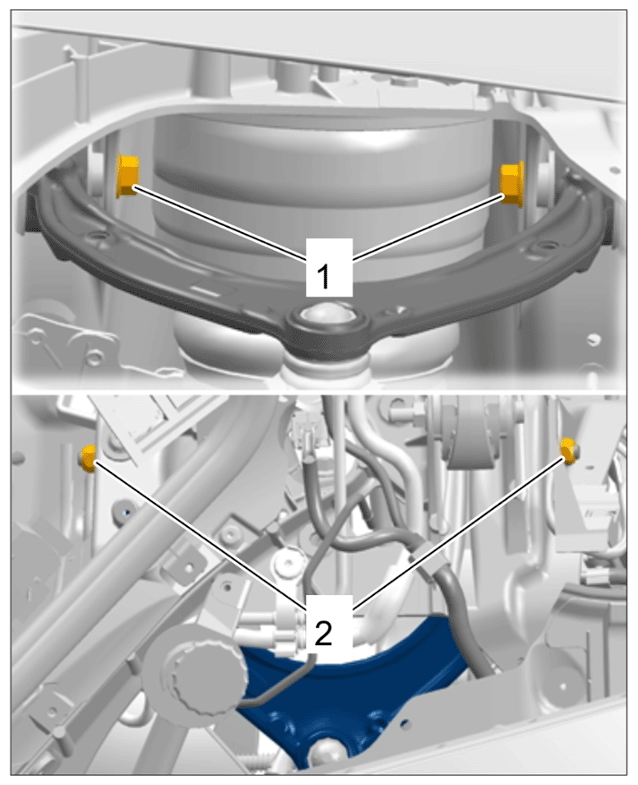

G15858917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper trailing arm
