Removing Front-Axle Support (Rear Section)

WARNING: This page is about a different variant/trim than selected.

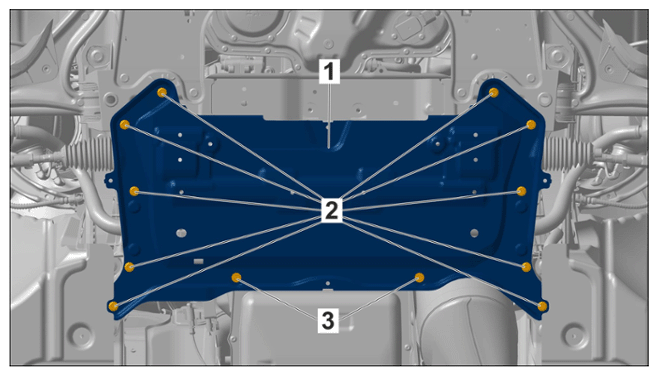

  1. Unscrew screws -2 and 3-  .
G15858913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle support (rear section)
