Installing Front-Axle Support (Rear Section)
WARNING: This page is about a different variant/trim than selected.
Information
Make sure that the electric lines for steering and PDCC -1-
are routed through the openings >Correct position of the lines
. The electric lines can be pressed together slightly by screwing the front-axle support (rear section).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Correct position of the lines
- Tighten screws -2 and 3-
.
-2-
: >Tightening torque 30 Nm (22 ftlb.)
-3-
: >Tightening torque 30 Nm (22 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

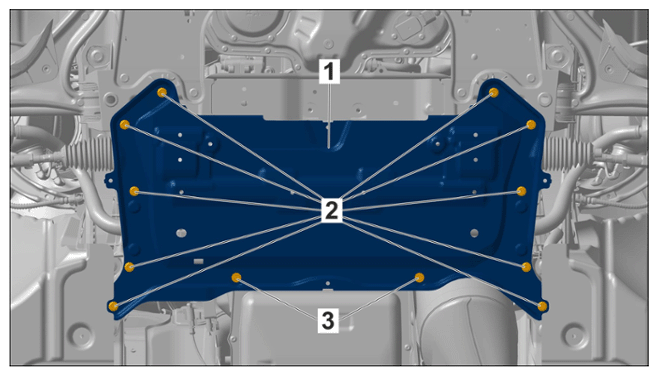

Front-axle support (rear section)
