Replacing Positive Crankcase Ventilation Hose

Information

• Clean all line connections carefully and close them off or cover them.
• Use suitable stoppers for closing off lines.

Information

• Only unscrew the screw if the positive crankcase ventilation hose needs to be replaced.
• Always ensure that a new screw with the part number 9A710344800 is used.

1. Replace positive crankcase ventilation hose -2-  .
   1. 1.1 Loosen screw -1-  using a multiple-tooth socket wrench (M6).
   2. 1.2 Drive the multiple-tooth socket wrench into the screw head using a hammer.
   3. 1.3 Loosen the screw -1-  using jerking movements and unscrew.
   4. 1.4 Replace positive crankcase ventilation hose -2-  .
   5. 1.5 Fit new screw -1-  and tighten using > VAS 6970 - Insert bit  .

      > Tightening torque 9 Nm (6.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

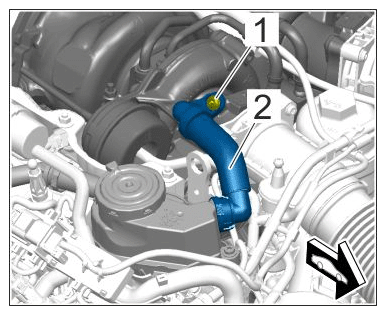

      Positive crankcase ventilation hose
