Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install crankshaft sealing ring.
> 137419 REMOVING AND INSTALLING CRANKSHAFT SEALING RING
Install vibration damper.
> 137519 REMOVING AND INSTALLING CRANKSHAFT VIBRATION DAMPER (V8 BITURBO)
Install oil pressure control valve.
> Refer to the appropriate Service Information for Removing and installing oil pressure control valve

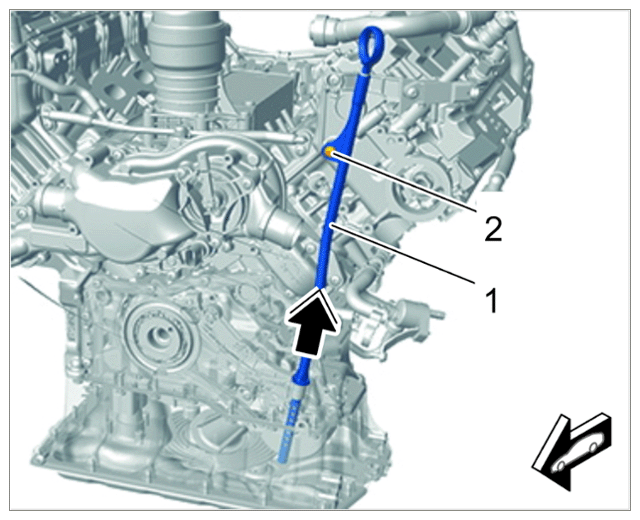

Install guide tube for oil dipstick -1- .
1. 4.1 Insert guide tube for oil dipstick -1- into the crankcase cover.
2. 4.2 Fit and tighten screw -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide tube for oil dipstick
Install belt tensioner (air-conditioning compressor).
> WM, 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR) (V8 BITURBO)
Install the engine.
> 100119 REMOVING AND INSTALLING ENGINE
Fill in engine oil.
> 170117 DRAINING AND FILLING IN ENGINE OIL
