Installing Crankcase Cover

Information

Fitting and sealing components using liquid sealant.

• Clean sealing faces to remove all traces of residual sealant.
• Sealing faces must be free of grease and oil.
• Clean sealing faces with primer Loctite 7515.
• Use liquid sealant Loctite 5970-BM.

Information

Replace O-ring.

1. Apply liquid sealant Loctite 5970-BM -1-  on the crankcase cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

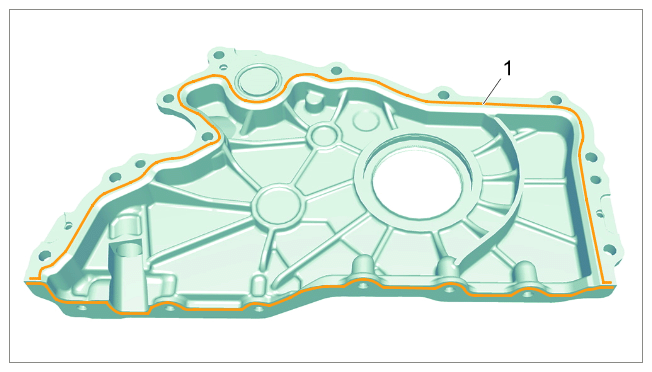

   Applying sealant on crankcase cover

2. Install crankcase cover.
   1. 2.1 Fit crankcase cover uniformly on the oil guide housing and crankcase.
   2. 2.2 Fit screws uniformly and tighten in the sequence -1 to 10-  .

      > Tightening torque 9 Nm (6.5 ftlb.)

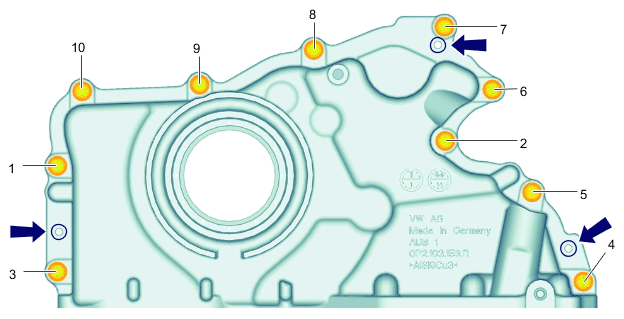

      Fig 1: Crankcase Cover Screws Tightening Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Crankcase cover
