Preliminary Work
- Danger of material damage due to blocked oil bores/oil ducts
→ Absolute cleanliness is essential when working on the engine.
→ Lay removed engine parts on a clean base and make sure to cover them.
- Risk of squashing
→ Wear personal protective gear.
→ Get someone to help if necessary.
- If cold or differently tempered components are sealed to each other by applying a sealant, adhesion problems or leaks can result because of condensed water forming or components becoming distorted.
→ All components must be at least 17°C.
→ Components must not be too hot (distortion).
→ Spare parts stored in cold or heat (strong exposure to sunlight) must be at room temperature, or must have the same temperature as other components, before installation.
- Residual fluid (fuel, oil, Pentosin, coolant, etc.) will emerge even after a long time when disassembling and assembling the engine.
→ Place a drip tray under the engine at the assembly support.
→ Have a sufficient number of cleaning cloths ready.
→ Close off engine openings using stoppers.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
Information
- Carry out all engine repairs only using the specified tools.
- Only these tools have been tested and approved.
Information
- Photos taken with a digital camera are helpful for dealing with complicated line routing (engine wire harness).
- For details, see 975219 "Removing and installing engine wire harness".
Information
For tightening torques, tightening sequence and assembly overviews for the engine and transmission:
- Group 1:
- Group 2:
- Group 3:
- Remove the engine.
- Remove engine.
- Secure engine to assembly support.
> WM, 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V8 BITURBO)
- Drain engine oil.
- Remove turbocharger.
- Remove oil filter housing.
> 172919 REMOVING AND INSTALLING OIL FILTER HOUSING (V8 BITURBO)

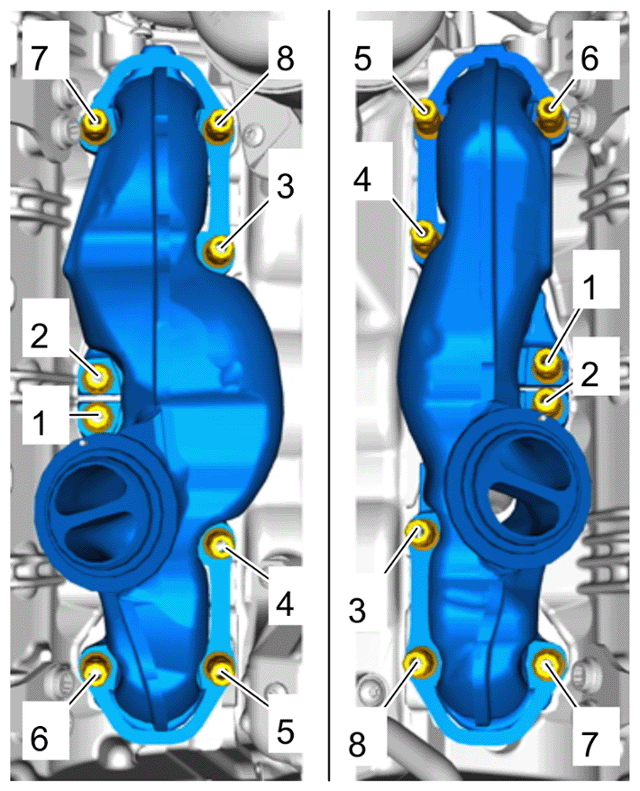

- Remove exhaust manifold at the left and right.
> 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD (V8 TURBO)
- 7.1 Unscrew nuts -8 to 1- and remove exhaust manifold with seal.
Exhaust manifold

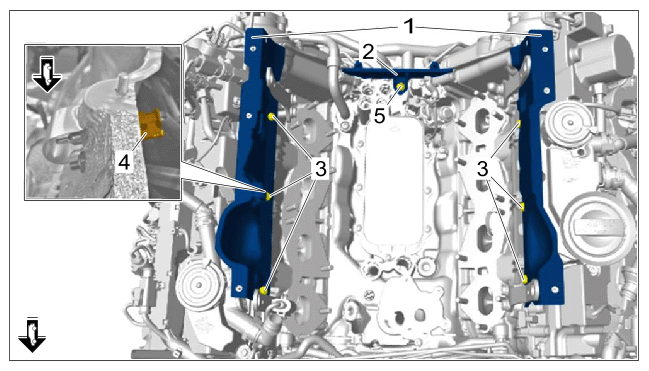

- Remove heat shields -1-
and heat protection -2-
.
- 8.1 Remove heat shields -1-
.
- 8.1.1 Unscrew screws -3- .
- 8.1.2 Release and disconnect electric plug connection -4- .
- 8.2 Remove heat protection -2-
.
- 8.2.1 Unscrew screw -5- .
Heat protection in inner V
- 8.1 Remove heat shields -1-
.

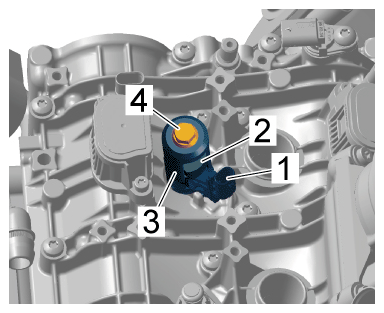

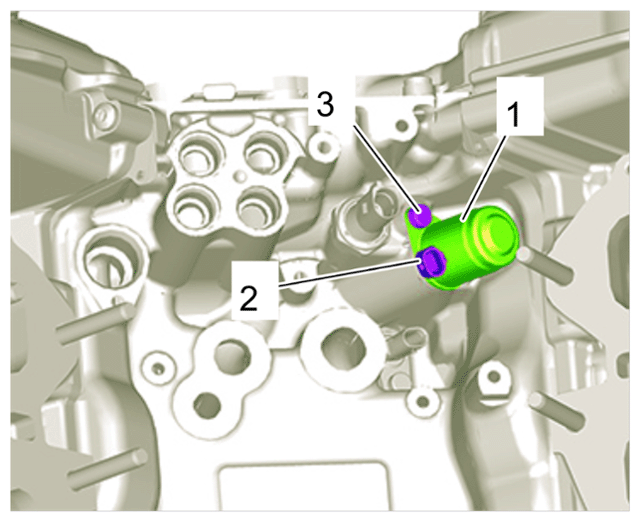

- Remove piston spray nozzle control valve -1-
.
> 172519 REMOVING AND INSTALLING PISTON SPRAY NOZZLE CONTROL VALVE (V8 BITURBO)
Piston spray nozzle control valve

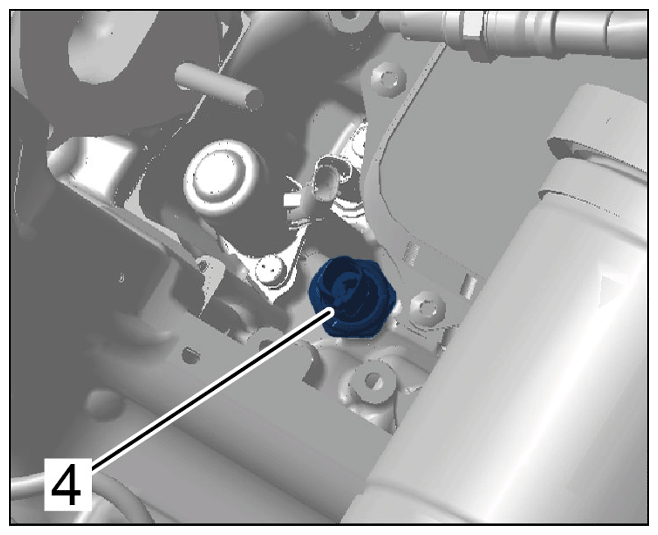

- Remove oil pressure switch -4-
.
> 170519 REMOVING AND INSTALLING OIL PRESSURE SWITCH (V8 BITURBO)
Oil pressure switch

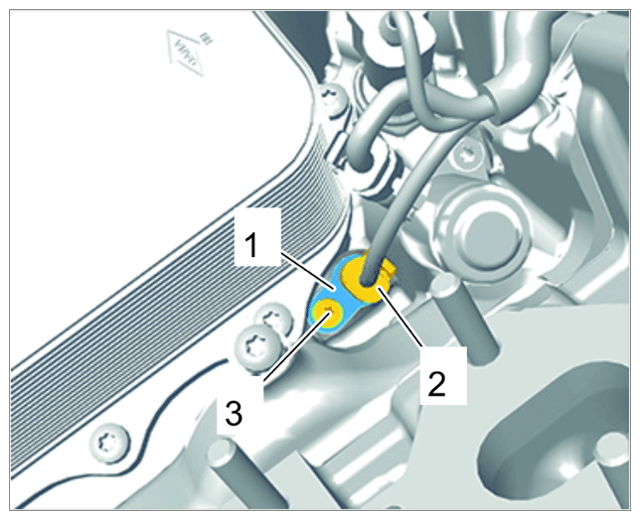

- Remove oil temperature sensor -1-
.
> WM, 170719 REMOVING AND INSTALLING OIL TEMPERATURE SENSOR
Oil temperature sensor

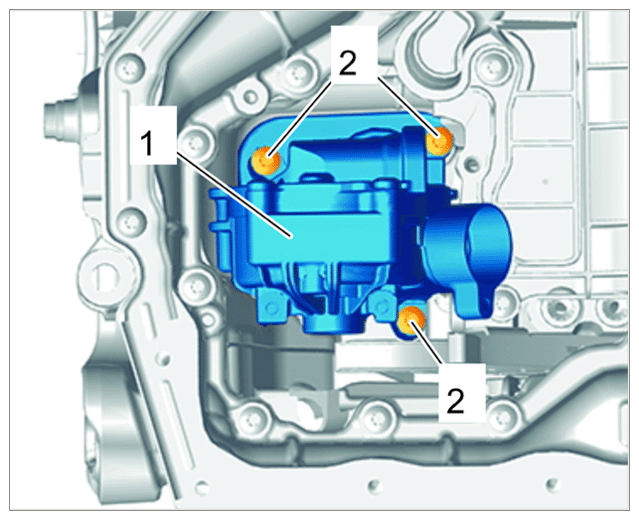

- Remove oil/water heat exchanger -1-
.
> 174019 REMOVING AND INSTALLING OIL/WATER HEAT EXCHANGER (V8 BITURBO)
- 12.1 Unscrew screws -2- and remove oil/water heat exchanger -1- with seal.
Oil/water heat exchanger
- Remove drive belt -1 and 2-
.
> 137819 REMOVING AND INSTALLING DRIVE BELT (V8 BITURBO)

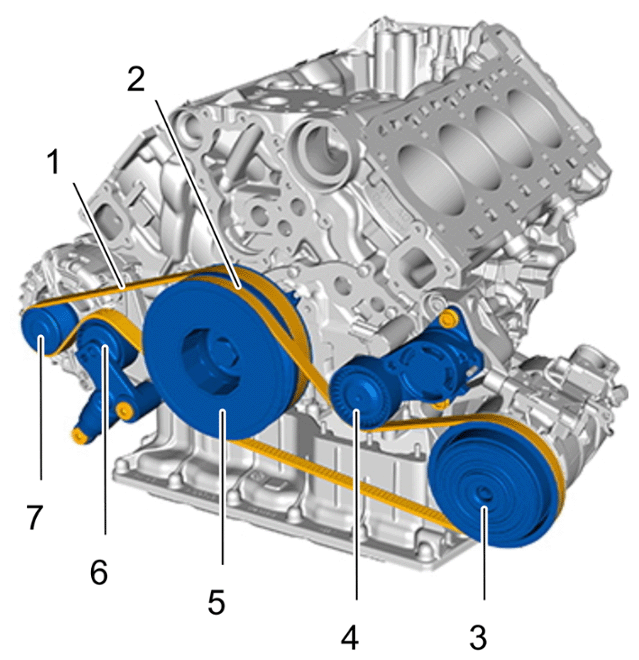

Overview of belt drive

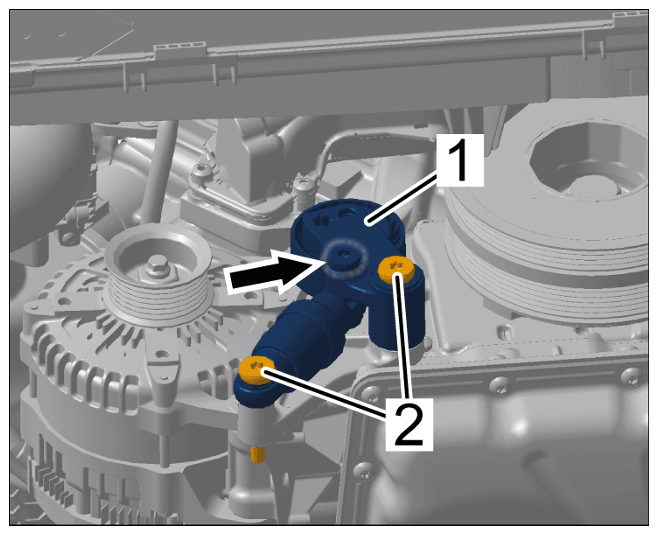

1 Belt for generator 2 Belt for air-conditioning compressor 3 Air-conditioning compressor 4 Belt tensioner (air-conditioning compressor) 5 Vibration damper 6 Belt tensioner (generator) 7 Generator - Remove belt tensioner (generator) -1-
.
> 137319 REMOVING AND INSTALLING BELT TENSIONER (GENERATOR)
- 14.1 Unscrew screws -2- and remove belt tensioner.
Belt tensioner (generator)

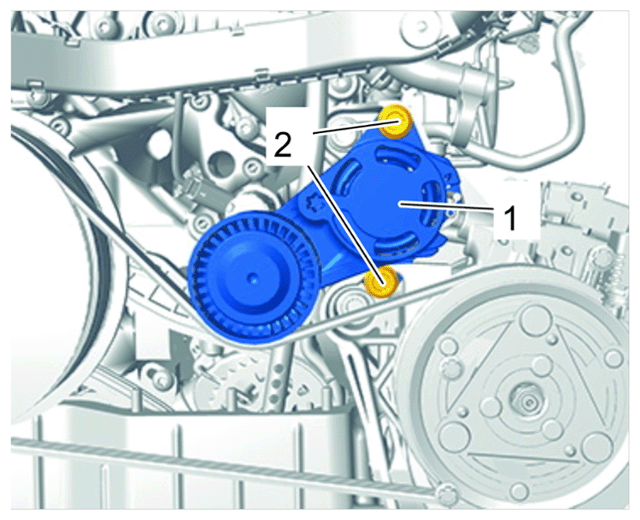

- Remove belt tensioner (air-conditioning compressor) -1-
.
> WM, 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR) (V8 BITURBO)
- 15.1 Unscrew screws -2- and remove belt tensioner.
Belt tensioner (air-conditioning compressor)

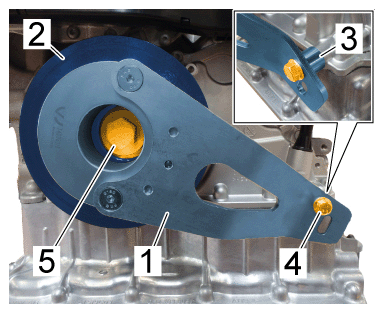

- Remove crankshaft vibration damper -2-
.
> 137519 REMOVING AND INSTALLING CRANKSHAFT VIBRATION DAMPER (V8 BITURBO)
- 16.1 > T40330 - Counter-hold tool-1- must be fitted. Then loosen and unscrew screw -5- . Remove crankshaft vibration damper -2- .
Counterhold tool on crankshaft vibration damper
- Remove generator with bracket.
- Remove air-conditioning compressor with bracket.
> WM, 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR - Coupe or WM, 873419 REMOVING AND INSTALLING ELECTRIC AIR-CONDITIONING COMPRESSOR - Wagon
- Remove coolant regulator housing -1-
.
> 195519 REMOVING AND INSTALLING COOLANT REGULATOR HOUSING (V8 BITURBO)
- 19.1 Unscrew screws -2- and remove housing with coolant regulator -1- .
Coolant regulator housing

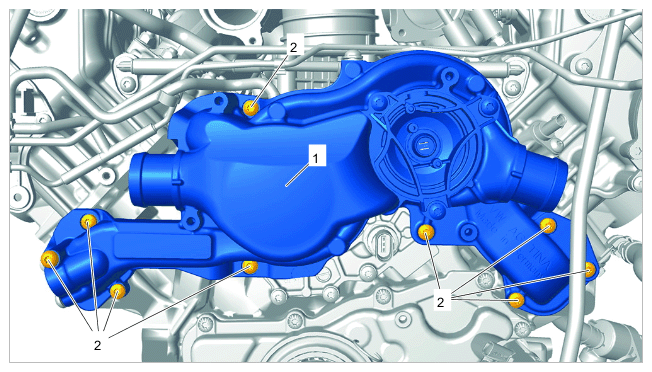

- Remove coolant pump.
> 195019 REMOVING AND INSTALLING COOLANT PUMP (V8 BITURBO)

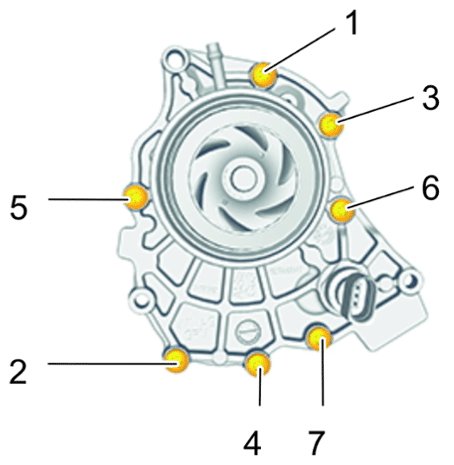

- 20.1 Unscrew screws -7 to 1- and remove coolant pump.
Tightening sequence for coolant pump
- Remove flywheel.
> 136019 REMOVING AND INSTALLING FLYWHEEL

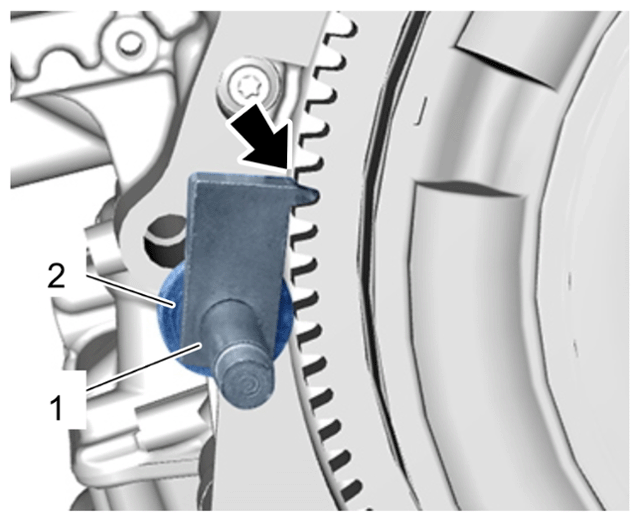

- 21.1 > 10-201 - Counter-hold tool-1- with two washers -2- must be fitted on the flywheel. Then unscrew screws on the flywheel. Remove flywheel.
Countering at the flywheel

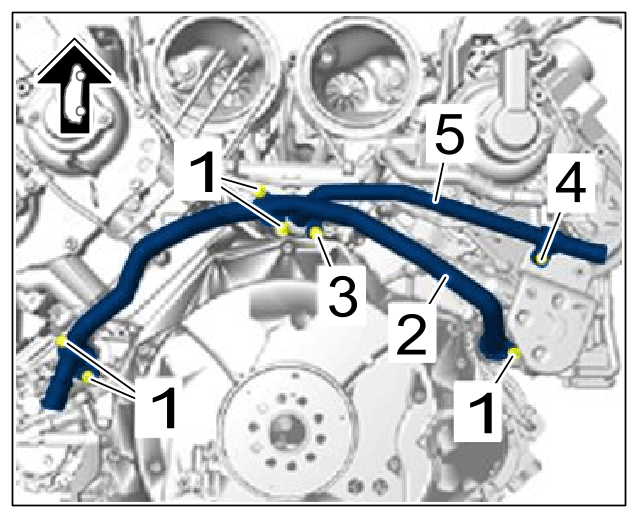

- Remove coolant lines -2 and 5-
.
- 22.1 Unscrew screws -1, 3 and 4- and remove coolant lines.
Coolant lines

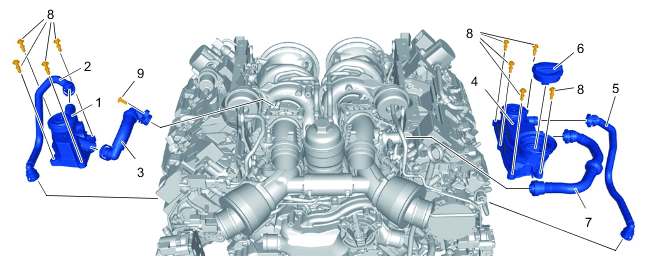

- Remove oil mist separator at the left and right with vent lines.
> 105519 REMOVING AND INSTALLING (RIGHT) OIL MIST SEPARATOR (V8 BITURBO)
Oil mist separator
- Remove engine wire harness.
> WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS
> WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS
- 24.1 Release and disconnect the relevant cable plugs.
- 24.2 Unclip and remove wire harness for engine.
- Remove tank vent valves with vent lines.
> WM, 202319 REMOVING AND INSTALLING TANK VENT VALVE (V8 BITURBO)

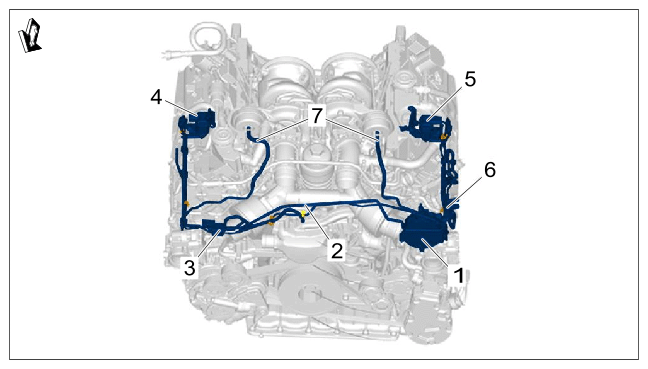

- Unclip and remove vacuum line assembly.
Vacuum system
1 Brake booster vacuum pump 2 Vacuum line 3 Electric change-over valve for water pump 4 Control valve for boost pressure control, cylinders 1 to 4 5 Control valve for boost pressure control, cylinders 5 to 8 6 Brake booster connection 7 Vacuum unit connection - Remove intake-air distributor.
> 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR (V8 BITURBO)

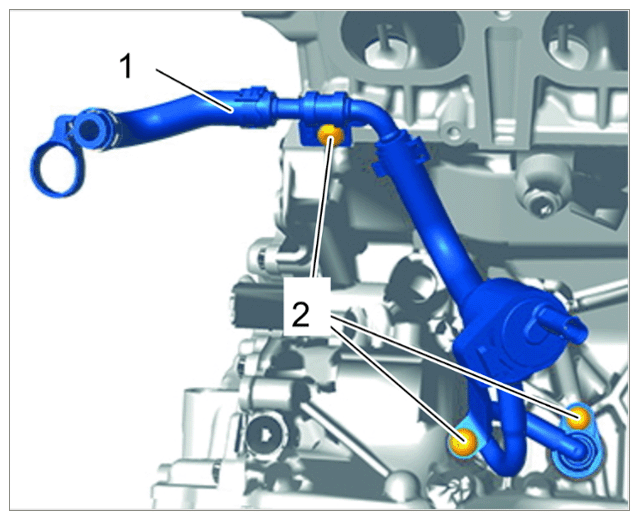

- Remove PCV line -1-
.
- 28.1 Unscrew screws -2- and remove PCV line -1- .
PCV line
- Remove knock sensors.
- Remove ignition coils.
> 282020 REMOVING AND INSTALLING IGNITION COILS (V8 BITURBO)
- Remove spark plugs.

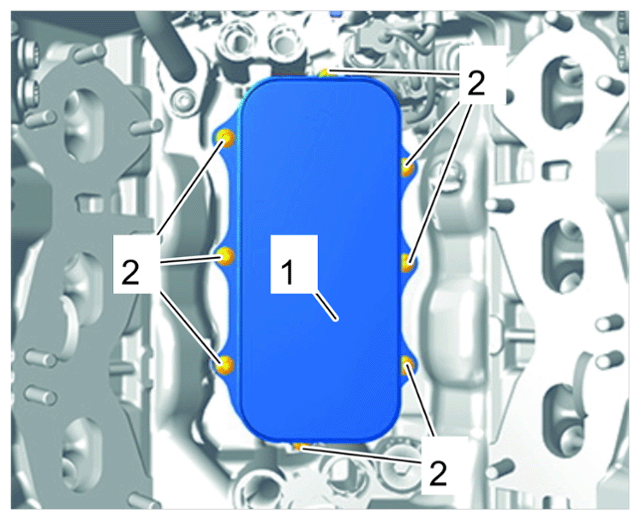

- Remove upper heat insulation -1-
.
Heat insulation
- Remove fuel lines (high-pressure pump to rail).
> 249019 REMOVING AND INSTALLING FUEL LINE (LEFT HIGH-PRESSURE PUMP TO RAIL) (V8 BITURBO)
> 249019 REMOVING AND INSTALLING FUEL LINE (RIGHT HIGH-PRESSURE PUMP TO RAIL) (V8 BITURBO)

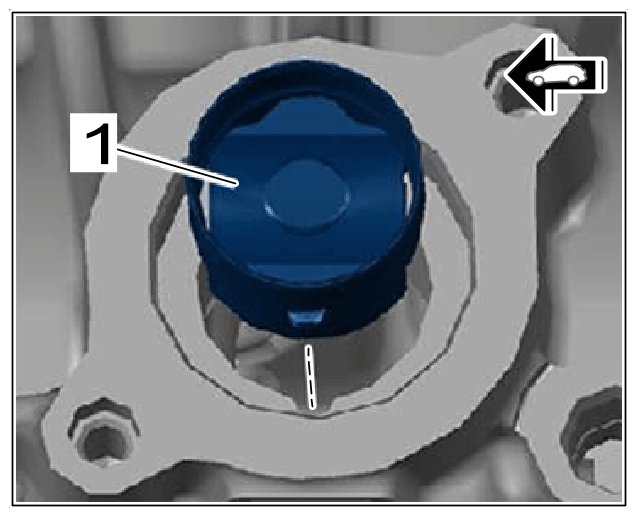

- Remove high-pressure pumps and remove tappets -1-
using a magnet.
> 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP (V8 BITURBO)
Tappets for high-pressure pump (similar to illustration)
- Remove fuel injectors -1-
.
- 35.1 Use > T10133C - Tool set
if necessary.
> 244019 REMOVING AND INSTALLING FUEL INJECTOR
Injection valve
- 35.1 Use > T10133C - Tool set
if necessary.

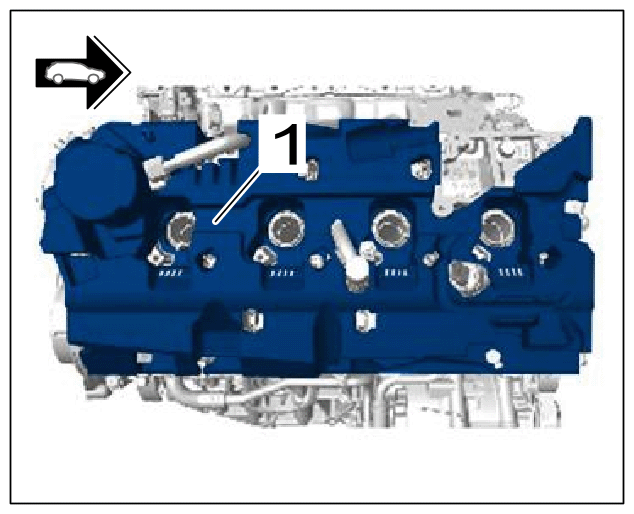

- Remove solenoid hydraulic valves for valve lift adjustment -2-
.
> WM, 155519 REMOVING AND INSTALLING SOLENOID HYDRAULIC VALVE FOR VALVE LIFT ADJUSTMENT (V8 BITURBO)
Solenoid hydraulic valve for valve lift adjustment

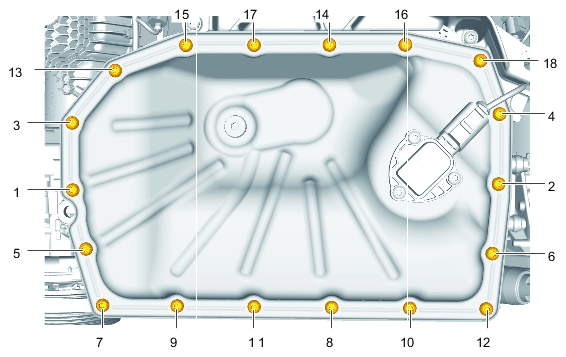

- Remove oil pan.
- 37.1 Unscrew screws -18 to 1-
.
> 175019 REMOVING AND INSTALLING OIL PAN (V8 BITURBO)
Oil pan
- 37.1 Unscrew screws -18 to 1-
.

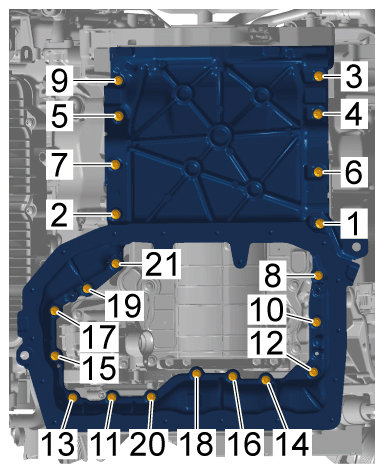

- Remove oil guide housing.
- 38.1 Unscrew screws -21 to 1-
.
> 174619 REMOVING AND INSTALLING OIL GUIDE HOUSING (V8 BITURBO)
Oil guide housing
- 38.1 Unscrew screws -21 to 1-
.
- Remove oil pump -1-
.
- 39.1 Unscrew screws -2-
.
> WM, 172019 REMOVING AND INSTALLING OIL PUMP (V8 BITURBO)
Oil pump
- 39.1 Unscrew screws -2-
.
