Removing Solenoid Hydraulic Valve For Valve Lift Adjustment (Cylinder 3)
WARNING: This page is about a different variant/trim than selected.
Only for intake side of cylinder 3:

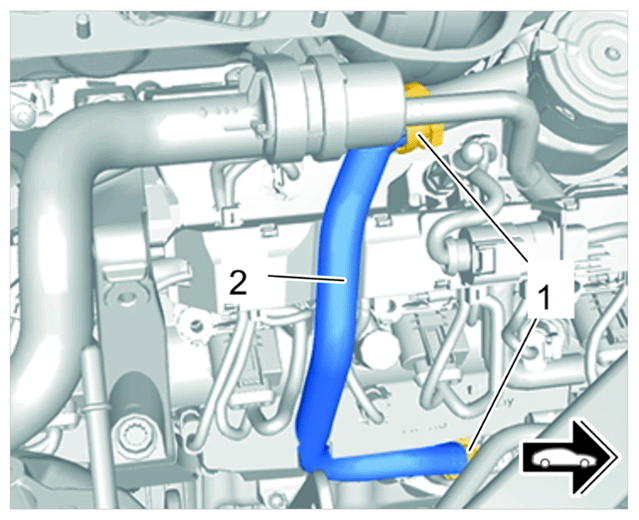

- Remove partial load vent line for oil mist separator -2-
.
- 1.1 Press release buttons on both sides and loosen adapter -1-
.
- 1.2 Remove partial load vent line -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Partial load vent line for oil mist separator

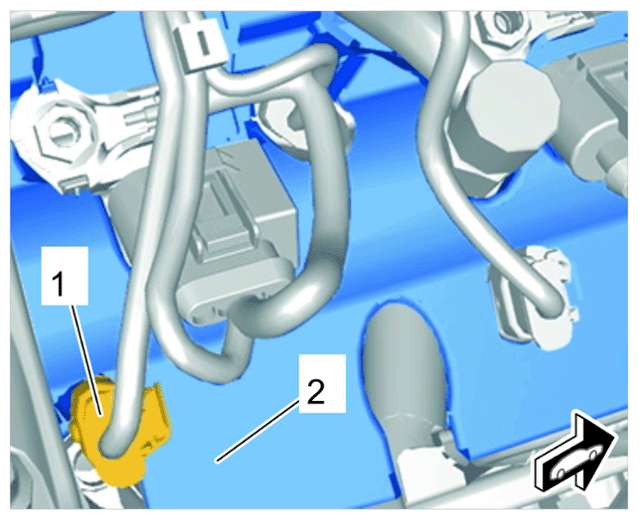

- Lift up moulded part -2-
.
- 2.1 Release and disconnect electric push-on connector -1-
.
- 2.2 Lift up moulded part -2-
for easier access to the solenoid hydraulic valve for valve lift adjustment.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Intake side of cylinder 3

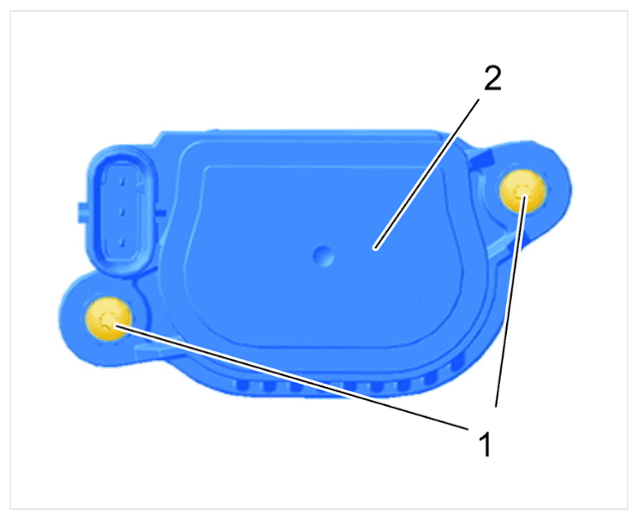

- Unscrew fastening screws -1-
and remove solenoid hydraulic valve for valve lift adjustment -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Solenoid hydraulic valve for valve lift adjustment
Only for outlet side of cylinder 3:
- Remove partial load vent line for oil mist separator -2-
.
- 4.1 Press release buttons on both sides and loosen adapter -1-
.
- 4.2 Remove partial load vent line -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Partial load vent line for oil mist separator

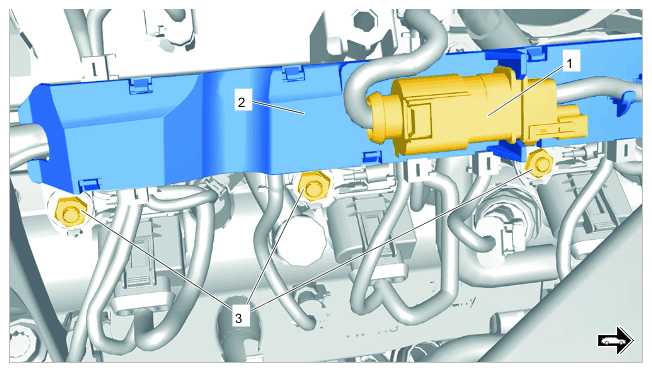

- Remove engine wire harness guide -2-
.
- 5.1 Unclip, release and disconnect electric plug connection -1-
.
- 5.2 Open engine wire harness guide -2-
and remove wire harness.
- 5.3 Screw off fastening nuts -3-
.
- 5.4 Remove engine wire harness guide -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Engine wire harness guide

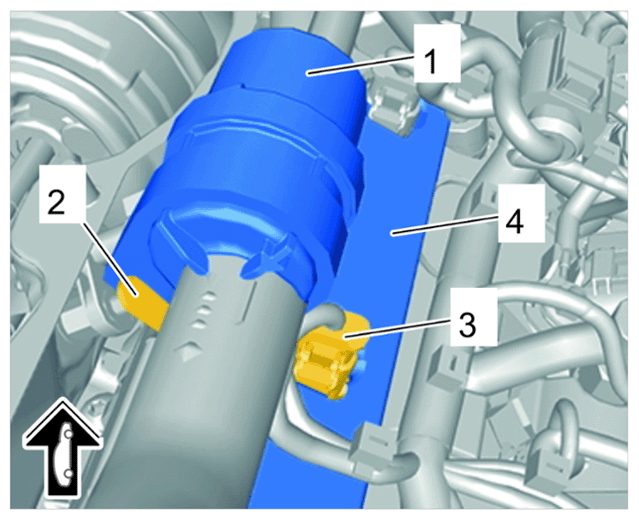

- Lift up moulded part -4-
.
- 6.1 Pull tank vent valve -1-
off holder -2-
.
- 6.2 Release and disconnect electric plug connection -3-
.
- 6.3 Lift up moulded part -4-
for easier access to the solenoid hydraulic valve for valve lift adjustment.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Tank vent
- Unscrew fastening screws -1-
and remove solenoid hydraulic valve for valve lift adjustment -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Solenoid hydraulic valve for valve lift adjustment
