Installing Guide And Tensioning Rails For Cylinder Bank 1
WARNING: This page is about a different variant/trim than selected.
Information
Check length of timing chains:
- The timing chains have different lengths.
- Bank 1: 122 links
- Bank 2: 124 links
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1 Fit short timing chain.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

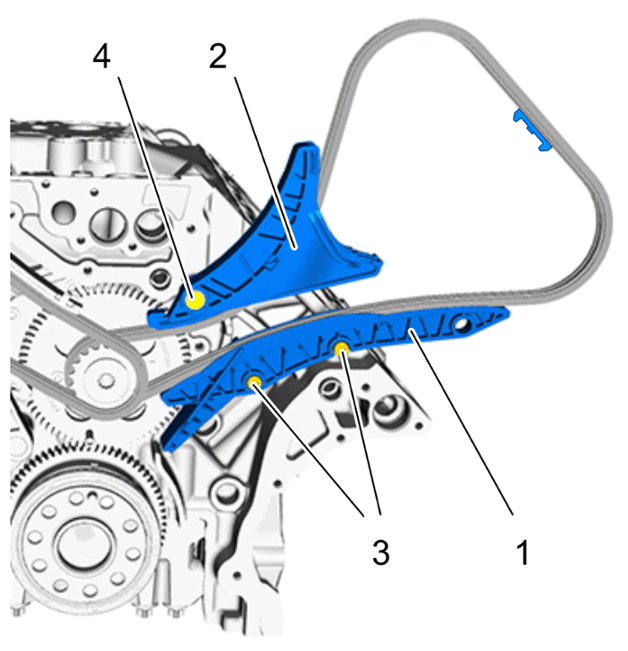

Guide and tensioning rails for cylinders 1 to 4
