Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. > T40331 - Camshaft clamp  must be fitted.

    > 158420 REMOVING AND INSTALLING CAMSHAFT ACTUATORS (INCLUDES SETTING TIMING)

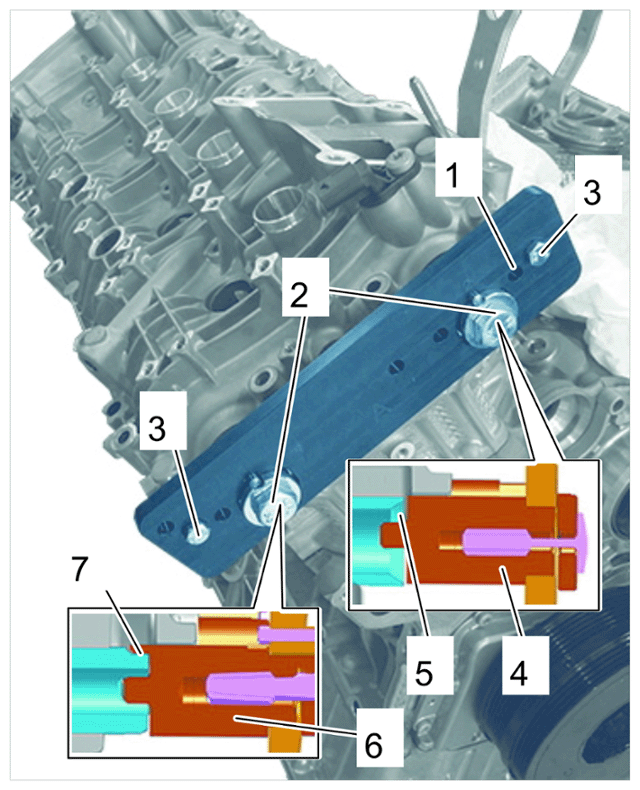

    G15823733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft clamps

  2. Install cylinder head cover.

    > 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER (V8 BITURBO)

  3. Install the engine.

    > 100119 REMOVING AND INSTALLING ENGINE
