Installing Supply Line (Section From Fuel Tank To Engine)
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following.
Make sure that locks on connections engage securely.
Replace fastening screws on the reinforcement strut!
Fastening screws for cover > Tightening torque 8 Nm (6 ftlb.) .

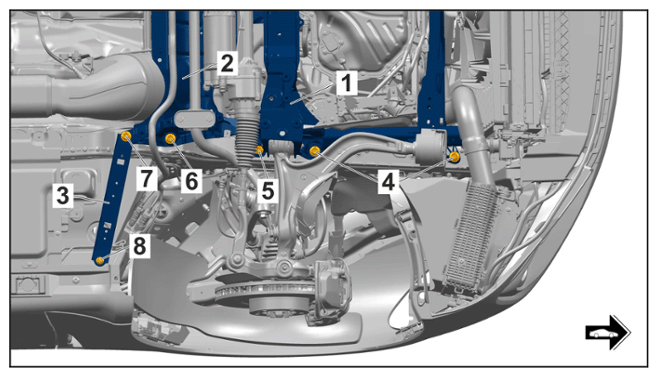

Fastening screw -7- for reinforcement strut -3- > Initial tightening 70 Nm (51.6 ftlb.) > Final tightening + 180° .
Fastening screw -8- for reinforcement strut -3- > Initial tightening 50 Nm (36.9 ftlb.) > Final tightening + 45° .
Front-axle carrier
