Remove Fuel Tank

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapors.

    → Attach warning sign in a clearly visible position.

    → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

    → Se cure collection containers/vessels to prevent them from tipping over.

WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin

    → Ventilate the work area well.

    → Never ingest or inhale.

    → Read specific information on the Hazard Sheet.

    → Wear personal protective gear.

    → Do not smoke, eat or drink in the work area.

  1. Have suitable aids ready for collecting emerging fuel.
  2. Have suitable stoppers ready for closing off the line connections.

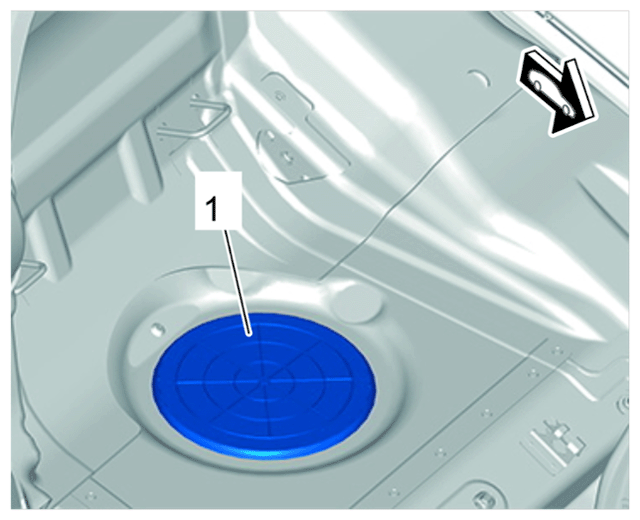

  3. Remove cover on floorpan -1-  .
    G15879250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on floorpan

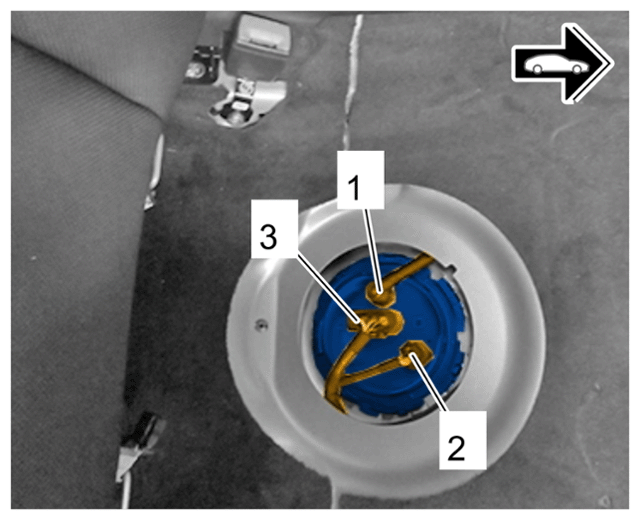

  4. Disconnect fuel tank connections.
    1. 4.1 Release and disconnect plug-in coupling for the fuel line -1-  .
    2. 4.2 Collect escaping fuel.
    3. 4.3 Close off line connections using suitable stoppers.
    4. 4.4 Release and disconnect electric plug connections -2 and 3-  .
      G15879251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel tank connections

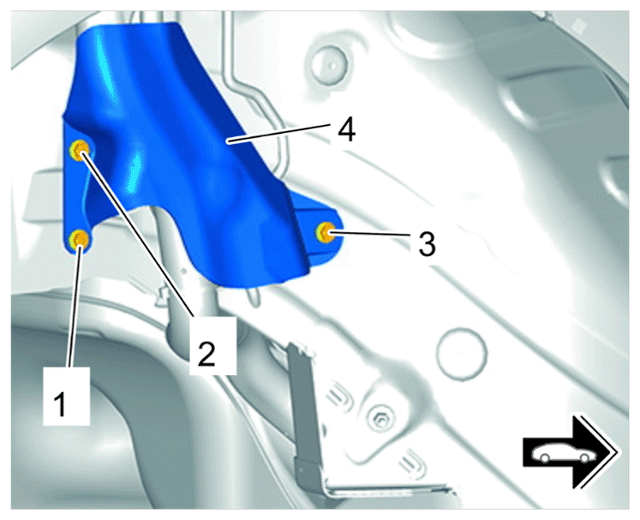

  5. Unscrew screws -1 to 3-  and remove protective cover -4-  .
    G15879252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protective cover for filler tube

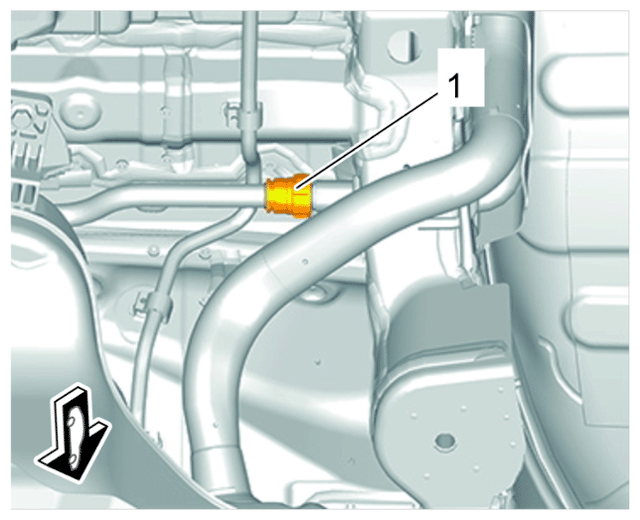

  6. Loosen fuel tank connection -1-  at the underbody.
    1. 6.1 Release and disconnect fuel tank connection -1-  .
    2. 6.2 Collect escaping fuel.
    3. 6.3 Close off line connections with stoppers.
      G15879253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel tank connection on underbody

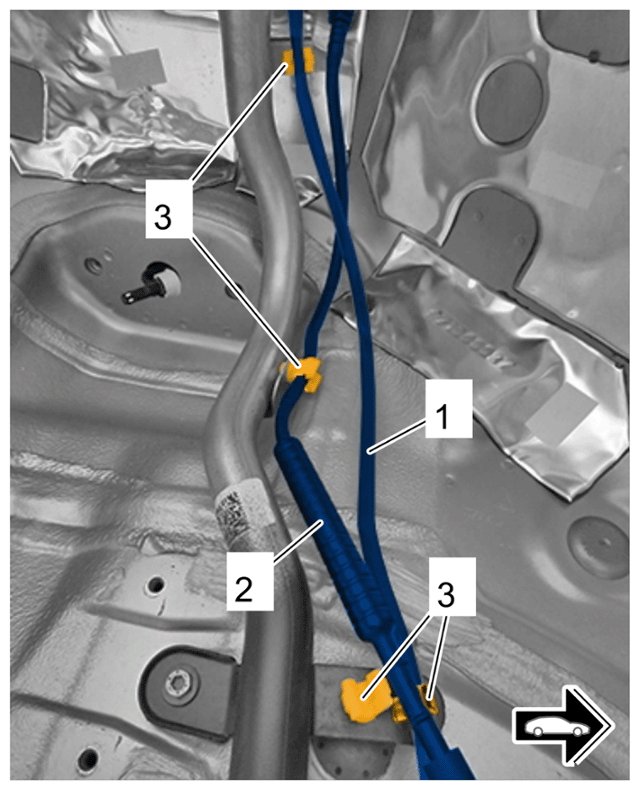

  7. Unclip fuel tank lines -1 and 2-  from retaining clips -3-  .
    G15879254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank lines

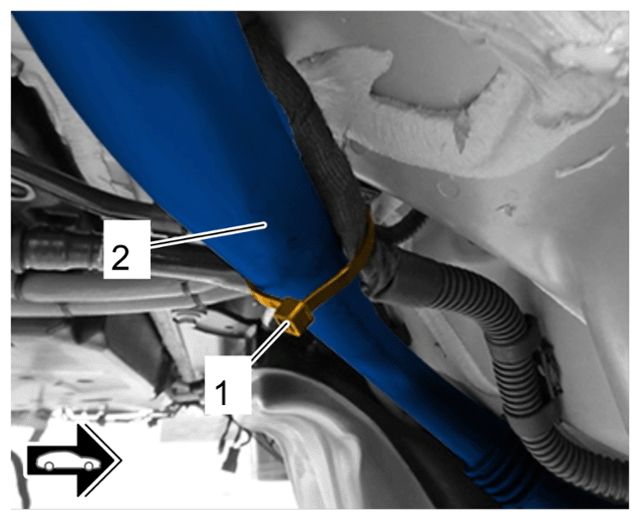

  8. Cut tie-wrap -1-  on fuel filler tube -2-  .
    G15879255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line on fuel filler tube

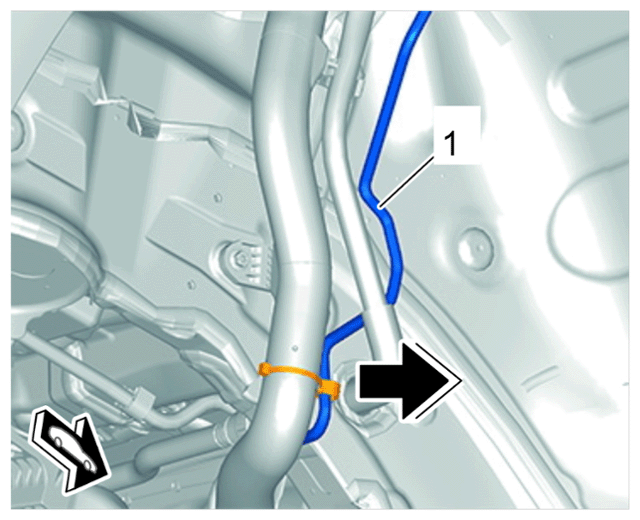

  9. Unclip hose -1-  from the line clip -arrow-  .
    G15879256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose

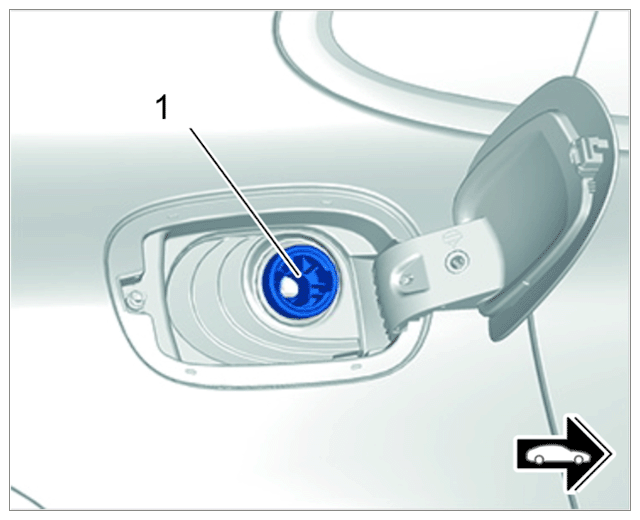

  10. Remove cover -1-  .
    G15879257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lid

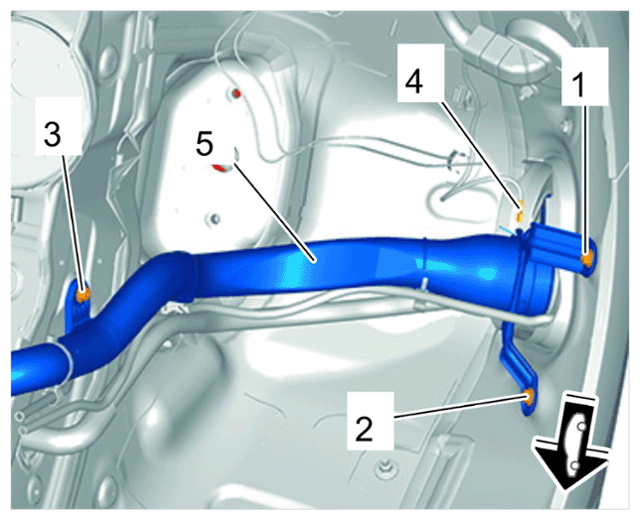

  11. Loosen fuel filler tube -5-  .
    1. 11.1 Unscrew and remove screws -1 to 3-  .
    2. 11.2 Release and disconnect electric plug connection -4-  .
    3. 11.3 Carefully pull head of the filler tube -5-  out of the filler flap seal.
      G15879258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel filler tube

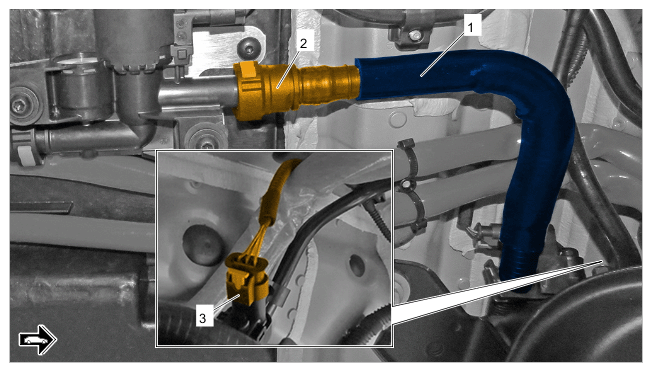

  12. Disconnect carbon causer line -1-  .
    1. 12.1 Release and disconnect quick connector -2-  .
    2. 12.2 Release and disconnect electric plug connection -3-  .
      G15879259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Carbon canister line

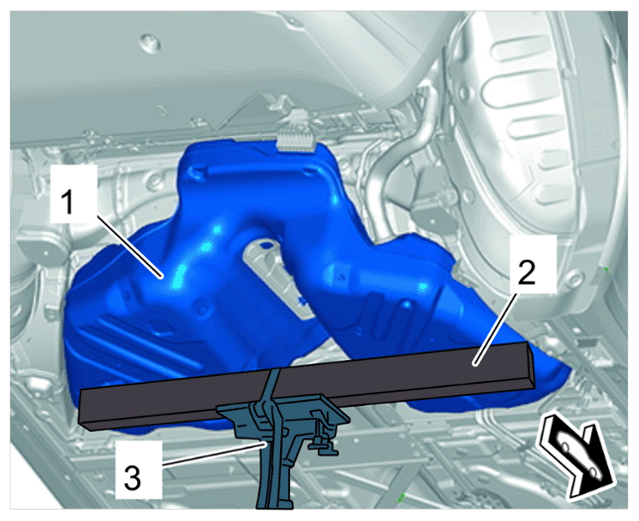

  13. Support the fuel tank -1-  using a suitable base -2-  and > VAS 6931 - Transmission and Engine Jack-3-  .
    G15879260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission jack on fuel tank

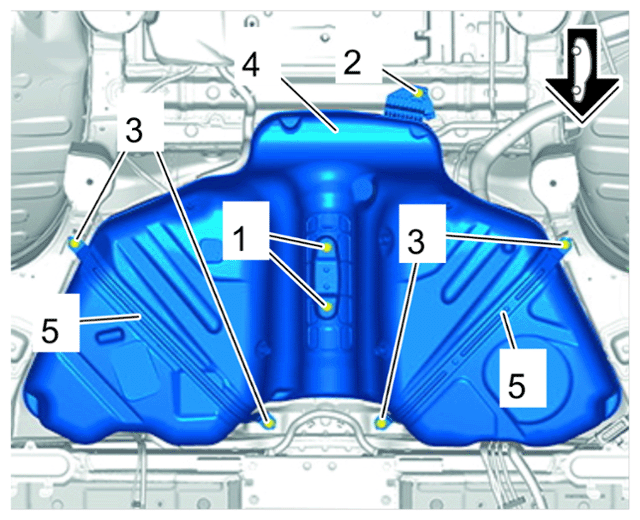

  14. Remove fuel tank -4-  .
    1. 14.1 Unscrew and remove screws -1 to 3-  .
    2. 14.2 Lower the fuel tank -4-  on > VAS 6931 - Transmission and Engine Jack  and guide it out of the vehicle together with the carbon canister line.
    3. 14.3 Remove fuel tank -4-  and restraining straps -5-  from the base and set it down on a suitable surface.
      G15879261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel tank screws
