Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cooling fan housing (radiator frame).

    > 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME)

  2. Remove ATF cooling line (front section).

    > 38621950 Removing and installing line for ATF cooling (front section)

  3. Remove drive belt for generator.

    > 137819 Removing and installing drive belt (V8 BiTurbo)

  4. Remove belt tensioner for air-conditioning compressor.

    > 137319 Removing and installing belt tensioner (air-conditioning compressor) (V8 biturbo)

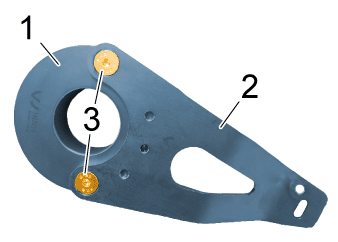

  5. Prepare > T40330 - counterhold  tool.
    1. 5.1 Fit adapter T40330/5 -1-  on brace T40330/1 -2-  .
    2. 5.2 Screw in and tighten screws -3-  .
G15823717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counter-hold tool
