Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove engine cover (design cover).

    > 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V8 BITURBO)

  2. Remove front trim panel (engine compartment) on the relevant side.

    > 700219 REMOVING AND REINSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)

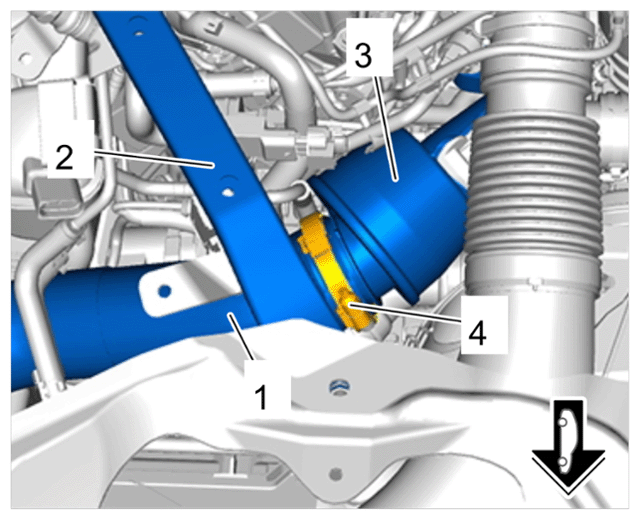

  3. Pull pressure hose -1-  off pressure pipe -3-  .
    1. 3.1 Loosen screw-type clamp -4-  .
    2. 3.2 Pull off pressure hose -1-  and clamp it behind the strut -2-  .
      G15879403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pressure hose
