Installing Pressure Pipe

Information

• O-rings must always be replaced.
• O-rings must be coated lightly with Kluber Syntheso Glep.

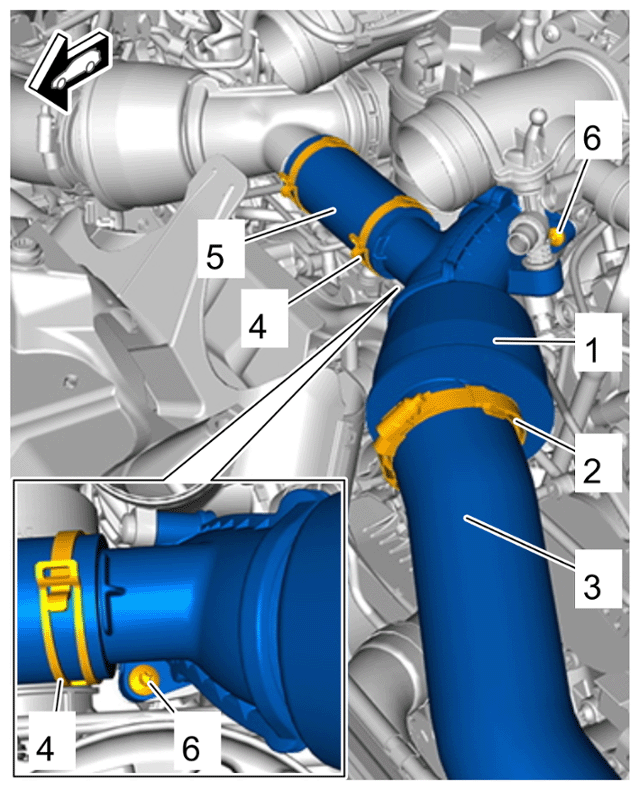

1. Install pressure pipe -1-  .
   1. 1.1 Replace O-ring on the pressure pipe -1-  .
   2. 1.2 Tighten screw-type clamp -2- on the pressure pipe -1- at the pressure hose -3- to  > Nm +/- 0.5 Nm (0.3 ftlb.)  .
   3. 1.3 Tighten screw-type clamp -4- on the connecting hose -5- at the pressure pipe -1- to  > Tightening torque 3.5 Nm (2.5 ftlb.)  .
   4. 1.4 Tighten screws -6-  to > Tightening torque 9 Nm (6.5 ftlb.)  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Right pressure pipe - V8 biturbo
