Removing Right Recirculating Air Valve
WARNING: This page is about a different variant/trim than selected.
Information
Use a ball-head hexagon socket (5 mm) with a minimum length of 100 mm for loosening and unscrewing the screws on the right recirculating air valve.
- Release vent line -1-
on the oil separator -2-
to make space.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vent line
- Remove right recirculating air valve -1-
.
- 2.1 Release and unplug electric plug connection -2-
.
- 2.2 Unscrew screws -3-
and remove recirculating air valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

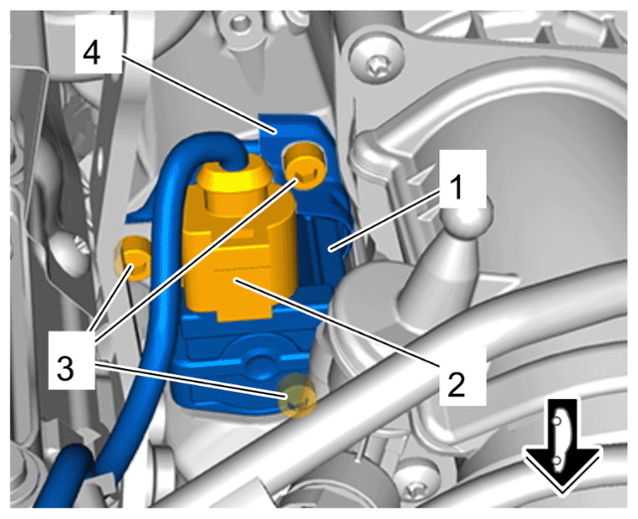

Recirculating air valve, right
