Installing Right Recirculating Air Valve
WARNING: This page is about a different variant/trim than selected.

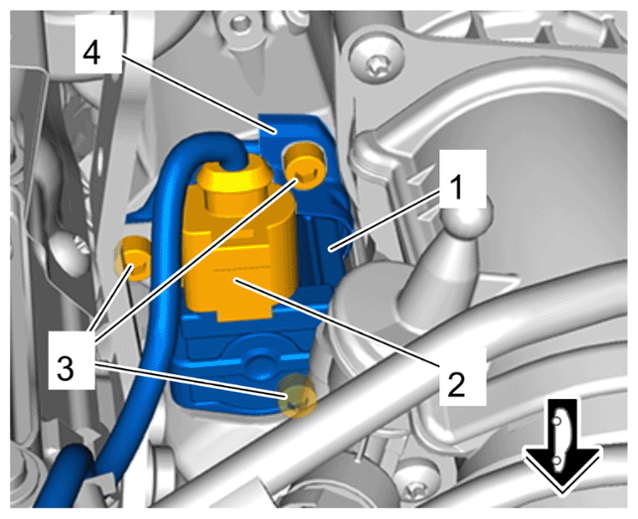

- Install right recirculating air valve -1-
.
- 1.1 Insert recirculating air valve -1-
.
- 1.1.1 Check that the heat shield -4-
is seated correctly.
- 1.2 Fit new screws -3-
.
- 1.3 Fit and tighten screws -3-
.
> Tightening torque 9 Nm (6.5 ftlb.)
- 1.4 Connect and lock electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Recirculating air valve, right

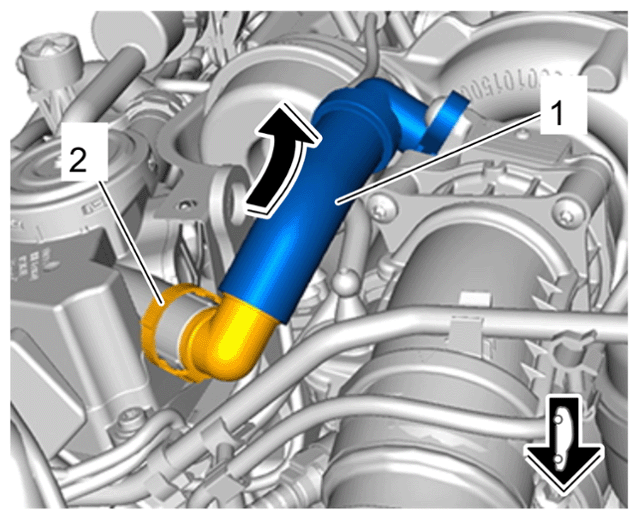

- Connect vent line -1-
to the oil separator -2-
until it locks with an audible click.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vent line
