Installing Turbocharger

Information

Replace sealing rings, gaskets and O-rings.

Information

• During installation, first install the turbocharger on bank 5-8 if it was removed.

1. Grease new O-rings on the oil and coolant lines with Kluber Syntheso Glep.
2. Fit new sealing ring -1-  on the exhaust manifold -2-  and position new connecting clamp -3-  on the flange.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

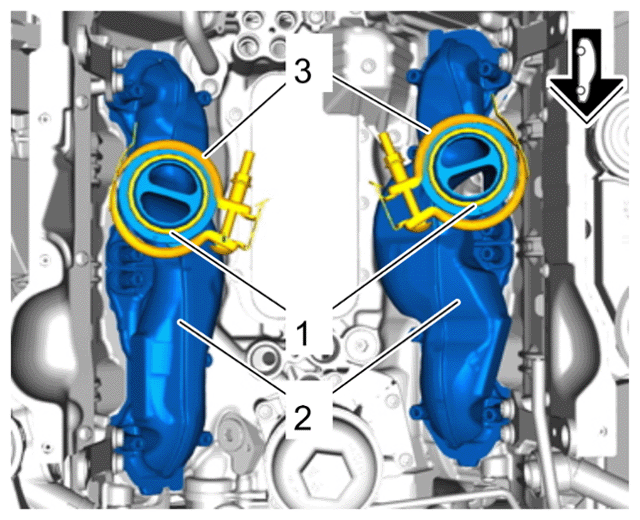

   Exhaust manifold seals

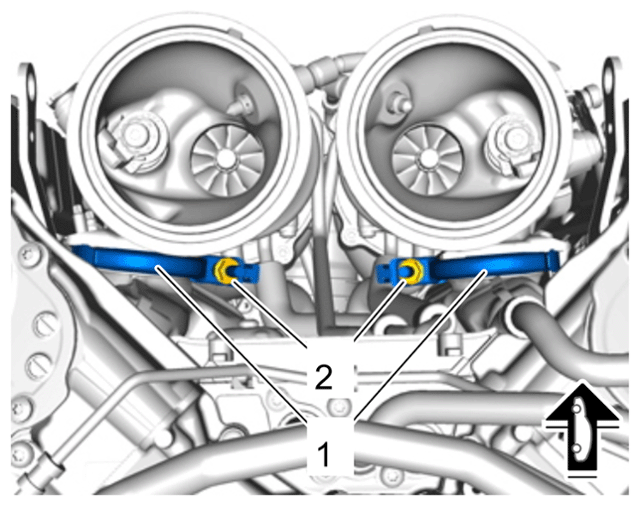

3. Position turbocharger with new connecting clamp -1-  on the exhaust manifold.
   1. 3.1 Tighten hexagon nut -2-  .

      > Tightening torque 25 Nm (19 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Connecting clamp securing turbocharger to exhaust manifold (view from rear)

4. Connect oil and coolant lines to the turbocharger and connection openings.

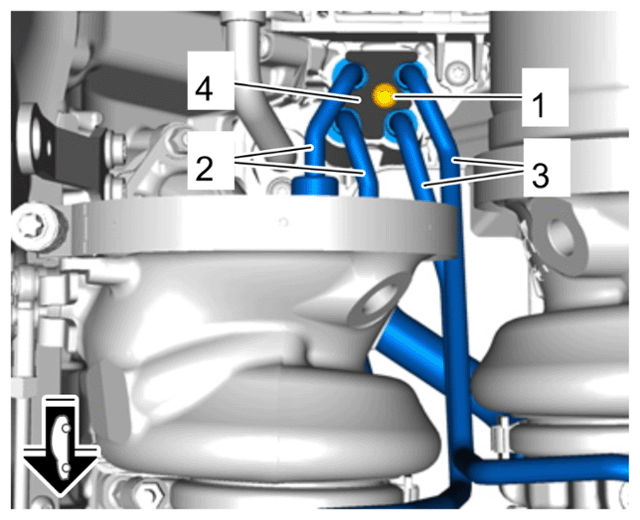

5. Fit retainer plate -4-  on the coolant lines -2 and 3-  and secure with screw -1-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for turbocharger coolant lines

6. Connect return oil pipes -1-  at the front.
   1. 6.1 First connect the line for the turbocharger 5-8, then the line with the connecting flange of the turbocharger 1-4.
   2. 6.2 Fit and tighten screw -2-  .

      > Tightening torque 9 Nm (6.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

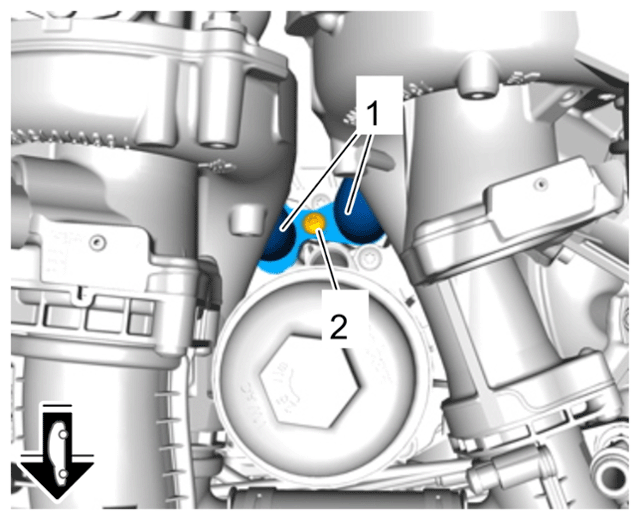

      Return oil pipes

7. Secure supply oil pipes -1-  at the front with screws.
   1. 7.1 Screws on turbocharger: > Tightening torque 9 Nm (6.5 ftlb.)
   2. 7.2 Screws on crankcase: > Tightening torque 9 Nm (6.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

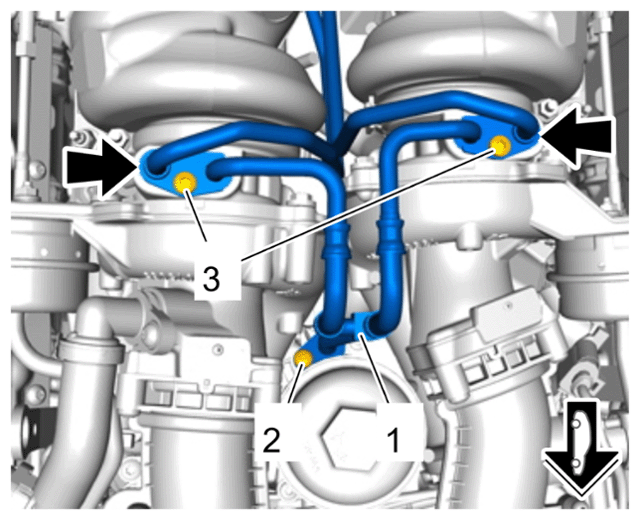

      Oil pipes supply line

8. Connect cable plug on diverter valve and vacuum line to vacuum modulator on the left turbocharger.
9. Connect vent line, vacuum line and cable plug on diverter valve on the right turbocharger.
10. For replacing turbochargers:  Install positive crankcase ventilation hose.

    > 105255 REPLACING POSITIVE CRANKCASE VENTILATION HOSE (V8 BITURBO)
