Component Overview
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

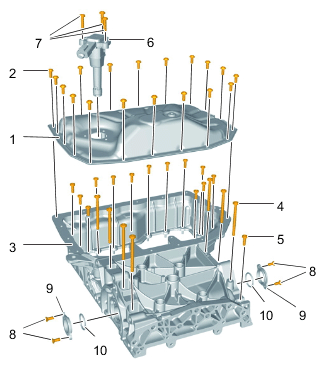

Component overview of oil pan
| 1 |
Oil pan/replace if damaged |
| 2 |
Screws, M6 x 16 |
| 3 |
Oil guide housing |
| 4 |
Screws, M6 x 80 |
| 5 |
Screws, M6 x 20 |
| 6 |
Oil level sensor |
| 7 |
Screws |
| 8 |
Screws |
| 9 |
Cover |
| 10 |
O-ring/replace |
