Removing Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Hot fluid
Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

Pull positive crankcase ventilation shut-off valve -1- from holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

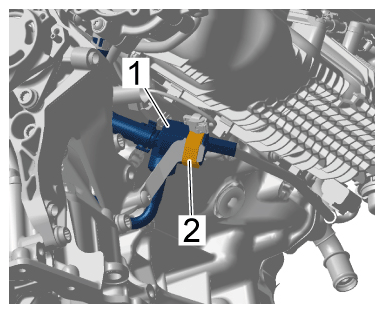

Pulling off positive crankcase ventilation shut-off valve
Remove holder for air-conditioning compressor -1- .
1. 2.1 Unscrew and remove screws -2- .

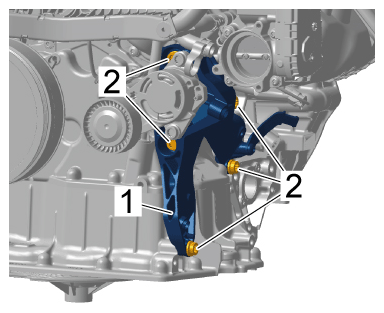

2. 2.2 Remove holder for air-conditioning compressor -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder for air-conditioning compressor
Remove oil intake tube -1- .
1. 3.1 Unscrew and remove screws -2- .
2. 3.2 Pull oil intake tube -1- off the oil pump.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil intake tube
Disconnect wire harness -2- .
1. 4.1 Release and disconnect electric plug connection -1- .

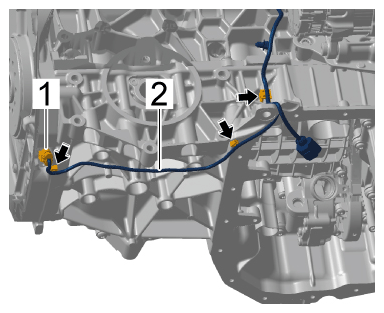

2. 4.2 Expose wire harness -2- (-arrows- ) and set it aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection
Unscrew and remove screws -30 to 23- in descending sequence.

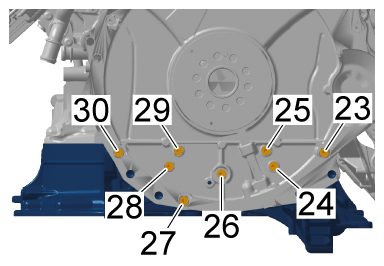

Fig 1: Oil Guide Housing Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Unscrew and remove screws -21 to 1- in descending sequence.

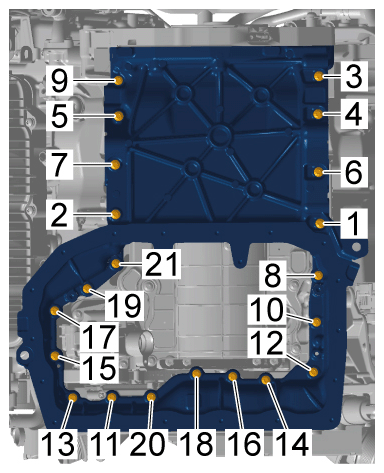

Fig 2: Oil Guide Housing Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

Information

To prevent dirt from getting into the lubrication system, open parts of the engine must be covered.
Remove oil guide housing -1- .
1. 7.1 Screw in screws -2- as far as they will go.

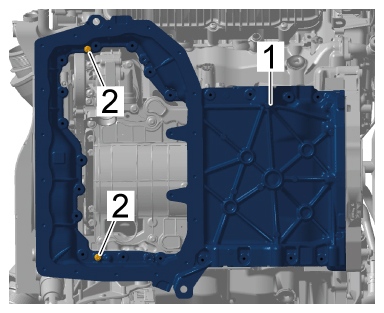

2. 7.2 Screw in screws -2- crosswise by half a turn until the oil guide housing -1- is released.

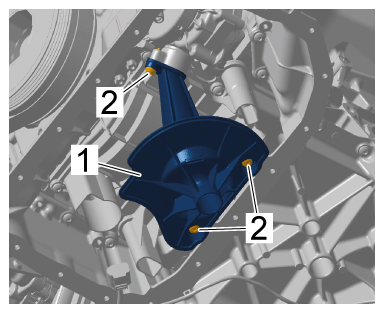

3. 7.3 Unscrew screws -2- and remove oil guide housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil guide housing
