Installing Oil Guide Housing

Information

The help of another person is required.

Information

• Replace seal.

Information

To prevent dirt from getting into the lubrication system, open parts of the engine must be covered.

1. Remove old sealant and residual sealant from the grooves and sealing faces on the oil guide housing and crankcase. Use a rotating plastic brush, for example, to do this.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

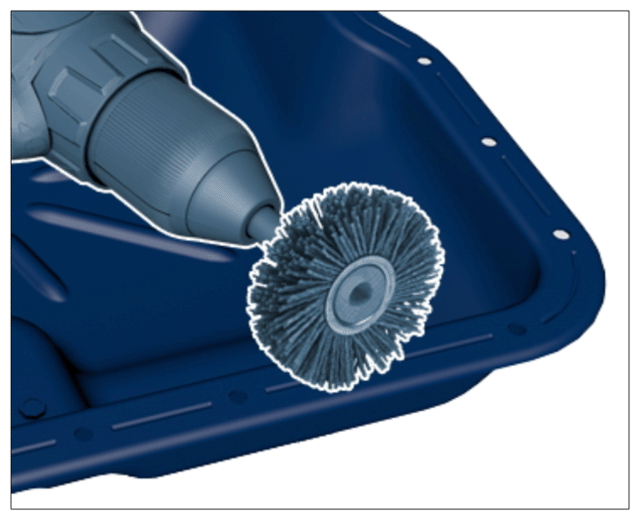

   Cleaning sealing faces with a plastic brush

   Information

   Sealing faces must be free of oil and grease.

2. Clean the sealing faces of the new oil guide housing.

   Information

   Check best-before date on the new sealant.

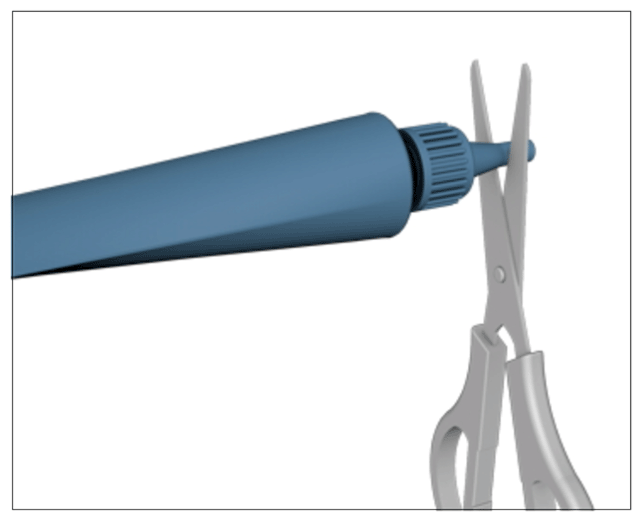

3. Cut off the nozzle on the tube at the front marking (nozzle diameter is approx. 2.5 mm).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting off nozzle on tube

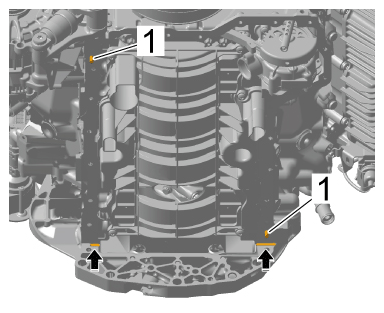

4. Pull off dowel sleeves -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling off dowel sleeve

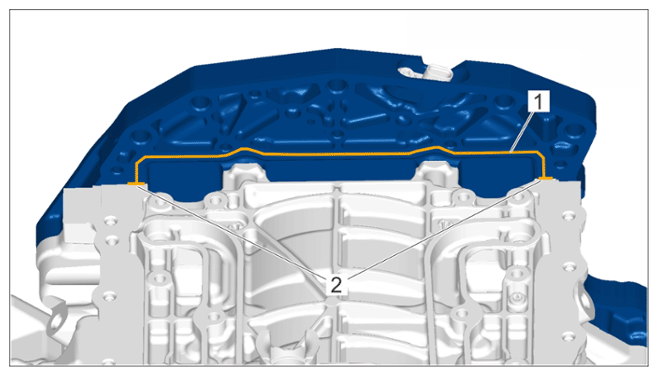

5. Apply sealant to the lower chain housing cover.
   1. 5.1 Apply a bead of sealing compound -1-  .
   2. 5.2 Apply sealant at the joints between the crankcase and lower chain housing cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealant on lower chain housing cover

   Information

   • The bead of sealant must not be thicker than the specified thickness because if it is, excess sealant can get into the oil pan and block the strainer in the oil pump.
   • Sealant bead thickness: 3.0 mm.
   • Components must be installed within 5 minutes of applying the sealant.

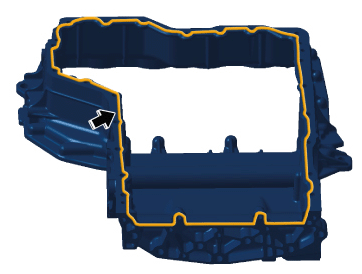

6. Apply a bead of sealant -arrow-  to the clean sealing face of the oil guide housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying sealant

7. Carefully fit oil guide housing and position it at an angle from below on the sealing face on the crankcase and lower timing chain cover.

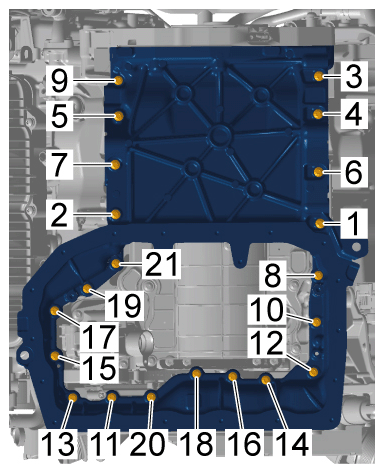

8. Screw in and tighten screws -1 to 21-  in ascending sequence > Tightening torque 9 Nm (6.5 ftlb.)  > Tightening torque 9 Nm (6.5 ftlb.)
   Fig 1: Oil Guide Housing Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in screws

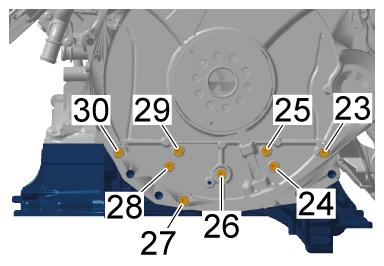

9. Screw in and tighten screws -23 to 30-  in ascending sequence > Tightening torque 9 Nm (6.5 ftlb.)
   Fig 2: Oil Guide Housing Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in screws

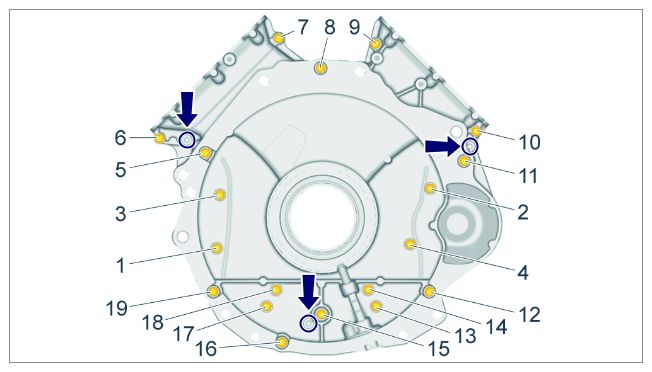

   Fig 3: Chain Housing Cover Screws Tightening Sequence - V8 Turbo

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for chain housing cover - V8 Turbo

   1-19	Tightening sequence for chain housing cover

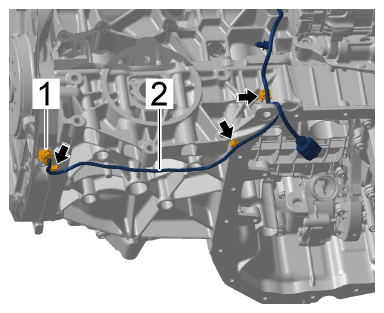

10. Secure wire harness -2-  .
    1. 10.1 Plug in electric plug connection -1-  until it locks securely.
    2. 10.2 Install wire harness -2-  (-arrows-  ).

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting electric plug connection

11. Install oil intake tube -1-  .
    1. 11.1 Install oil intake tube -1-  with a new seal on the oil pump.
    2. 11.2 Screw in and tighten screws -2-  > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

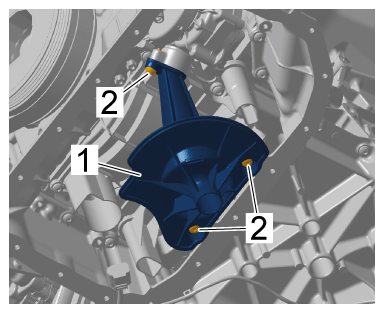

Installing oil intake tube
