Subsequent Work

WARNING: This page is about a different variant/trim than selected.

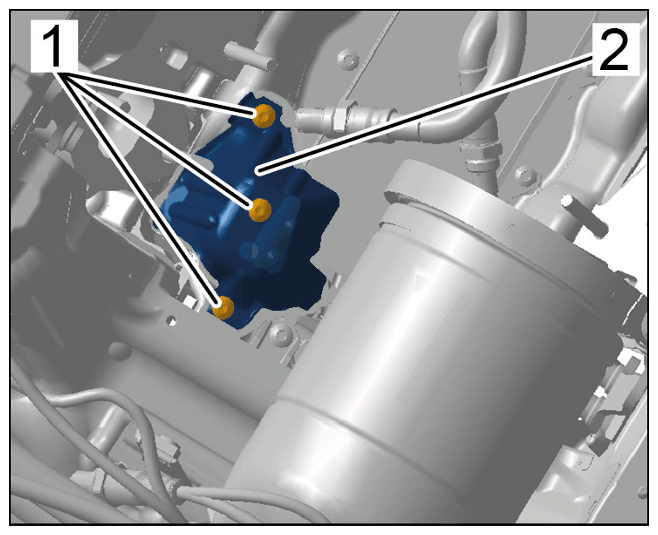

Install rear part of shield -2- .
1. 1.1 Position rear part of shield -2- .
2. 1.2 Screw in and tighten screws -1- in rear part of shield -2- > Tightening torque 9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part of shield
Install catalytic converters.
> 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER (V8)
Installing both turbochargers.
> 213019 REMOVE AND INSTALL TURBOCHARGER
Check engine oil.
> Checking engine oil
Check cooling system.
> 190101 CHECKING COOLING SYSTEM
