Removing Oil Cooler

WARNING: This page is about a different variant/trim than selected.

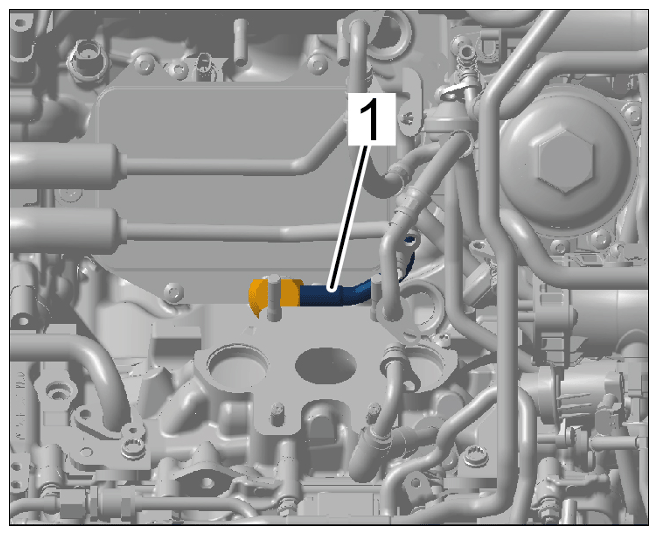

Disconnect positive crankcase ventilation hose -1- and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positive crankcase ventilation hose
Remove oil cooler -9- .
1. 2.1 Unscrew and remove screws -1 to 8- .
  Information

  Risk of contaminating the lubricating system
  - Cover open parts of the cylinder head.
  Information

  Risk of contaminating the oil cooler.

  Cover open parts of the oil cooler.
2. 2.2 Remove oil cooler -9- .

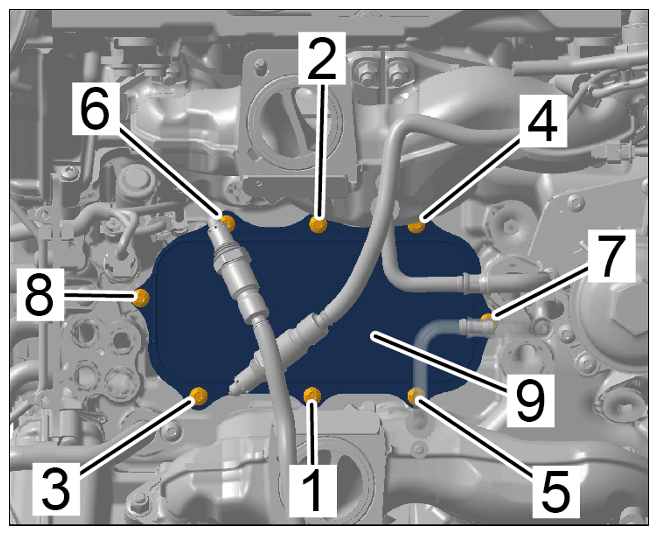

Fig 1: Oil Cooler Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil cooler
