Installing Oil Cooler

Information

Risk of contaminating the lubricating system

• Cover open parts of the cylinder head.

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Fit new  seal.
   2. 1.2 Screw in screws in the sequence -1 to 8-  and tighten in steps in the indicated sequence > Initial tightening 5 Nm (3.5 ftlb.)  > Final tightening + 9 Nm (6.5 ftlb.)

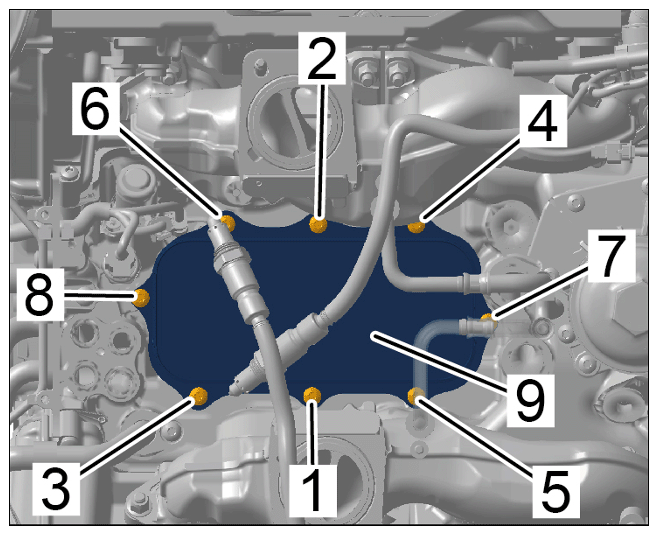

Fig 1: Oil Cooler Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence
