Removing Piston Spray Nozzle Control Valve

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield -2-  .
    1. 1.1 Unscrew screws -1-  .
    2. 1.2 Remove heat shield -2-  .

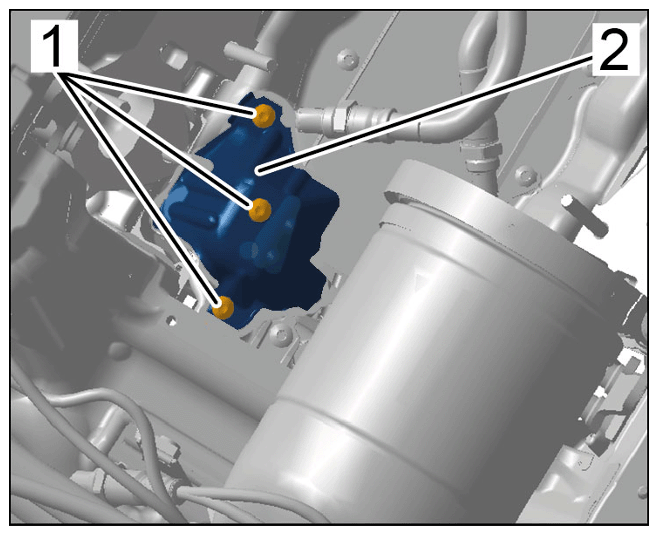

      G15823902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Heat shield

  2. Remove piston spray nozzle control valve -1-  .
    1. 2.1 Release and unplug electric plug connection -2-  .
    2. 2.2 Unscrew and remove screw -3-  .
    3. 2.3 Remove piston spray nozzle control valve -1-  .

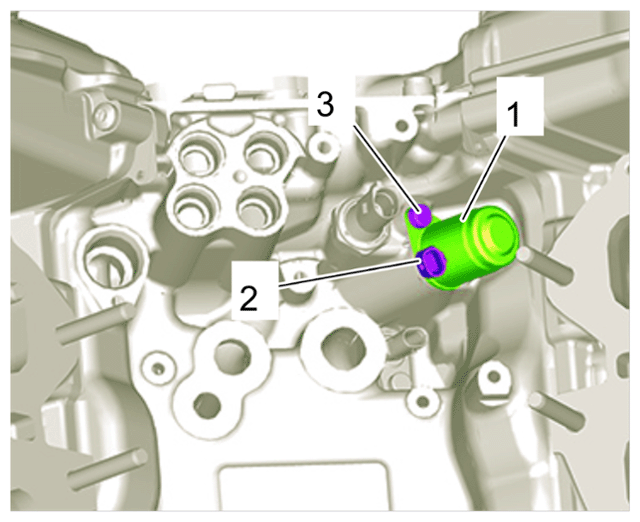

      G15823903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Piston spray nozzle control valve
