Removing Oil Pressure Switch

WARNING: This page is about a different variant/trim than selected.

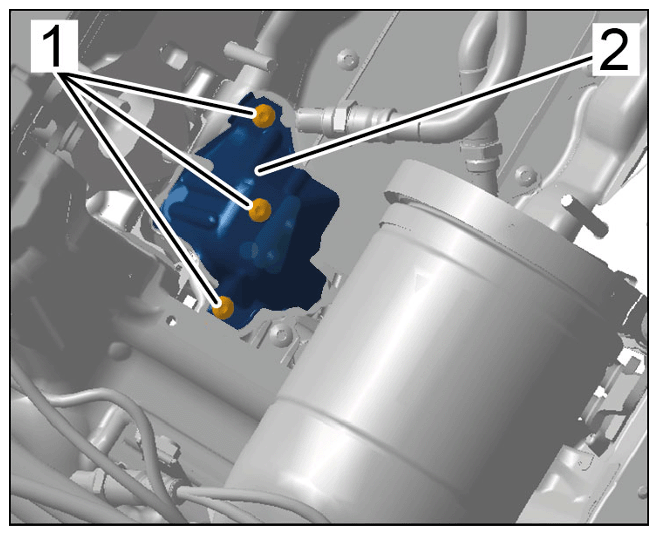

Unscrew screws -1- and remove heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing heat shield

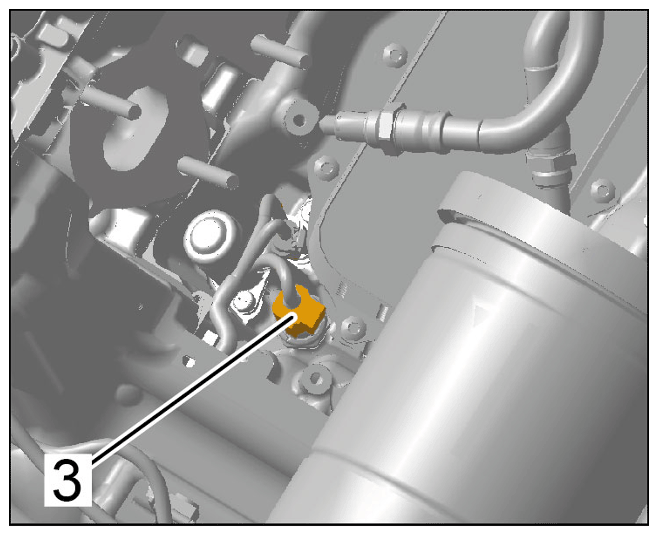

Release and disconnect electric plug connection -3- on the oil pressure switch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection
Place a cloth underneath to catch emerging engine oil.

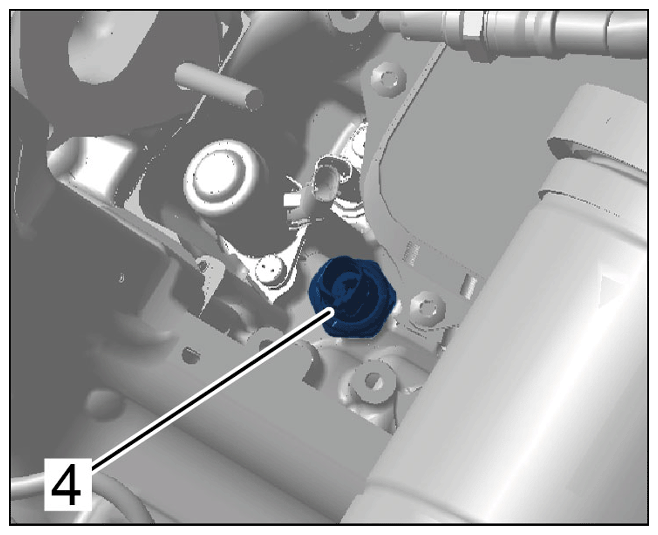

Unscrew oil pressure switch -4- using > T40175 - articulated wrench .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil pressure switch
