Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

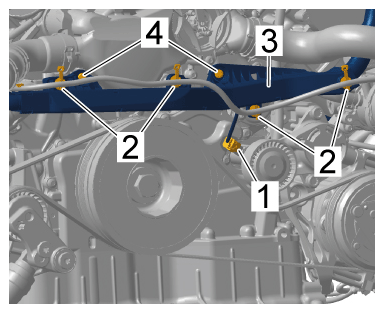

| Screw on front cable duct on engine | Item 4 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Screw on front cable duct on engine |
|||||
| Intake pipe to intake scoop | Screw-type clamp | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||
| Oil pressure sensor | Tightening torque | 20 Nm (15 ftlb.) |
