Removing Oil-Pressure Sender

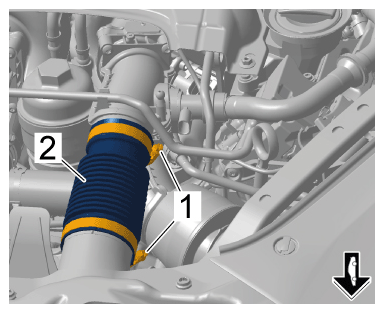

1. Loosen clamps -1-  and remove suction hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Suction hose

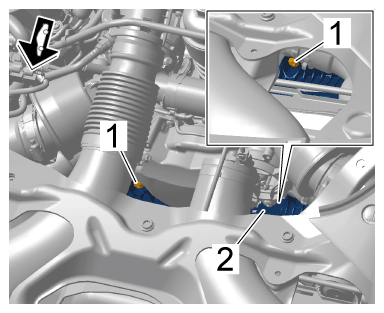

2. Unscrew screws -1-  and press cable duct -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct

   Information

   Re-install oil-pressure sender as quickly as possible to avoid losing too much oil.

3. Remove oil-pressure sender.

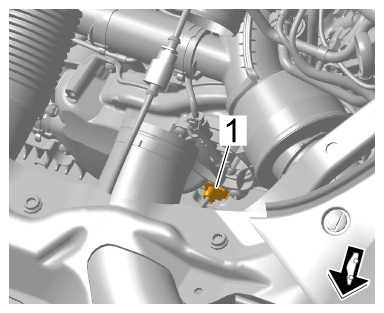

   1. 3.1 Release and unplug electric plug connection -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection for oil-pressure sender

   2. 3.2 Collect emerging engine oil.

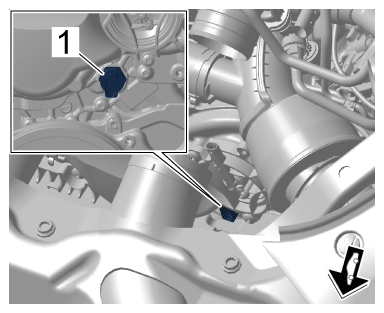

   3. 3.3 Unscrew oil-pressure sender using > T40363 - socket wrench a/f 24  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil-pressure sender
