Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cooling fan housing (radiator frame).

    > 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME)

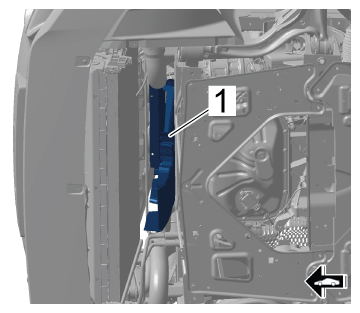

  2. Remove air guide -1-  in a downward direction.
G15823883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
