Drain Engine Oil

Information

• Only use engine oils that have been tested and approved by Porsche AG.
• Dispose of used oil and oil filter in accordance with legal requirements in your country.

1. Open the bonnet.
2. Open the cap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

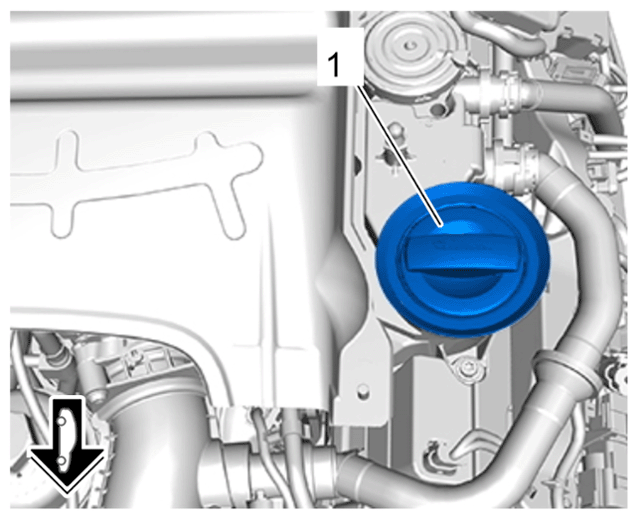

   Oil filler cap

3. Unscrew oil drain plug -1-  on the oil pan -2-  and drain engine oil into a suitable container.
4. Screw in and tighten oil drain plug -1-  with new sealing ring -3-  .

   V6 Turbo:  > Tightening torque 30 Nm (22 ftlb.)

   V8 Turbo:  > Tightening torque 30 Nm (22 ftlb.)

   V8 Diesel:  > Tightening torque 30 Nm (22 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

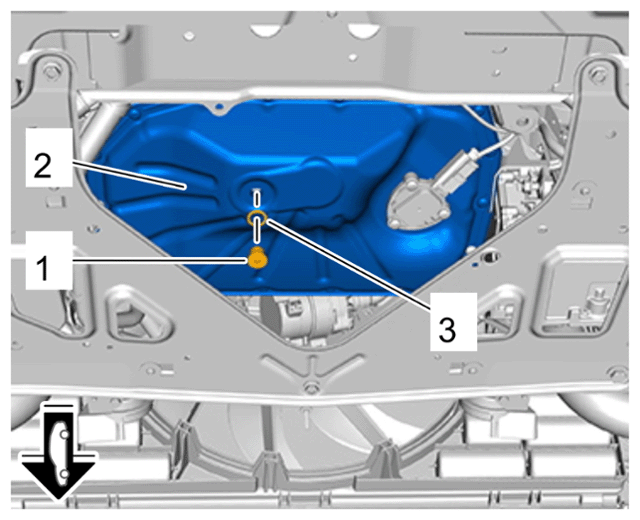

   Oil drain plug
