Removing Brake Booster Vacuum Pump

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

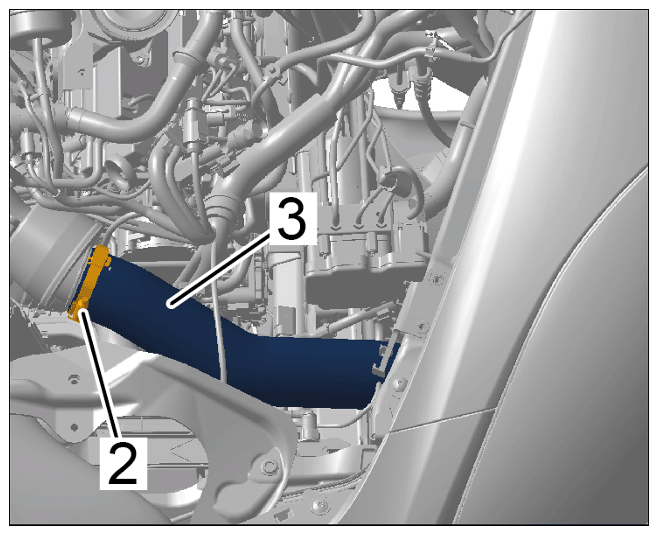

Open clamp -2- , pull off charge air hose -3- and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Setting charge air hose aside

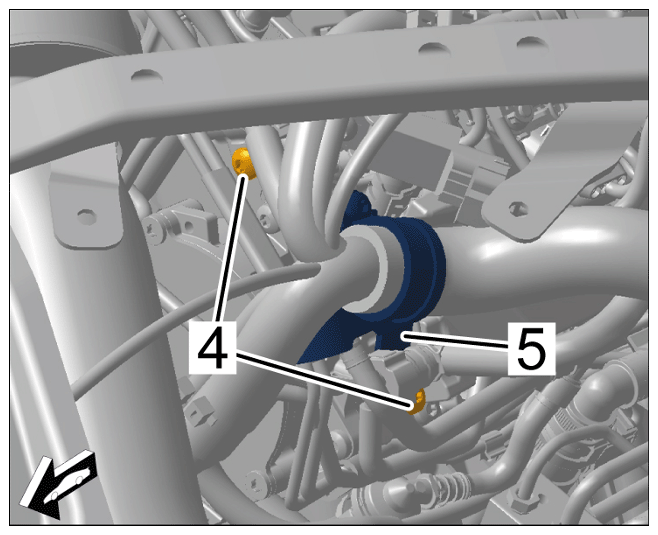

Unscrew screws -4- and pull holder -5- over brake booster vacuum pump with electric lines as far forward as required until the hose connection is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening holder

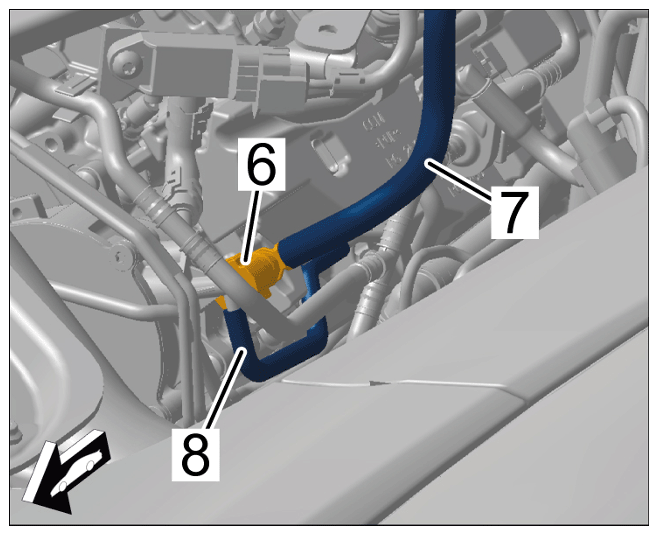

Disconnect plug connection -6- and move brake booster line -7- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moving brake booster line aside
Disconnect vacuum hose -8- from brake booster vacuum pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting vacuum hose

Information

Place a suitable cloth underneath to catch escaping oil when pulling off the vacuum pump.

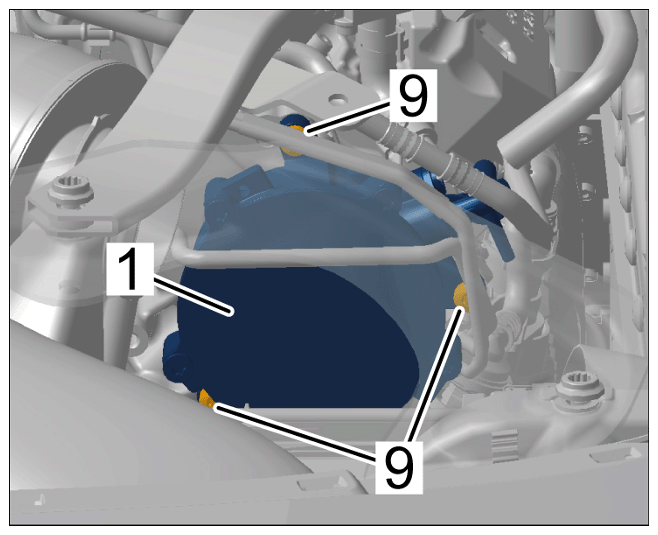

Unscrew screws -9- and remove brake booster vacuum pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing brake booster vacuum pump
