Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

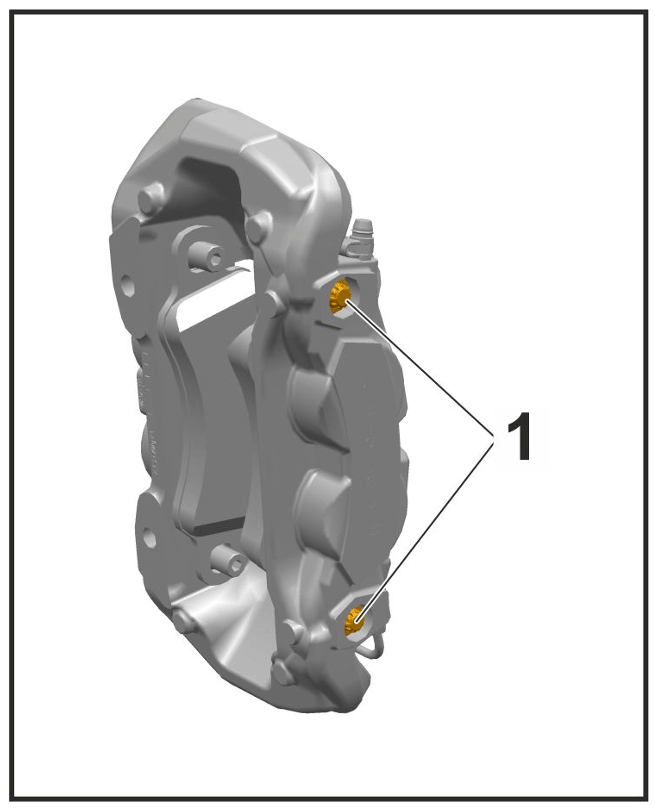

| Brake calliper screws on pad retaining pin | The brake calliper screws may only be replaced in the event of a complaint (corrosion)/always replace screws after dismantling! | Initial tightening | 10 Nm (7.4 ftlb.) | ||
|
Brake calliper screws on pad retaining pin |
|||||
| Brake calliper screws on pad retaining pin | The brake calliper screws may only be replaced in the event of a complaint (corrosion)/always replace screws after dismantling! | Final tightening | + 30° | + 4° | |
|
Brake calliper screws on pad retaining pin |
|||||
