Installing Tie-Rod Ball

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

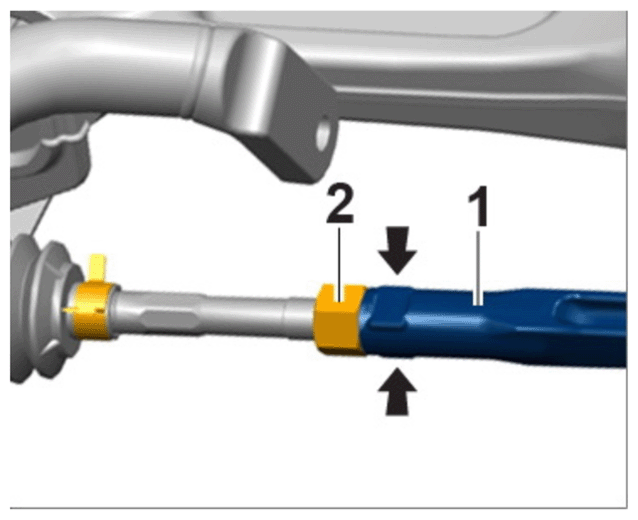

Securing tie-rod ball

1. 1.1 Tighten lock nut -2-  > Tightening torque 90 Nm (67 ftlb.)
2. 1.2 Counter the tie-rod ball -1-  at the flattened areas -arrows-  using a suitable open-ended wrench.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

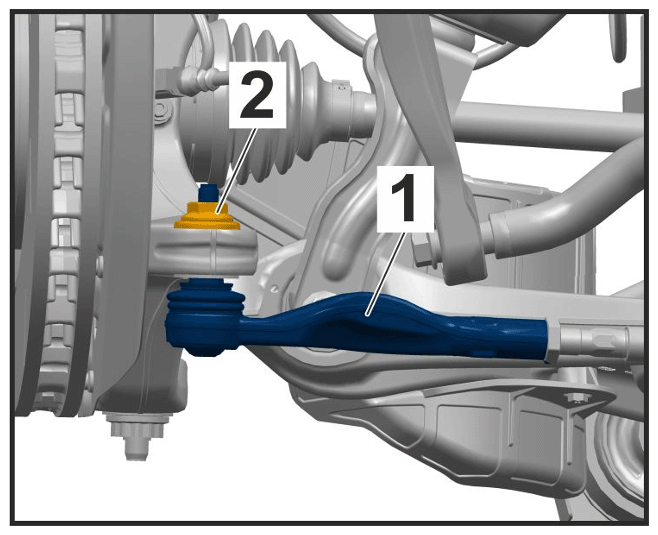

Mounting for tie-rod ball on wheel bearing housing

1. 2.1 Tighten nut -2-  > Tightening torque 85 Nm (63 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

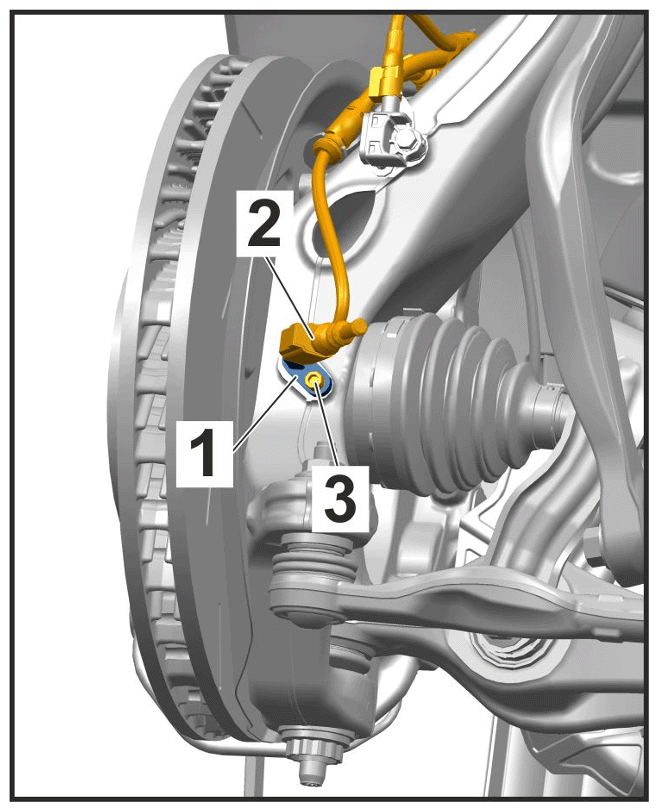

Mounting for front speed sensor
