Removing Tie Rod
WARNING: This page is about a different variant/trim than selected.

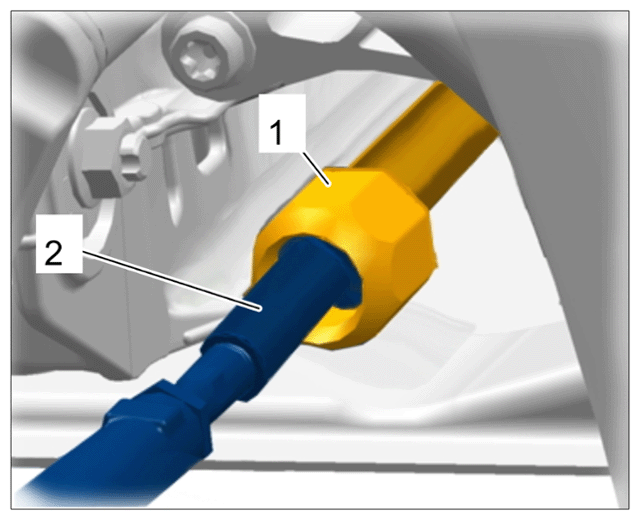

- Unscrew octagon -1-
on the ball joint of the tie rod -2-
from the rack-and-pinion using > V.A.G 1923 - Open end spanner insert, a/f 38
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Detaching ball joint
- If the tie rod is replaced, the marking for the old tie rod on the wheel side must be copied to the new tie rod.
