Installing Tie Rod
WARNING: This page is about a different variant/trim than selected.

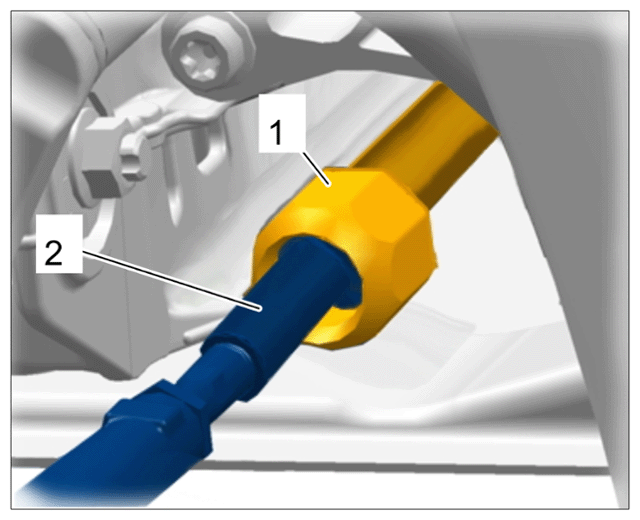

- Tighten octagon -1-
on the rack-and-pinion using > V.A.G 1923 - Open end spanner insert, a/f 38
> Tightening torque 90 Nm (66 ftlb.)
Ensure that no damage (scoring or similar damage) is caused to the rack-and-pinion.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Securing ball joint
