Installing Bellows For Steering-Gear Housing

Information

During fitting, make sure that the steering-gear housing bellows is not twisted and that the clamp lugs are easy to reach.

1. Fit inner clamp using > V.A.G 1275A - Hose clip pliers  > Inner clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

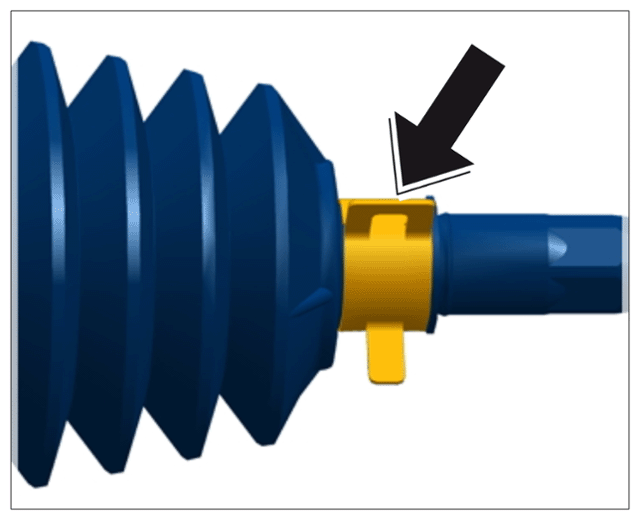

   Inner clamp

2. Fit outer clamp -arrow-  using > VAS 6890 - Spring Band Clamp Pliers  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

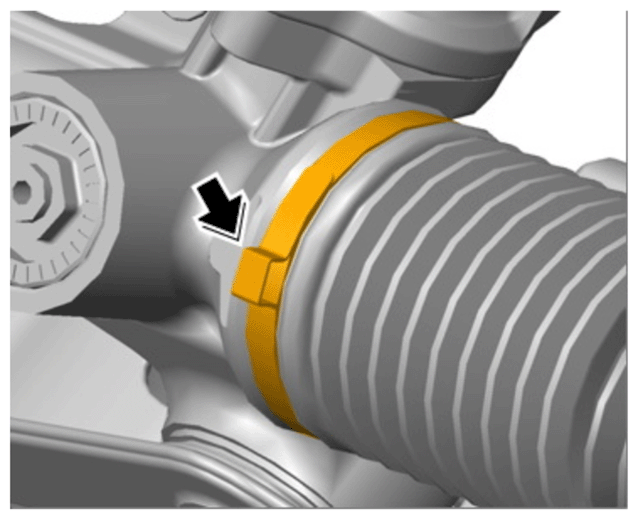

   Outer clamp
