Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove steering-column switch.

    > WM, 945019 REMOVING AND INSTALLING STEERING-COLUMN SWITCH

  2. Remove trim panel under dashboard on driver's side.

    > 701919 REMOVING AND INSTALLING TRIM PANEL UNDER DASHBOARD

  3. Remove knee airbag on driver's side.

    > 697819 REMOVING AND INSTALLING KNEE AIRBAG ON DRIVER'S SIDE

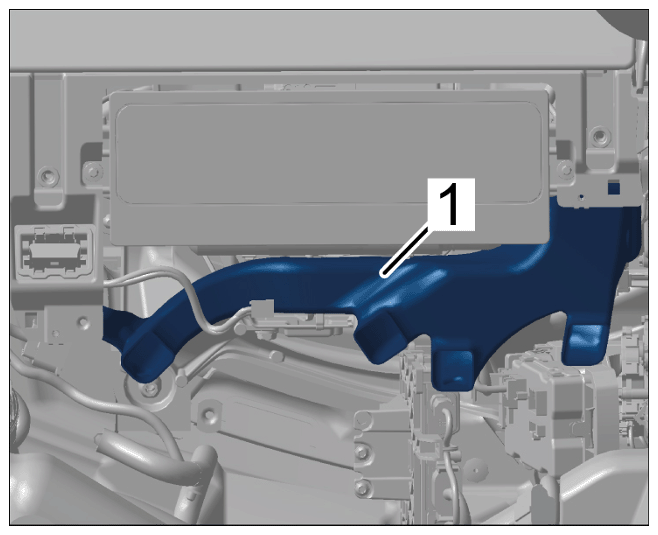

  4. Remove left footwell outlet vent -1-  .
    G15861192Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing left footwell outlet vent
