Installing Steering Column

WARNING: This page is about a different variant/trim than selected.

Information

Replace screw for Centre of steering column (universal joint).

Installation is performed in reverse order. Pay particular attention to the following:
Screw in and tighten screw securing steering column to Centre of steering column (universal joint) > Initial tightening 20 Nm (15 ftlb.) + > Final tightening torque angle + 90°

Screw in and tighten nuts securing steering column to retaining frame in tightening sequence -4 to 7- > Tightening torque 20 Nm (15 ftlb.)

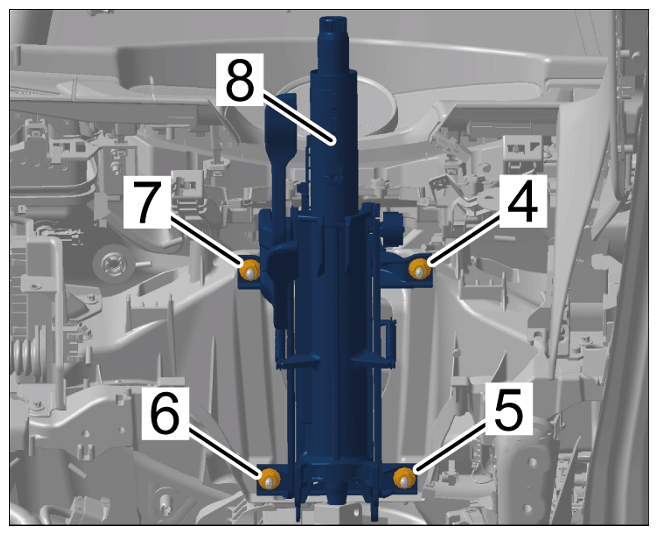

Fig 1: Steering Column Nuts Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nuts
