Removing Steering Column Casing

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew screws -2-  and unclip trim panel -3-  .
    G15861189Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening trim panel

  2. Turn the steering wheel and unclip upper part of steering column casing -1-  through the openings -2-  using a suitable tool.

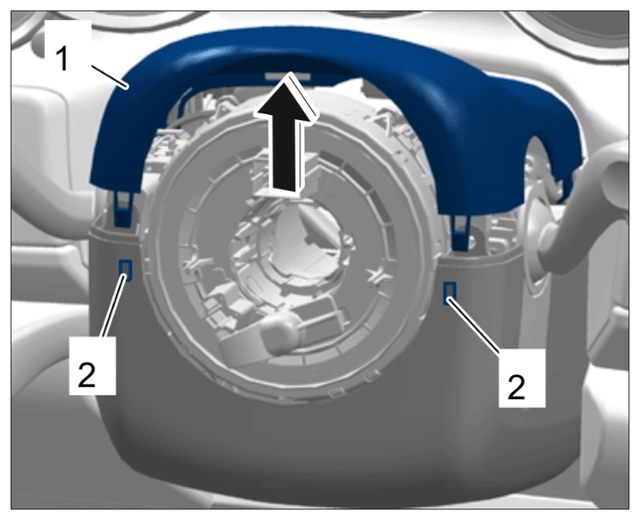

    G15861190Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping upper part

  3. Disengage restraining straps on rear steering column casing and remove casing.

    Vehicles with electrically adjustable steering column:

  4. Unclip switch for steering column adjustment, disconnect electric plug connection and remove switch.

    Vehicles with manually adjustable steering column:

  5. Move lever for steering column adjustment downwards.
  6. Turn the steering wheel and unscrew screws -4-  .
  7. Unscrew screw -5-  and remove lower part of steering column casing -1-  .

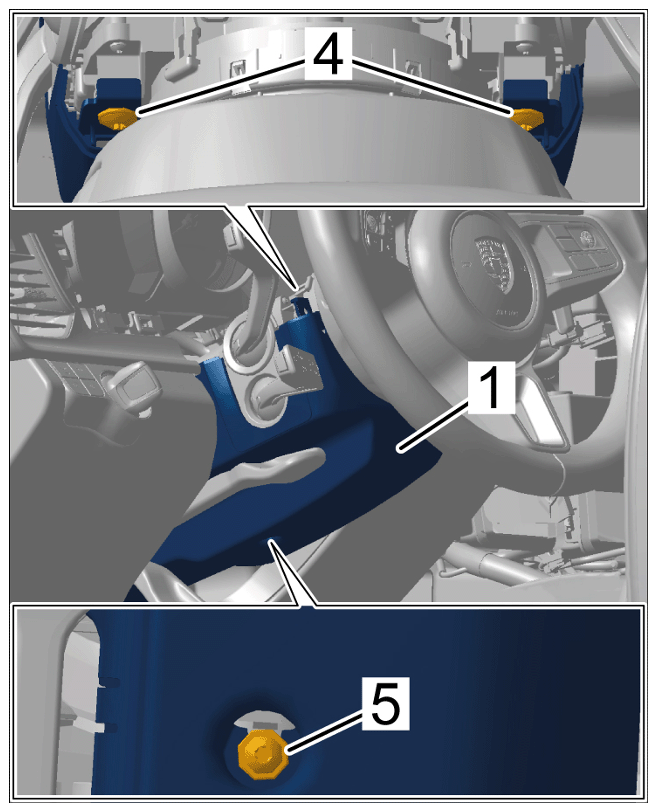

    G15861191Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lower part
