Disassembling Steering Wheel

WARNING: This page is about a different variant/trim than selected.

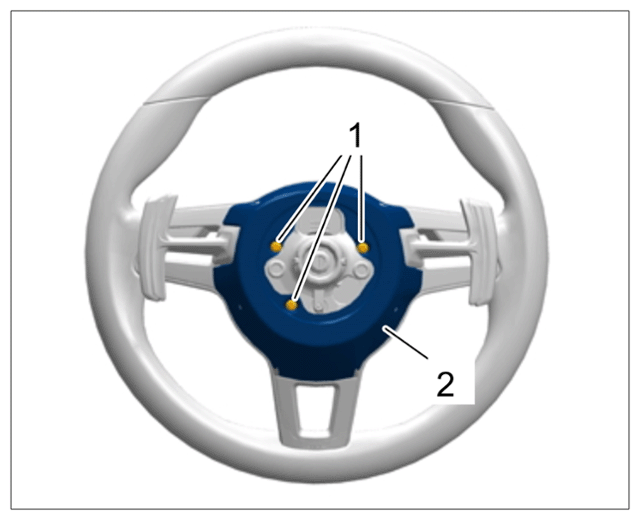

  1. Unscrew screws -1-  and remove cover -2-  .
    G15861171Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear cover

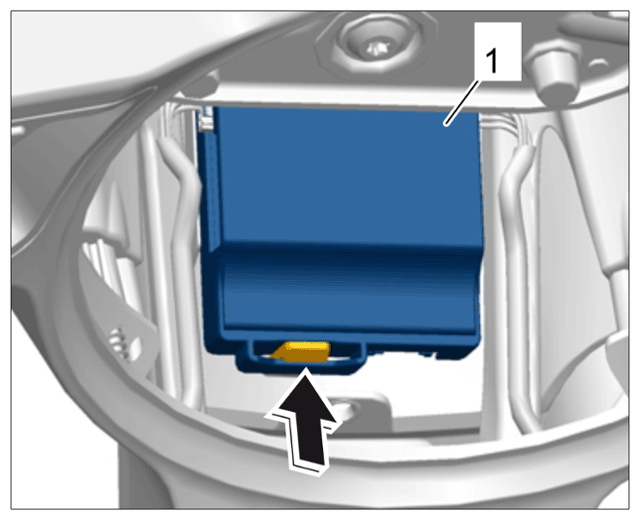

  2. Release control unit -1-  and pull it forward slightly.
    G15861172Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit mounting

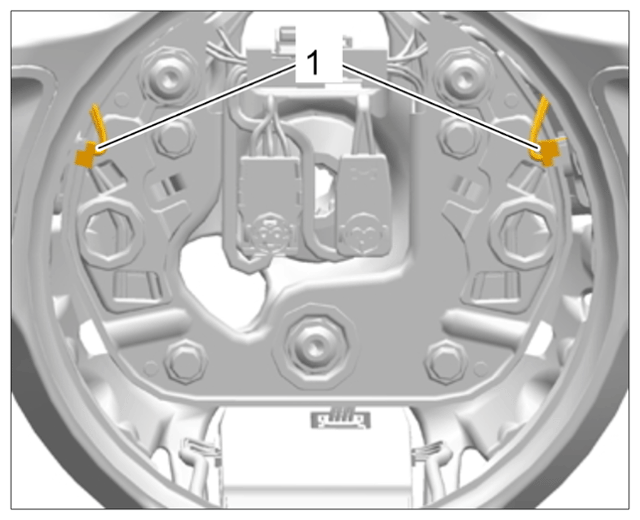

  3. Release and disconnect electric plug connections -1-  for the rocker switches.
    G15861173Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connections for rocker switches

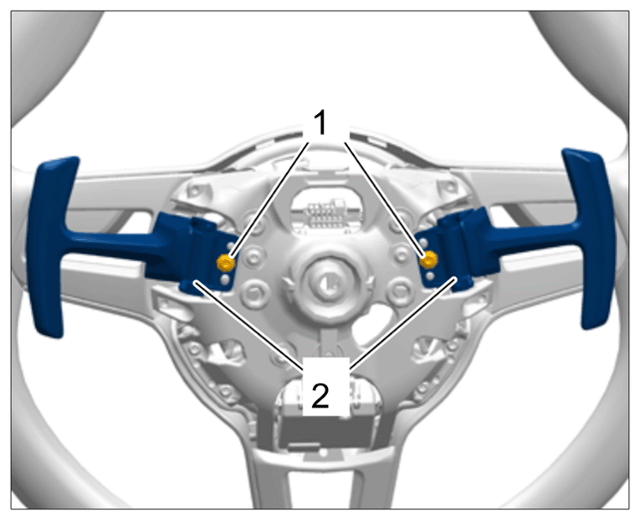

  4. Unscrew screws -1-  and remove rocker switches -2-  .
    G15861174Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rocker switches

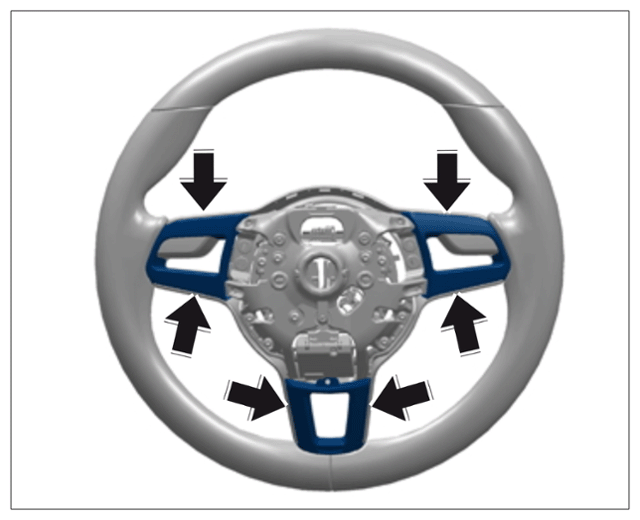

  5. Unclip rear trims using a suitable tool -arrows-  .
    G15861175Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear trims

  6. Only for vehicles with heated steering wheel:

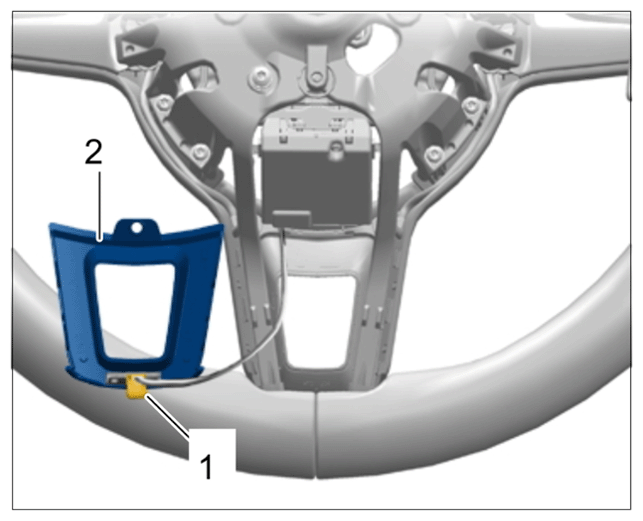

    Disconnect electric plug connection -1-  from rear trim -2-  .

    G15861176Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection for heated steering wheel

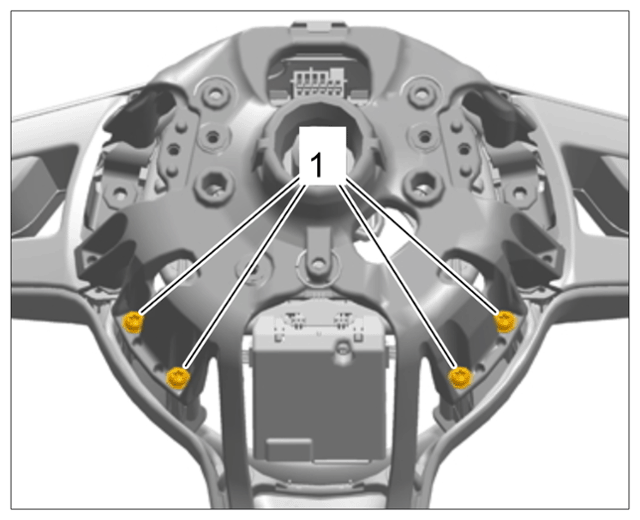

  7. Unscrew and remove screws -1-  .
    G15861177Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for main cover

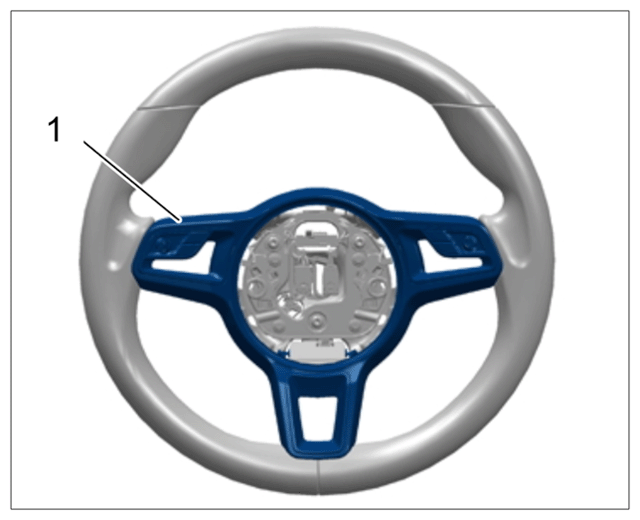

  8. Unclip main cover -1-  .
    G15861178Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening main cover

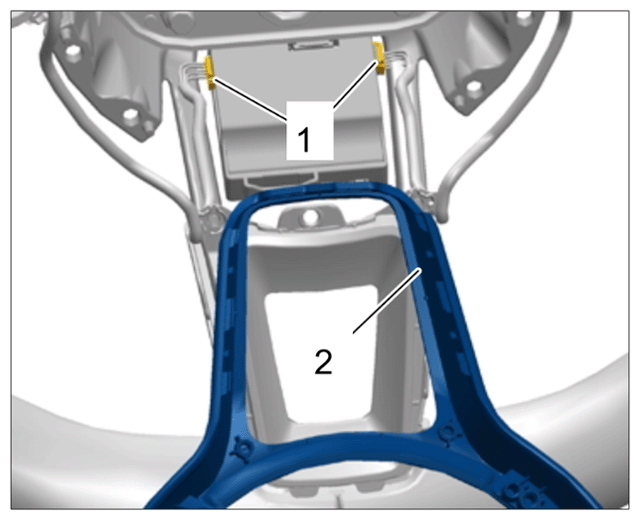

  9. Release and disconnect electric plug connections -1-  and remove main trim -2-  .
    G15861179Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing main cover

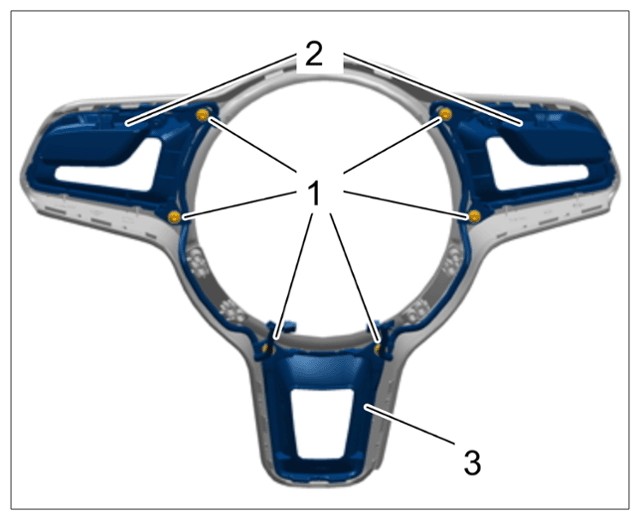

  10. Unscrew screws -1-  and remove multi-functional switch -2-  and front trim -3-  .
    G15861180Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

    Only for vehicles with Mode switch:

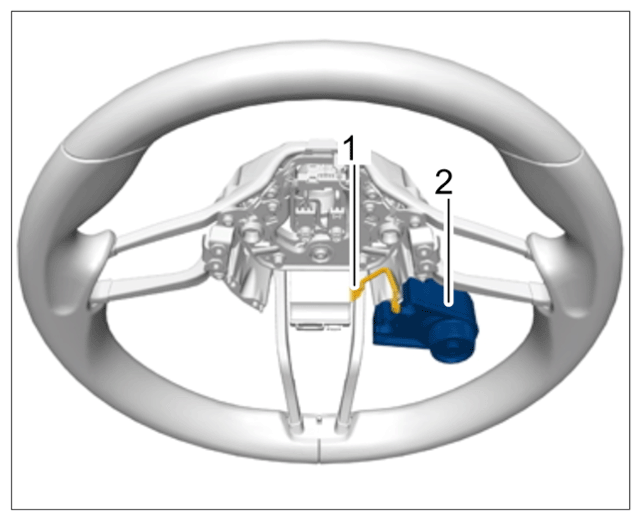

  11. Release and disconnect electric plug connection -1-  and remove Mode switch -2-  from the steering wheel.
    G15861181Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mode switch

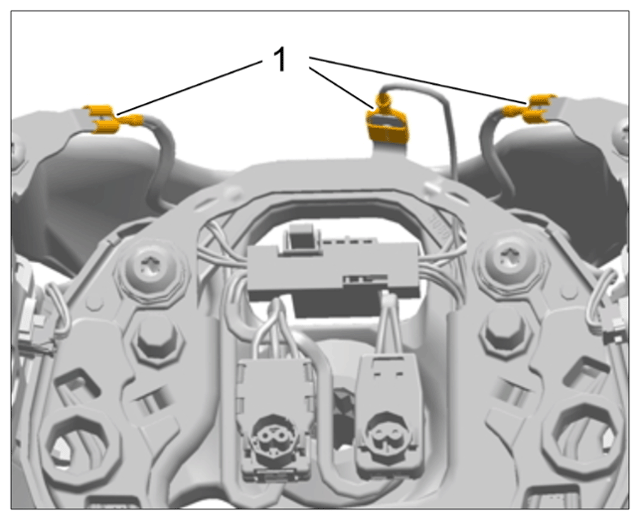

  12. Disconnect ground contacts -1-  .
    G15861182Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting ground contacts

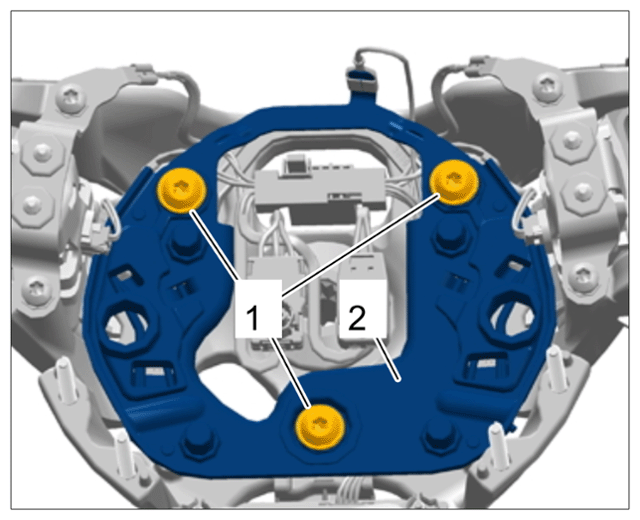

  13. Unscrew screws -1-  and remove contact bridge -2-  .
    G15861183Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for contact bridge

    Information

    The number of electric plug connections will vary depending on equipment.

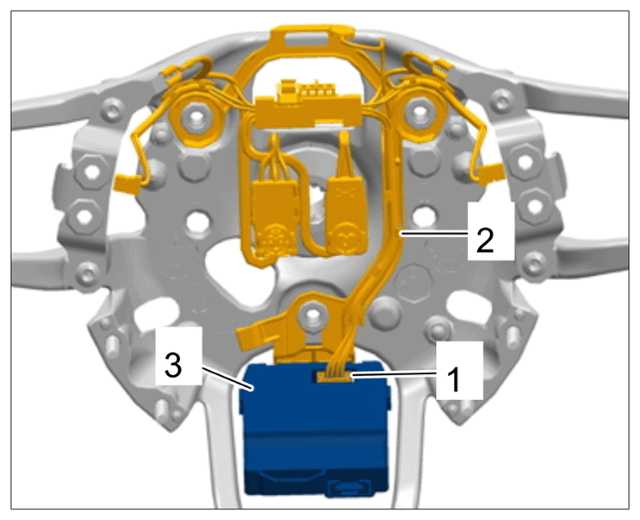

  14. Release and disconnect electric plug connection -1-  from the control unit -3-  .
    G15861184Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection from control unit

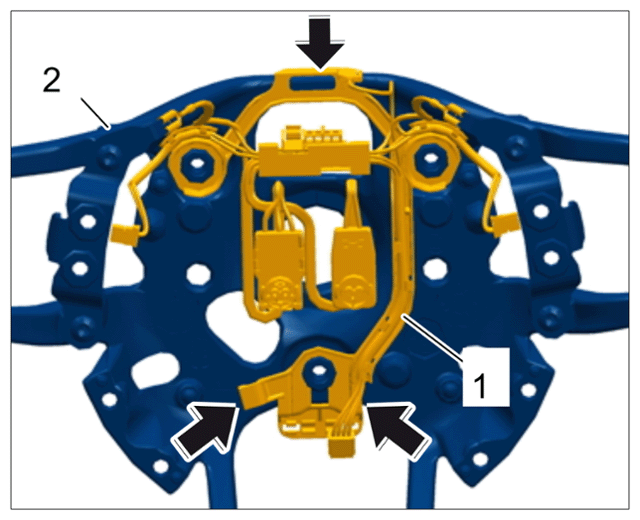

  15. Release wire harness -1-  from the steering wheel skeleton -2-  (-arrows-  ) and remove it.
    G15861185Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wire harness
