Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install heat shield -1-  .

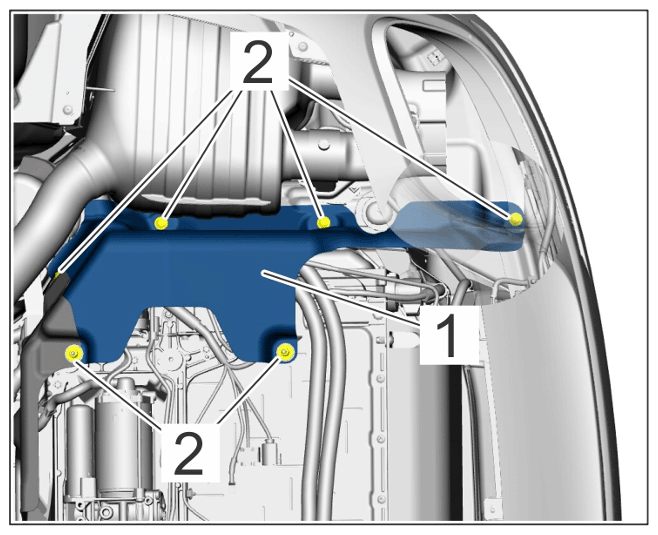

    G15824138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for high-voltage battery

    1. 1.1 Tighten screws -2-  .
  2. Install left tailpipe cover.

    > 263519 REMOVING AND INSTALLING TAILPIPE COVERS

  3. Install rear underbody cover.

    > 519419 Removing and installing cover for rear underbody - information on "Installing"

  4. Check coolant level of low-temperature circuit and correct it if necessary.
