Removing Temperature Sensor For Supply Line

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
  1. Remove temperature sensor for supply line -1-  .

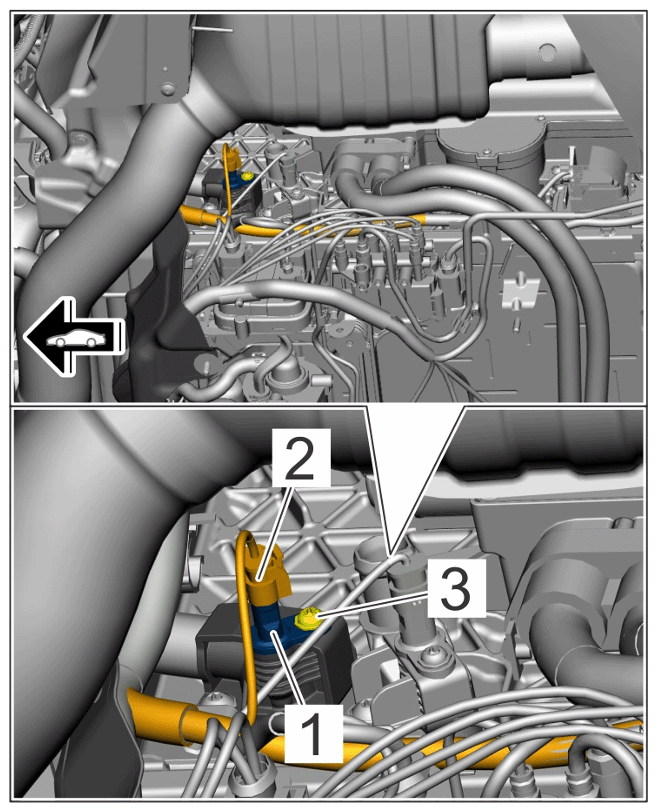

    G15824137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor for supply line

    1. 1.1 Release and disconnect cable plug -2-  .
    2. 1.2 Unscrew screw -3-  .
    3. 1.3 Remove temperature sensor for supply line -1-  .
    4. 1.4 Catch emerging coolant.
