Removing Low-Temperature Circuit Temperature Sensor (TW 7)

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

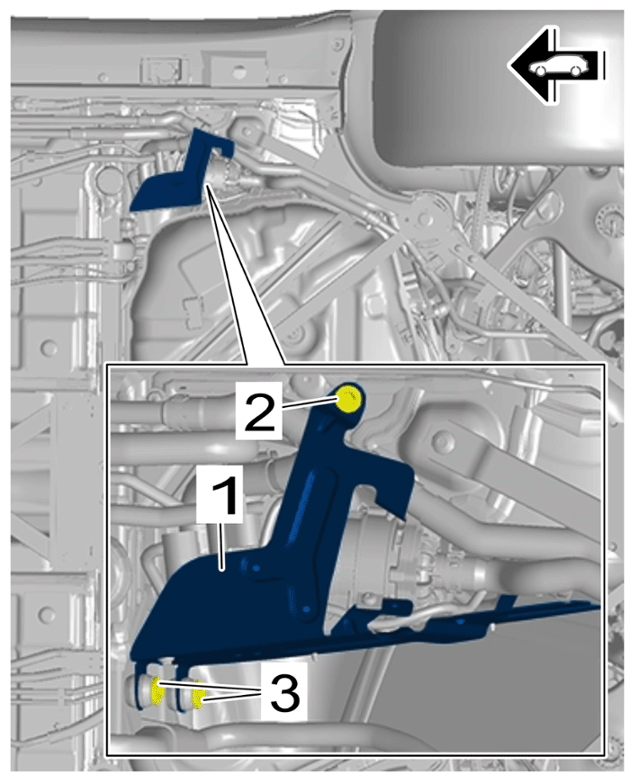

Loosen holder -1- .
1. 1.1 Screw off nut -2- .
2. 1.2 Unscrew and remove screws -3- .
3. 1.3 Move holder -1- so that the low-temperature circuit temperature sensor is accessible. Make sure not to damage any lines.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket

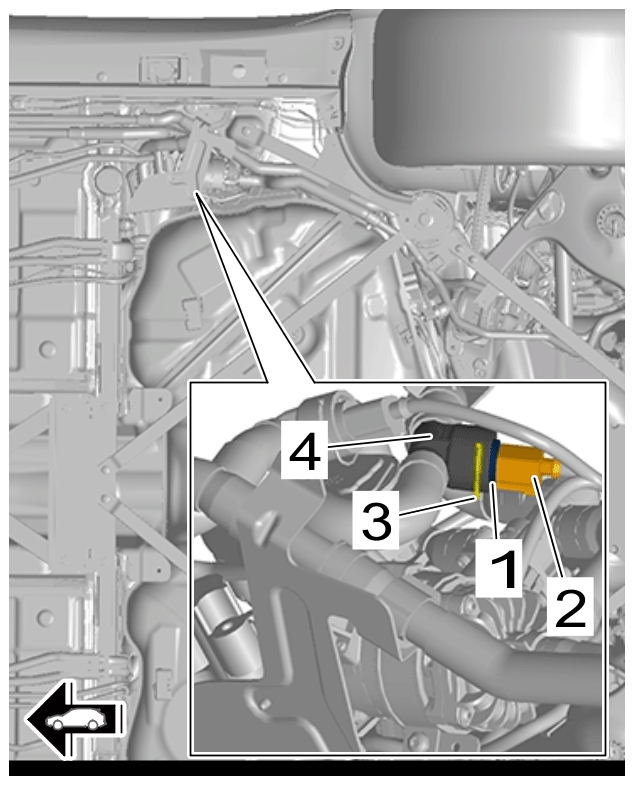

Remove low-temperature circuit temperature sensor -1- .
1. 2.1 Release and disconnect cable plug -2- .
2. 2.2 Pull off retaining clip -3- .
3. 2.3 Pull low-temperature circuit temperature sensor -1- out of line connection -4- .
4. 2.4 Catch escaping coolant and close off line connection using a suitable stopper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-temperature circuit temperature sensor (TW 7)
