Removing Heat EXCHANGER For High-Temperature And Low-Temperature System

1. Disconnect coolant hoses -1-  .
   1. 1.1 Loosen spring band clamps -2-  using > VAS 6890 - Spring Band Clamp Pliers  .
   2. 1.2 Disconnect coolant hoses -1-  from heat exchanger for high-temperature and low-temperature system -3-  and set them aside.
   3. 1.3 Catch escaping coolant and close off line connections using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

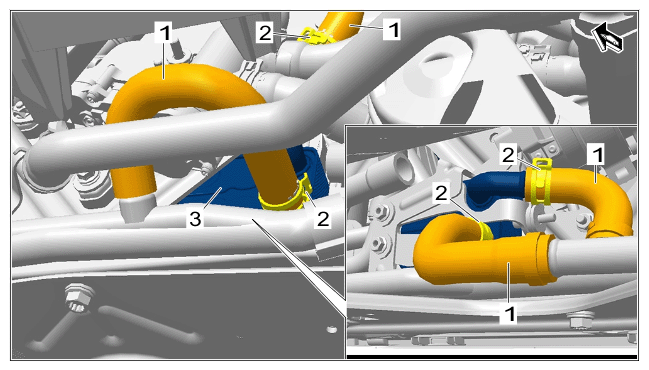

   Coolant hoses for heat exchanger for high-temperature and low-temperature system

2. Remove heat exchanger for high-temperature and low-temperature system -1-  .
   1. 2.1 Unscrew nuts -2-  .
   2. 2.2 Guide heat exchanger for high-temperature and low-temperature system -1-  out of the holder -3-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

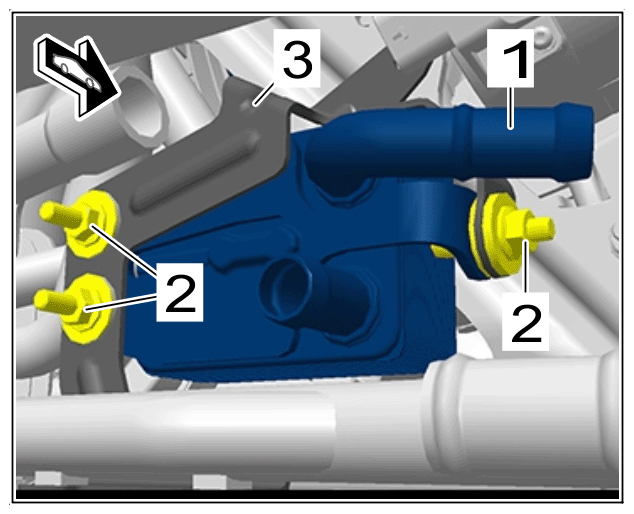

Heat exchanger for high-temperature and low-temperature system
