Removing Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Information

If the coolant pump is replaced, the oil-pressure sender must be removed and installed on the new coolant pump.

> 170419 REMOVING AND INSTALLING OIL-PRESSURE SENDER (V8 BITURBO)

WARNING: Hot fluid
Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
  1. Remove coolant pump -2-  .
    1. 1.1 Have suitable aids ready for collecting emerging coolant.
    2. 1.2 Unscrew and remove screws -1-  .
    3. 1.3 Remove coolant pump -2-  .
    4. 1.4 Collect escaping coolant.

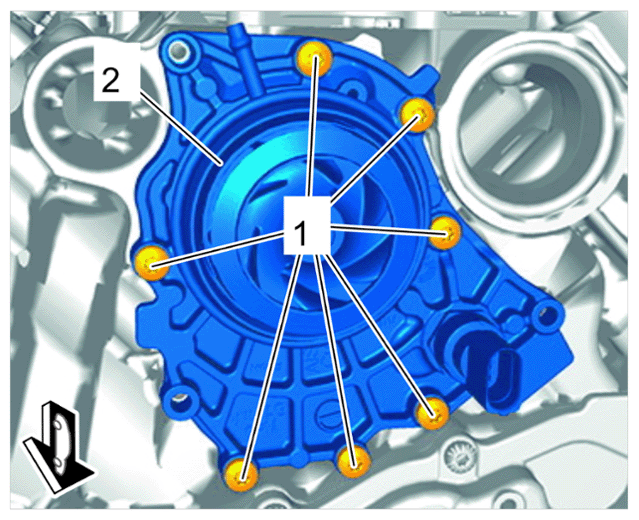

G15824046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing coolant pump
