Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install air guide for air conditioning system at the left.
1. 1.1 Position left air guide and push it onto the centre air guide.
2. 1.2 Tighten screw on left air guide -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

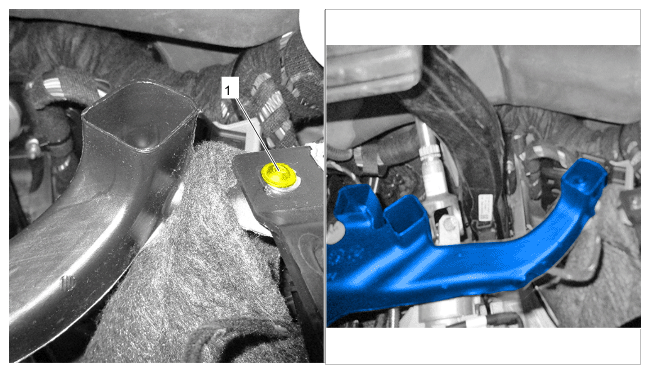

Air guide for air conditioning system, left

If installed:
Install knee airbag on driver's side.
> 697819 Removing and installing knee airbag on driver's side - information on "INSTALLING "

All:
Install cover under dashboard.
> 702219 Removing and installing cover under dashboard - information on "INSTALLING "
