Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.
*Location *Description *Type *Basic value *Tolerance *Tolerance
Fastening nut securing HV battery control unit Item 4 Tightening torque 2.5 Nm (1.75 ftlb.)
G15878942Courtesy of PORSCHE CARS NORTH AMERICA, INC.

HV battery control unit

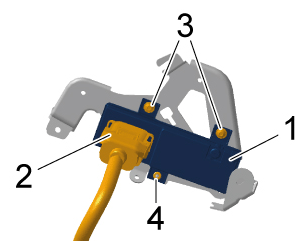

Fastening screws for HV battery control unit Item 3 Tightening torque 9 Nm (6.5 ftlb.)
G15878943Courtesy of PORSCHE CARS NORTH AMERICA, INC.

HV battery control unit
Fastening nuts for HV battery control unit holder Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15878944Courtesy of PORSCHE CARS NORTH AMERICA, INC.

HV battery control unit holder

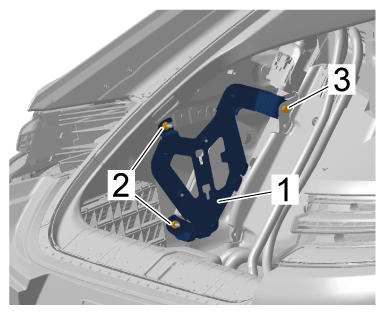

Fastening screw for HV battery control unit holder Item 3 Tightening torque 9 Nm (6.5 ftlb.)
G15878945Courtesy of PORSCHE CARS NORTH AMERICA, INC.

HV battery control unit holder
Fastening screws for holder for power electronics for high-voltage system Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15878946Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power electronics for high-voltage system

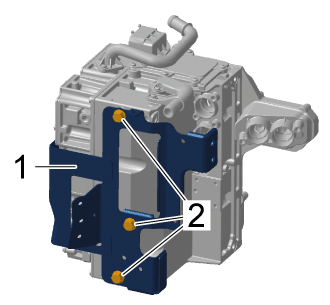

Fastening screws for holder for power electronics for high-voltage system Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15878947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power electronics for high-voltage system

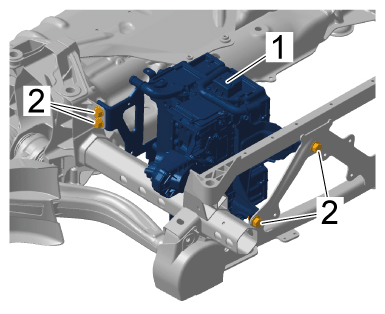

Fastening screws for holder for power electronics for high-voltage system Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15878948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power electronics for high-voltage system

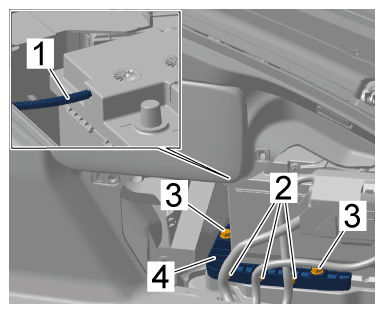

Fastening screws securing retaining bar to battery rail -3- Tightening torque 10 Nm (7.5 ftlb.)
G15878949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent hose
Terminal clamp to battery -1-, -2- Tightening torque 6 Nm (4.5 ftlb.)
G15878950Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Attaching terminal clamps

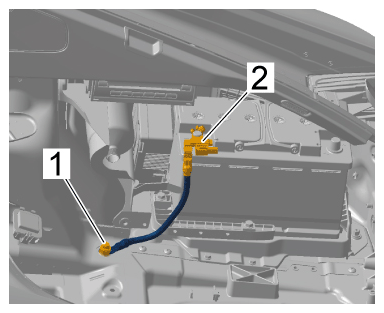

Fastening nut securing positive cable to body -1- Tightening torque 10 Nm (7.5 ftlb.)
G15878951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing battery sensor

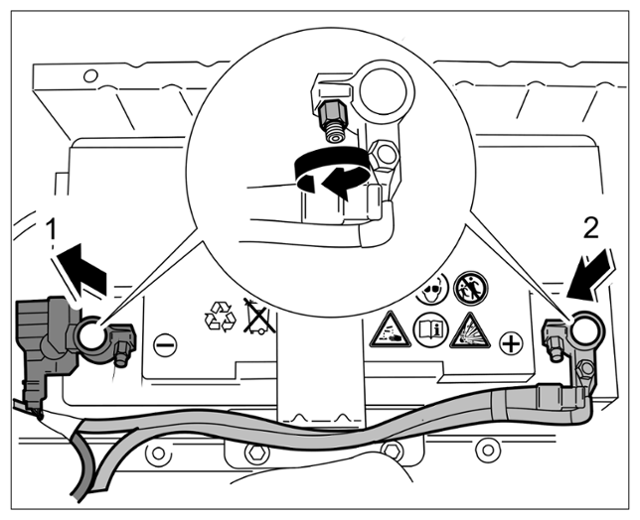

Terminal clamp to battery -1-, -2- Tightening torque 6 Nm (4.5 ftlb.)
G15878952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Attaching terminal clamps

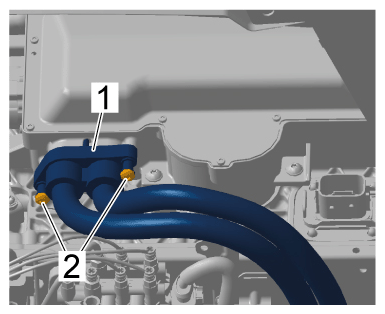

Fastening screw securing high-voltage line to high-voltage battery -1- Tightening torque 8 Nm (6 ftlb.)
G15878953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from power electronics to high-voltage battery at high-voltage battery

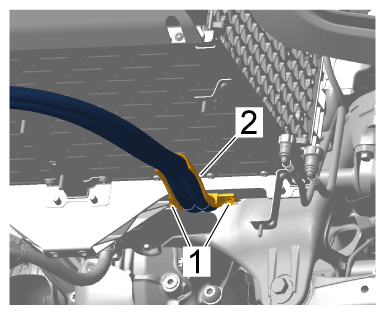

Fastening screws securing line bracket to body -1- Tightening torque 7 Nm (5 ftlb.)
G15878954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

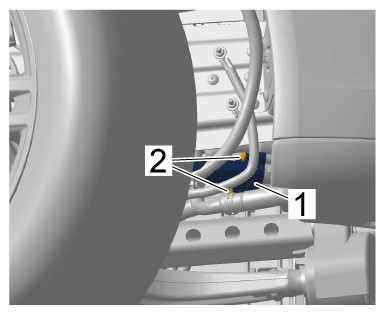

Fastening screws securing high-voltage line to power electronics -2- Tightening torque 8 Nm (6 ftlb.)
G15878955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from power electronics to high-voltage battery at power electronics

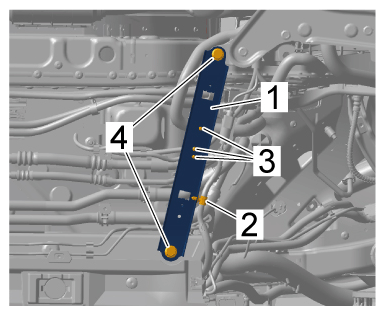

Fastening screw for reinforcement plate on body Item 4 Tightening torque 9.7 Nm (7.5 ftlb.)
G15878956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from high-voltage charger to air-conditioning compressor

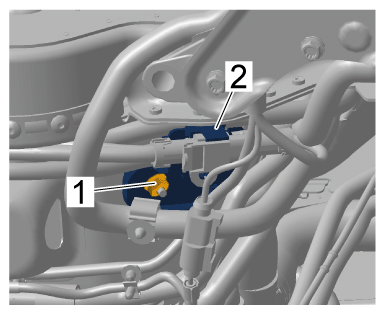

Fastening nut for the high-voltage line bracket Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15878957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line bracket

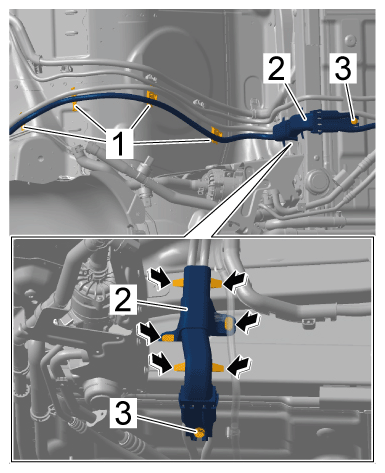

Fastening screw for line bracket Item 3 Tightening torque 2.5 Nm (1.75 ftlb.)
G15878958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

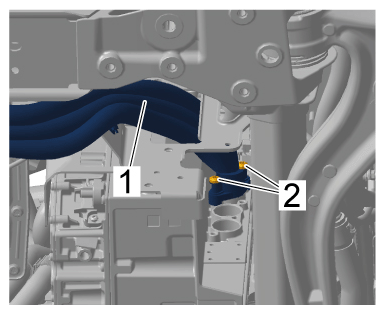

Fastening screws for high-voltage line from power electronics to electric motor at power electronics Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from power electronics to electric motor, front

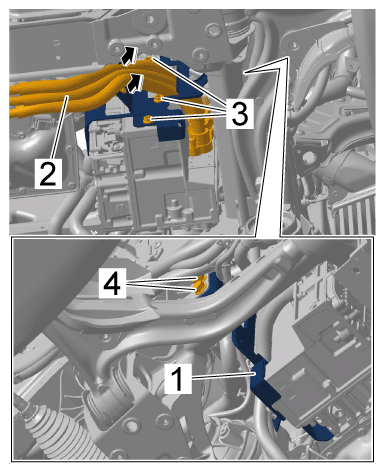

Fastening screws in power electronics holder Item 3 and 4 Tightening torque 7 Nm (5 ftlb.)
G15878960Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for power electronics

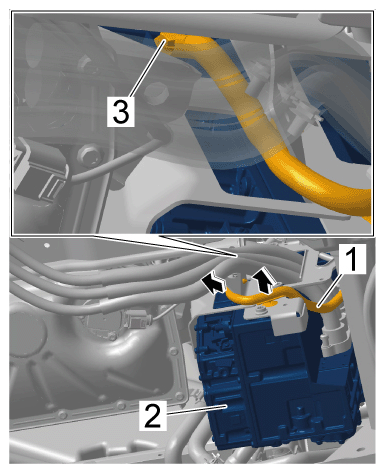

Fastening screw for ground line for power electronics, top Item 3 Tightening torque 20 Nm (15 ftlb.)
G15878961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line for power electronics		 top

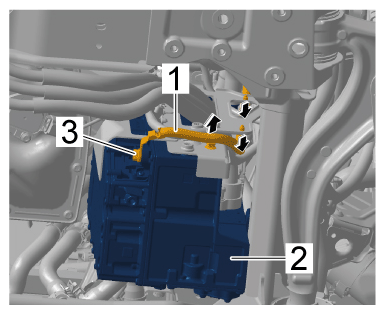

Fastening nut for positive cable for power electronics, bottom Item 3 Tightening torque 20 Nm (15 ftlb.)
G15878962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line for power electronics		 bottom

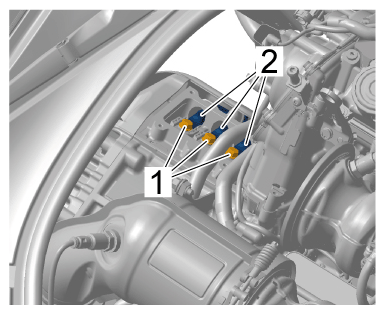

Fastening screws for high-voltage line from power electronics to electric motor at electric motor Item 1 Tightening torque 20 Nm (15 ftlb.)
G15878963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from power electronics to front electric motor at front electric motor

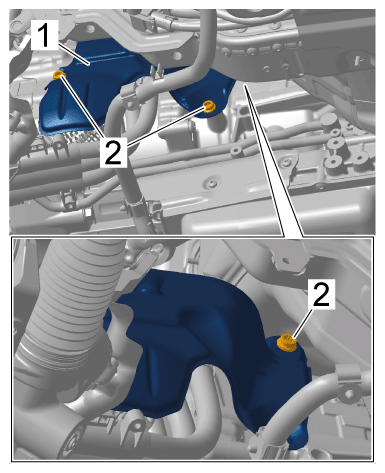

Fastening screws securing heat shield to electric motor Item 2 Tightening torque 20 Nm (15 ftlb.)
G15878964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on electric motor, front

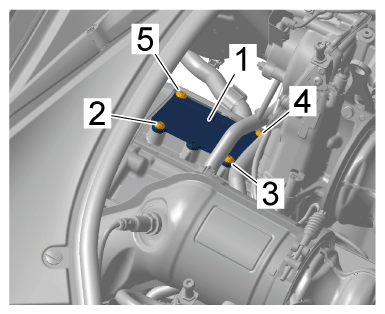

Fastening screws for cover for high-voltage connection on electric motor Item 2, 3, 4, 5 Tightening torque 7 Nm (5 ftlb.)
G15878965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for high-voltage connection for electric motor, front

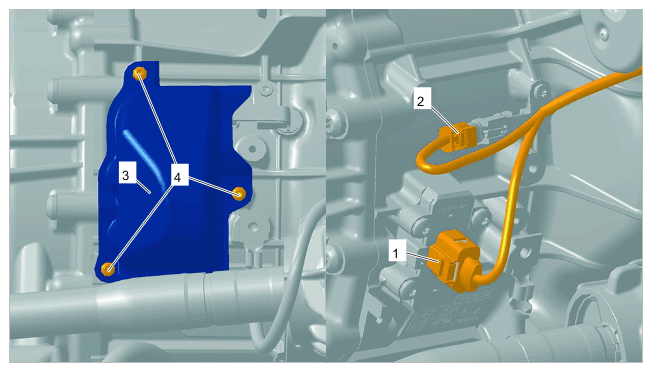

Fastening screws for heat protection on r/or position sensor   Tightening torque 8 Nm (6 ftlb.)
G15878966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rotor position sensor and temperature sensor for electric motor

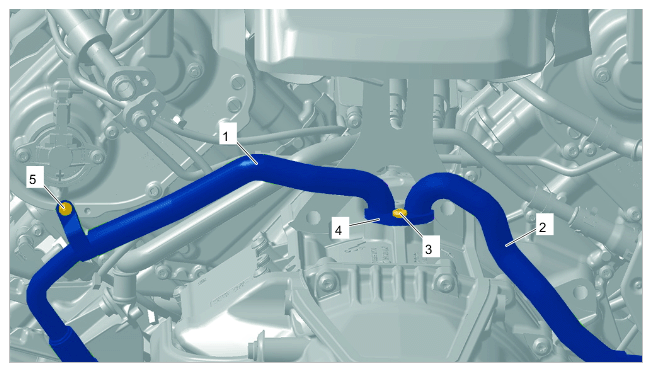

Fastening screws securing coolant line to electric motor   Tightening torque 8 Nm (6 ftlb.)
G15878967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines on electric motor
Fastening screws securing high-voltage battery to body Item 1a, 1b Tightening torque 100 Nm (74 ftlb.)
G15878968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for high-voltage battery

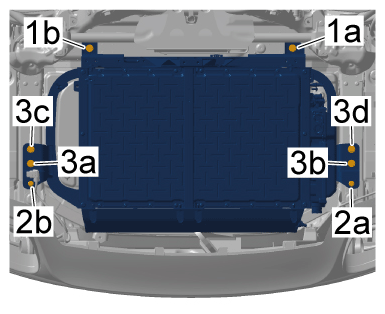

Fastening screws securing high-voltage battery to body Item 2a, 2b Tightening torque 30 Nm (22 ftlb.)
G15878969Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for high-voltage		 battery
Fastening screws securing high-voltage battery to body Item 3a, 3b, 3c, 3d Tightening torque 100 Nm (74 ftlb.)
G15878970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for high-voltage		 battery
Fastening nut securing ground line to bolt on the body Item 1 Tightening torque 8 Nm (6 ftlb.)
G15878971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

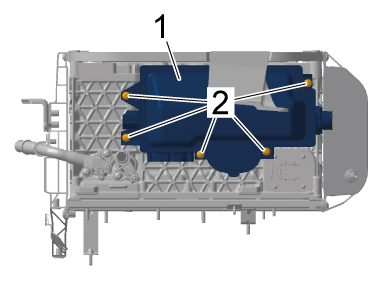

Fastening screws securing E-box to HV battery Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878972Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws on E-box

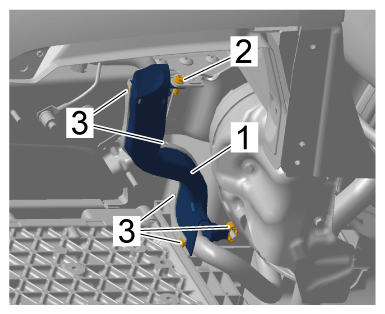

Fastening screw for line bracket Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for line bracket

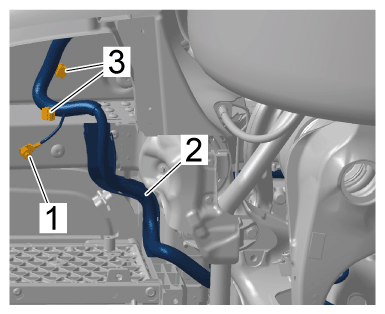

Fastening nut for electric line on body Item 1 Tightening torque 8 Nm (6 ftlb.)
G15878974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut for electric line
Fastening screw securing potential equalization line to high-voltage battery Item 3 Tightening torque 20 Nm (15 ftlb.)
G15878975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for potential equalization line

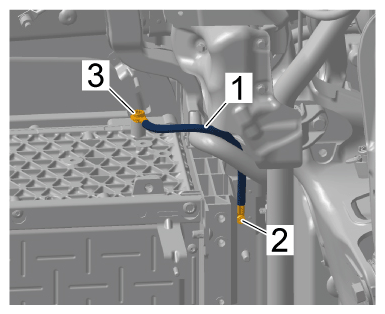

Fastening nut securing equipotential bonding line to underbody Item 2 Tightening torque 9 Nm (6.6 ftlb.)
G15878976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Equipotential bonding line
Fastening screws securing line bracket to body Item 1 Tightening torque 5.4 Nm (3.8 ftlb.)
G15878977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket
Fastening screw securing high-voltage line to high-voltage battery -1- Tightening torque 8 Nm (6 ftlb.)
G15878978Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line from power electronics to high-voltage battery at high-voltage battery

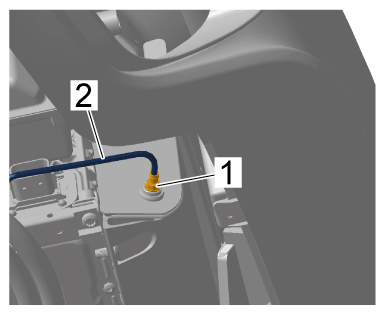

Fastening nut for compressed air connection Item 1 Tightening torque 5 Nm (3.5 ftlb.)
G15878979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing compressed air connection

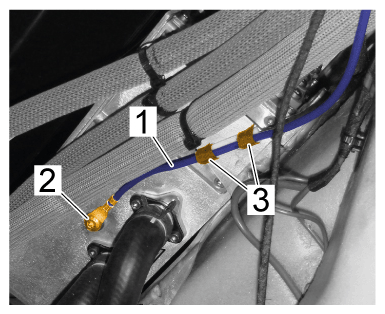

Fastening nut securing ground line to high-voltage charger Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage charger

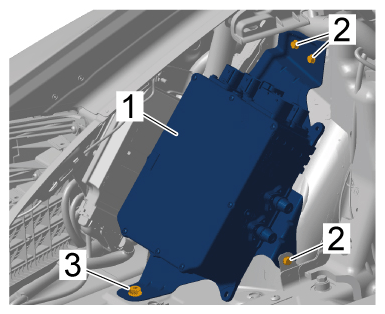

Secure high-voltage charger with the fastening nut Item 3 Tightening torque 2.5 Nm (1.75 ftlb.)
G15878981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut for high-voltage charger
Secure the high-voltage charger holder with the three fastening screws Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878982Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for high-voltage		 charger

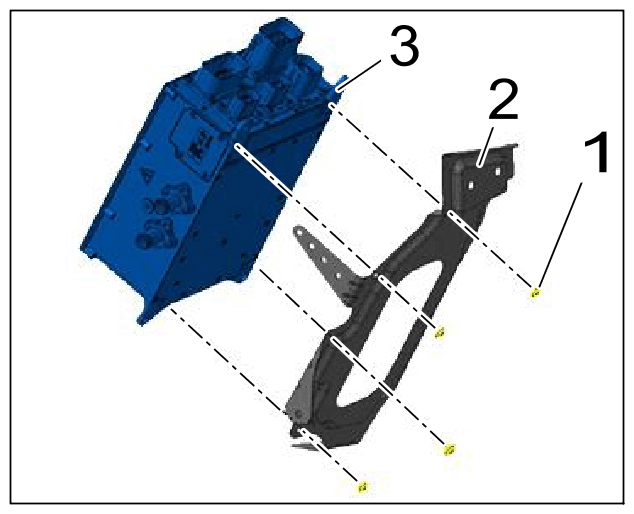

Fastening screws securing holder to charger -1- Tightening torque 8 Nm (6 ftlb.)
G15878983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for charger

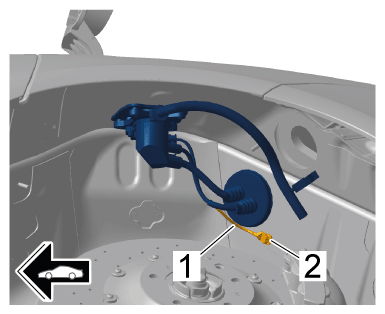

Fastening screw for ground line Item 2 Tightening torque 8 Nm (6 ftlb.)
G15878984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line

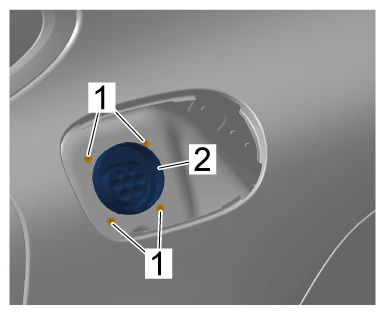

Fastening screw for charging socket Item 1 Tightening torque 5.6 Nm (4 ftlb.) + 0.6 Nm (0.3 ftlb.) - 0.8 Nm (0.4 ftlb.)
G15878985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for charging socket

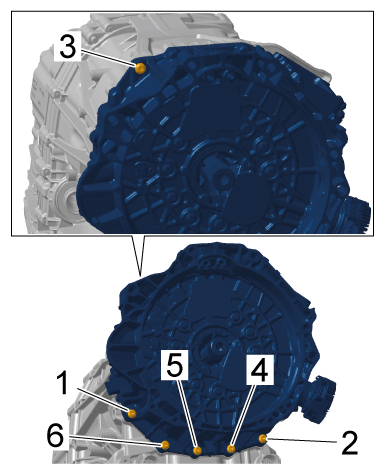

Fastening screw for electric motor Always replace fastening screws; item 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 Tightening torque 20 Nm (15 ftlb.)<br/>+ 45
G15878986Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw-in sequence on engine side

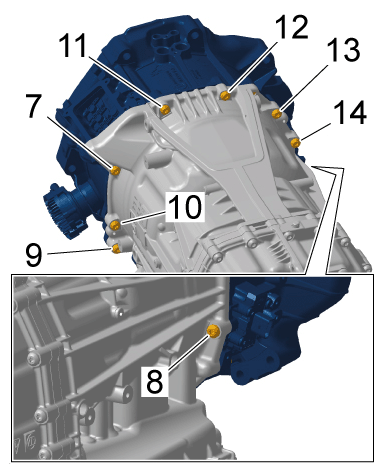

G15878987Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw-in sequence on transmission side
