Technical Values

WARNING: This page is about a different variant/trim than selected.
*Location *Description *Type *Basic value *Tolerance 1 *Tolerance 2
Hose clamp (load group 1, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)
G15860322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15860323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15860324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15860325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)

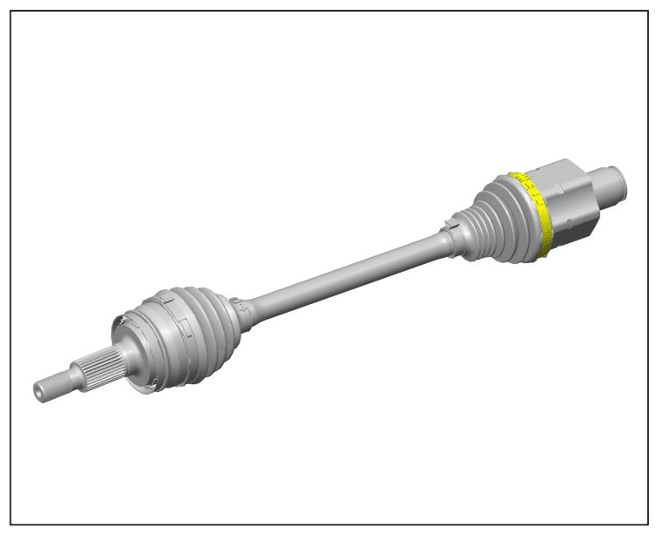

G15860326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15860327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)

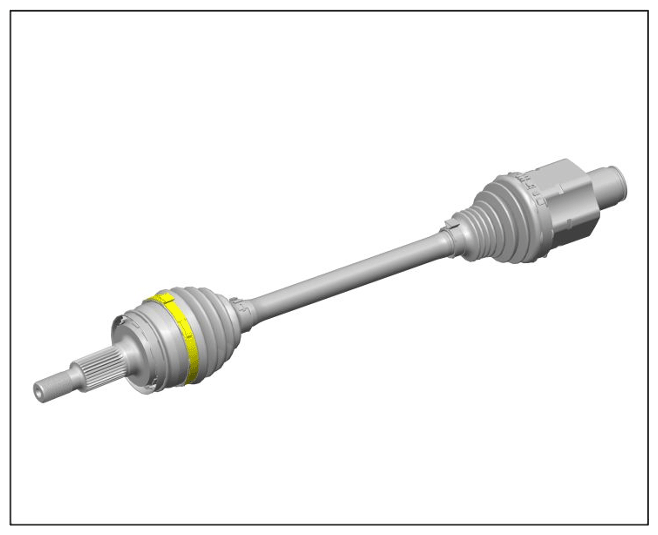

G15860328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 10 Nm (7.5 ftlb.)
G15860329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Quantity of grease on joint at the wheel side Load group 1 (I-no. 0J2/0J3) Weight 90 g + 10 g
Quantity of grease on joint at the transmission side Load group 1 (I-no. 0J2/0J3) Weight 99 g + 10 g
Quantity of grease on joint at the wheel side Load group 2 (I-no. 0J5/0J8) Weight 127 g + 10 g
Quantity of grease on joint at the transmission side Load group 2 (I-no. 0J5/0J8) Weight 119 g + 10 g
