Installing Front-Axle Support (Rear Section)

Information

Make sure that the electric lines for steering and PDCC -1-  are routed through the openings > Correct position of the lines  . The electric lines can be pressed together slightly by screwing the front-axle support (rear section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

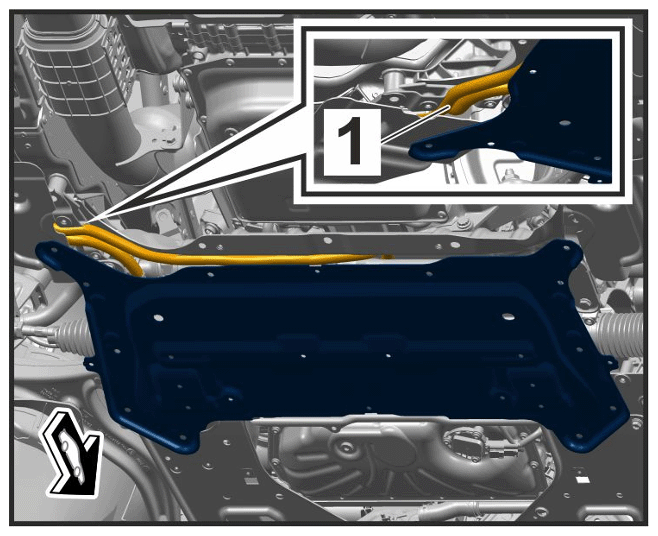

Correct position of the lines

1. Tighten screws -2 and 3-  .

-2-  : > Tightening torque 30 Nm (22 ftlb.)

-3-  : > Tightening torque 30 Nm (22 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

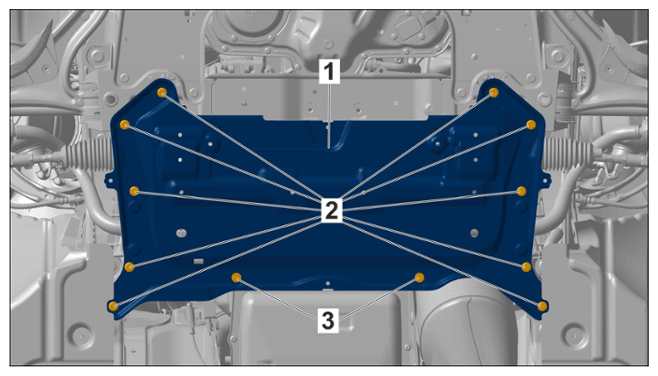

Front-axle support (rear section)
