Installing The Front Axle Carrier

WARNING: This page is about a different variant/trim than selected.

Information

Replace sealing ring.

Coat sealing rings with ATF.

  1. Guide front axle carrier into the vehicle using > VAS 6832 - Master Gear unit elevating platform  and > VAS 6832/7 - assembly fixture - Panamera G2  and fit it on the body.
    1. 1.1 Position elevating platform > VAS 6832 - Master Gear elevating platform  with > VAS 6832/7 - assembly fixture Panamera G2  under the vehicle and raise it carefully.
    2. 1.2 Make sure not to damage the ATF cooler and the high-voltage wire harness for the high-voltage power electronics.
    3. 1.3 Before moving the front axle carrier into installation position, fit front axle carrier on the engine mount on both sides of the vehicle.

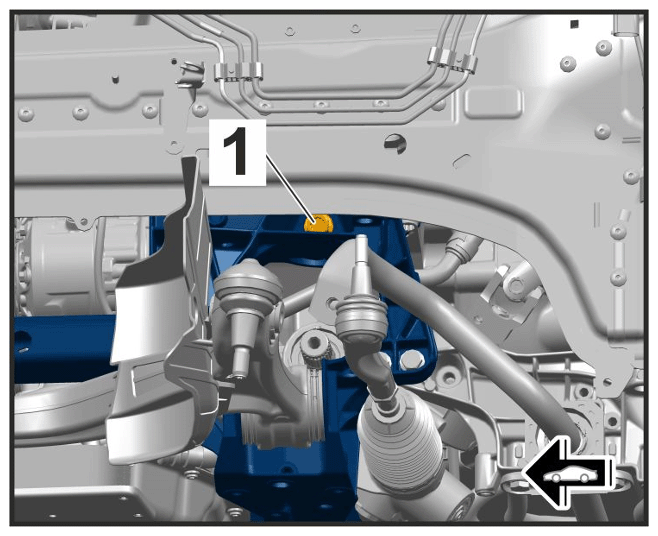

      1. 1.3.1 Tighten screw -1-  to > Initial tightening 70 Nm (52 ftlb.)  and > Final tightening + 90°  .
    G15860236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

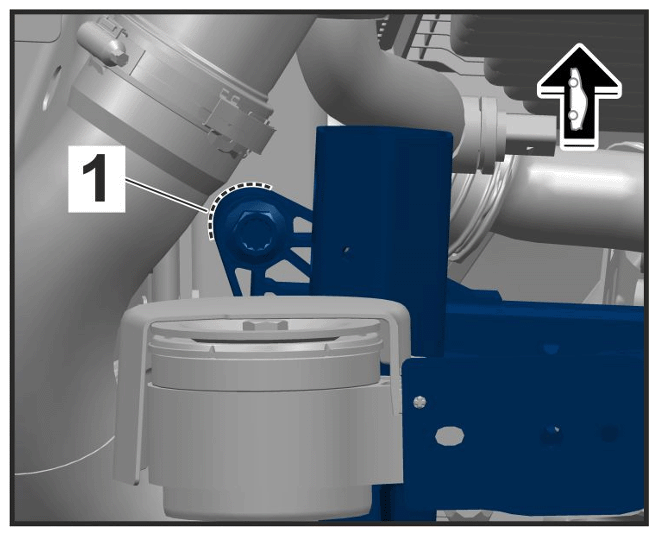

    Fastening front axle carrier on engine mount (V6)

  2. Align front axle carrier according to the markings made during removal -1-  .
    G15860237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking as an example

    1. 3.1 Tighten screws on the front axle carrier -1-  on both sides of the vehicle and fit struts -3-  .
      1. 3.1.1 Front axle carrier to body front -4-  > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°  .
      2. 3.1.2 Front axle carrier to body rear -5-  > Tightening torque 50 Nm (36.9 ftlb.)  .
      3. 3.1.3 Mounting anti-roll bar to body -6-  > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°  .
      4. 3.1.4 Strut with mounting anti-roll bar to body -7-  > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°  .
      5. 3.1.5 Strut to body -8-  > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 45°  .

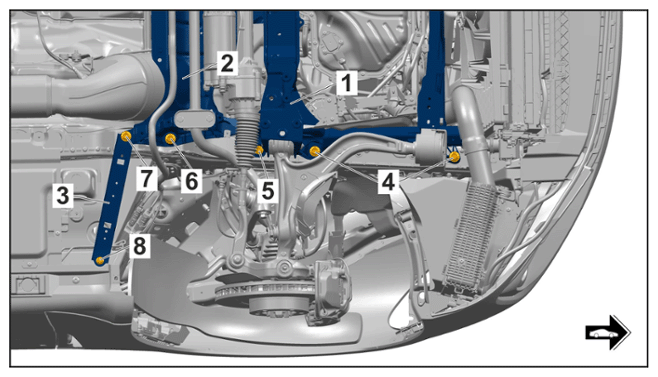

    Fig 1: Front-Axle Carrier Screws Loosening Sequence
    G15860238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening front axle carrier

  4. Lower > VAS 6832 - Master Gear unit elevating platform  .
  5. Tighten bolts, engine mounting -2-  to engine on both sides of the vehicle to > Tightening torque 55 Nm (41 ftlb.)  .

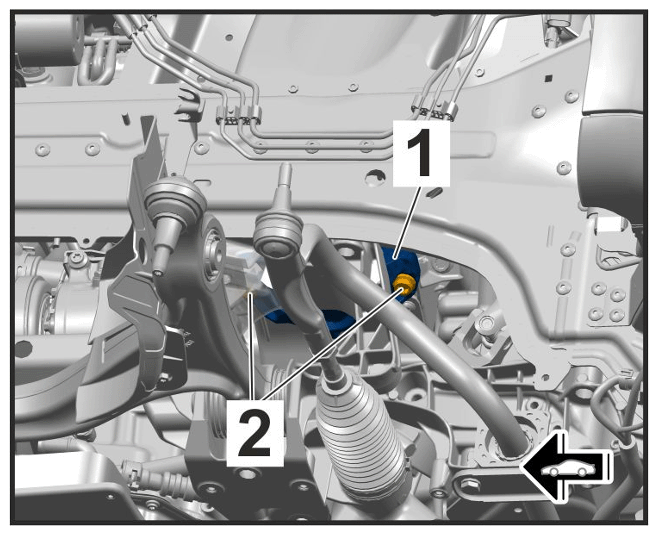

    G15860239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening engine mount on engine (V6)

  6. Connect and lock electric plug connection -3-  on the horn -1-  on both sides of the vehicle.

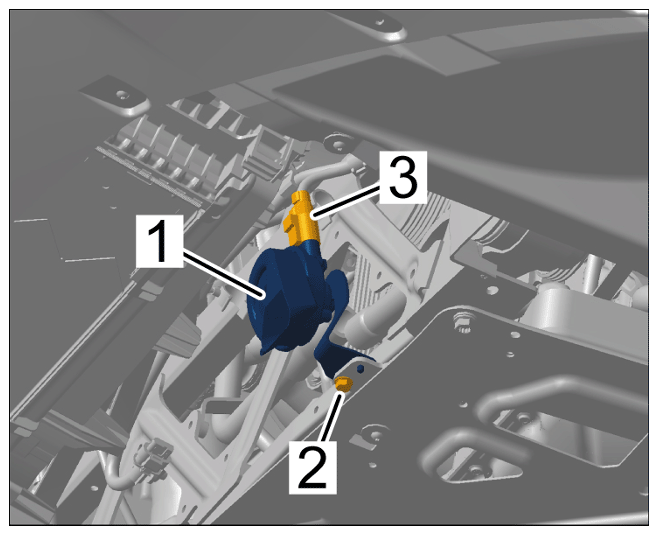

    G15860240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening horn

  7. Secure moulded hose -1-  at the bottom to the charge air cooler on both sides of the vehicle.
    1. 7.1 Push on screw-type clamp -Down arrow-  and tighten to > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)  .

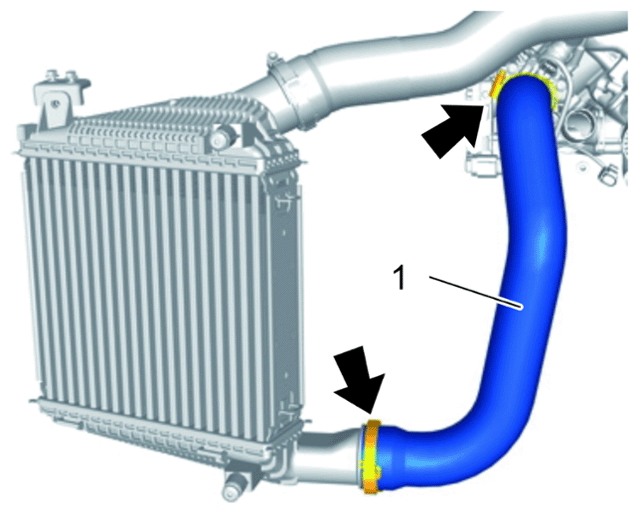

    G15860241Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose from turbocharger to charge air cooler

  8. Align pins for steering column in accordance with markings for left/right-hand drive vehicles > Steering in centre position

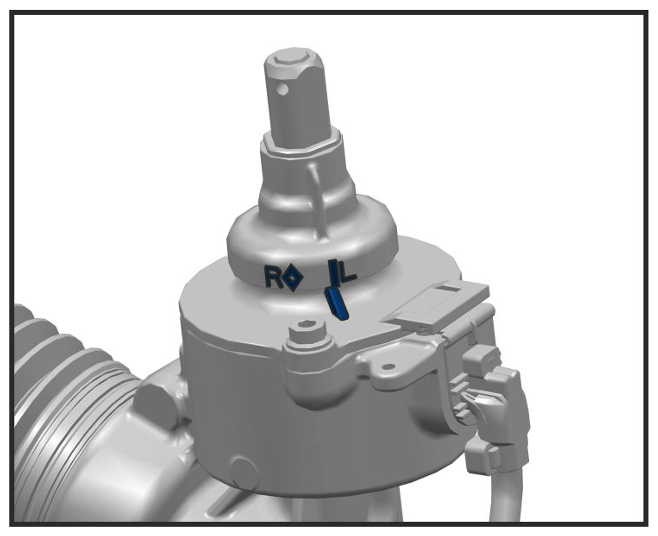

    G15860242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Steering in centre position

  9. Fit universal joint -1-  on power steering gear.
    1. 9.1 Tighten new screw -2-  .

      > Initial tightening 20 Nm (15 ftlb.)  > Final tightening torque angle + 90°

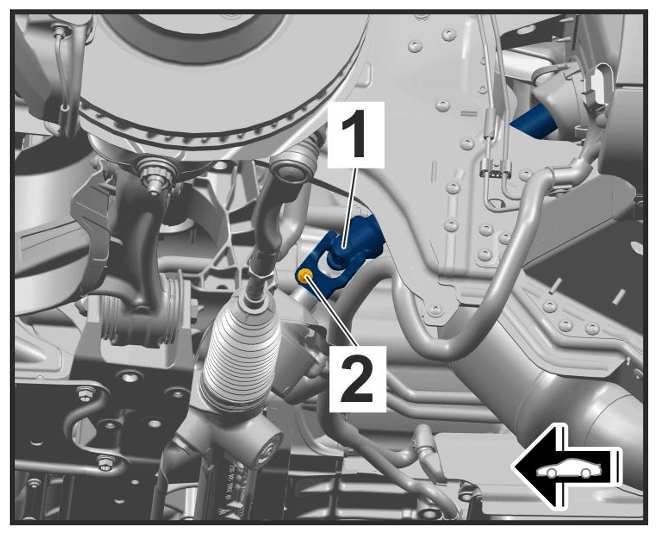

    G15860243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Universal joint mounting

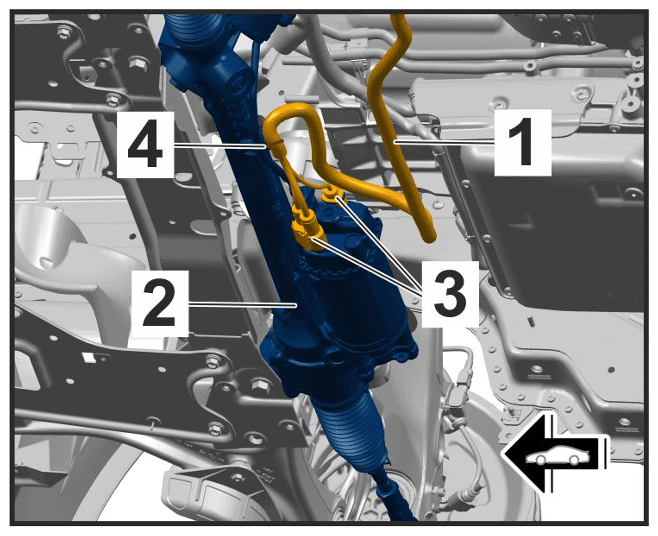

  10. Secure electric line -1-  on the power steering gear -2-  .
    1. 10.1 Connect and lock electric push-on connectors -3-  .
    2. 10.2 Secure bracket -4-  .
    G15860244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric push-on connectors on power steering gear

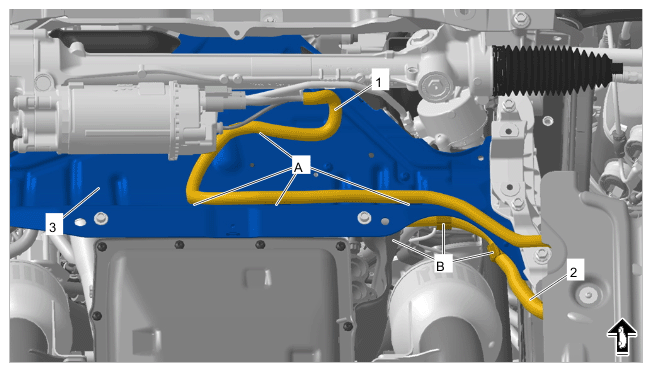

  11. Secure electric line for steering -1-  and electric line for transmission -2-  at -Positions A and B-  on the mounting anti-roll bar -3-  .
    G15860245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on mounting anti-roll bar

  12. Connect coolant hoses -1-  to power electronics.
    1. 12.1 Pull off stoppers on the connection openings on the high-voltage power electronics and the coolant hoses -1-  .
    2. 12.2 Attach coolant hoses -1-  .
    3. 12.3 Position spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  .
    4. 12.4 Remove > Nr.192 - hose clamping pliers  .
    5. 12.5 Secure clips -3-  on high-voltage power electronics.

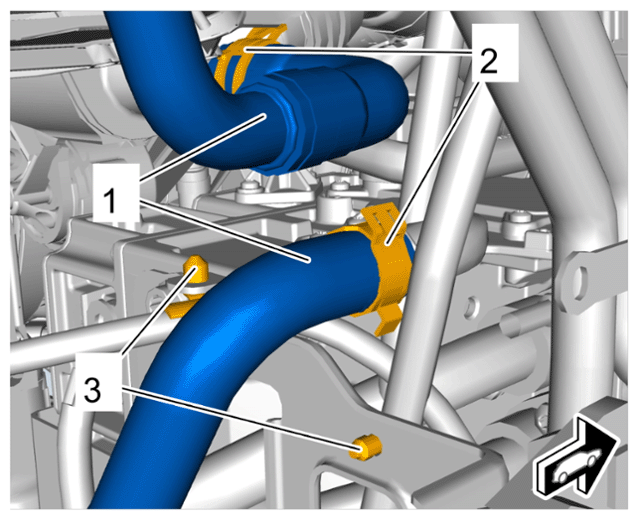

    G15860246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses on power electronics

  13. Connect 12-volt plug connection and adjacent coolant hoses -1-  to high-voltage power electronics.
    1. 13.1 Pull off stoppers on the connection openings on the high-voltage power electronics and the coolant hoses -1-  .
    2. 13.2 Attach coolant hoses -1-  .
    3. 13.3 Position spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  .
    4. 13.4 Remove > Nr.192 - hose clamping pliers  .
    5. 13.5 Connect 12-volt plug connection to electric connection -3-  to the high-voltage power electronics and lock electric plug connection.

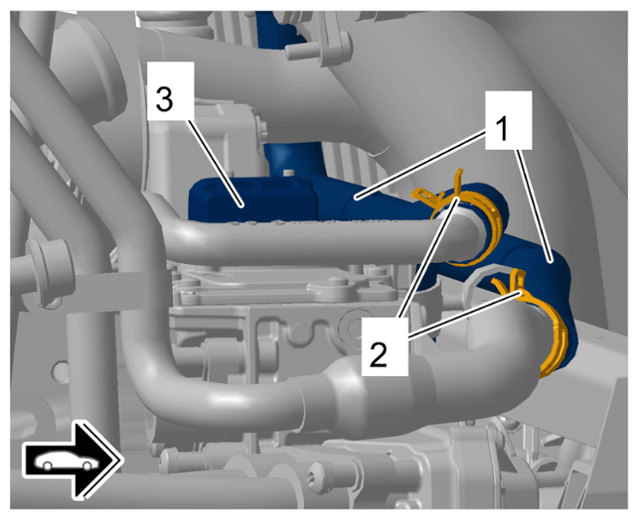

    G15860247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    12-volt plug connection for high-voltage power electronics

  14. Connect electric plug connection -2-  and coolant lines -4-  to the first additional coolant pump -1-  .
    1. 14.1 Connect and lock electric plug connection -2-  .
    2. 14.2 Attach coolant lines -4-  to the first additional coolant pump -1-  and position spring band clamps -3-  using > VAS 6890 - spring band clamp pliers  .

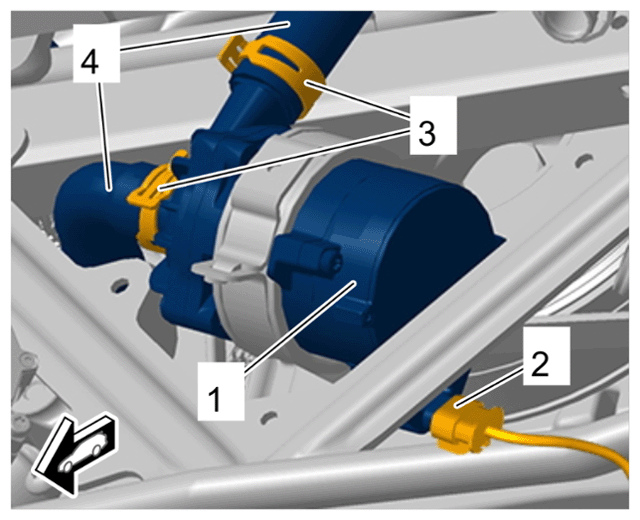

    G15860248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump

  15. Connect electric plug connection -5-  and coolant lines -2 and 3-  to the second additional coolant pump -1-  .
    1. 15.1 Connect and lock electric plug connection -5-  .
    2. 15.2 Attach coolant lines -2 and 3-  on the second additional coolant pump -1-  and position spring band clamps -4-  using > VAS 6890 - spring band clamp pliers  .

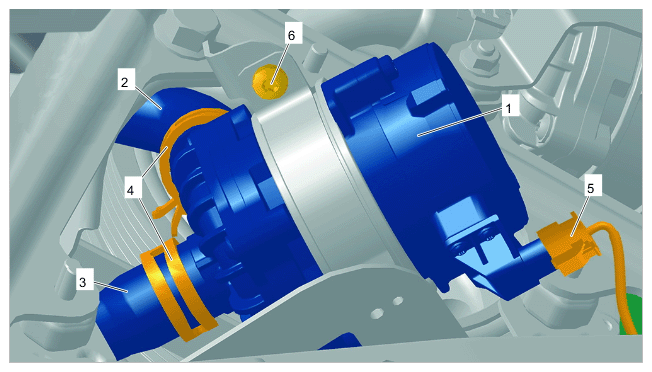

    G15860249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump

  16. Install bracket for high-voltage lines.
    1. 16.1 Loosen fixing device for wire harness for high-voltage lines.
    2. 16.2 Fit tie-wrap loosely and position bracket for high-voltage lines.
    3. 16.3 Clip in upper part of bracket for high-voltage lines.
    4. 16.4 Tighten tie-wrap -3-  .
    5. 16.5 Install expansion rivets -2-  .

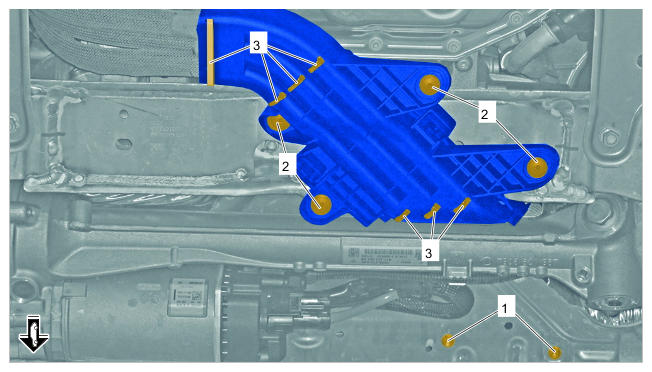

    G15860250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening bracket for high-voltage lines

  17. Secure high-voltage lines on power electronics.
    1. 17.1 Connect high-voltage lines on power electronics.
    2. 17.2 Fit screws -1-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .

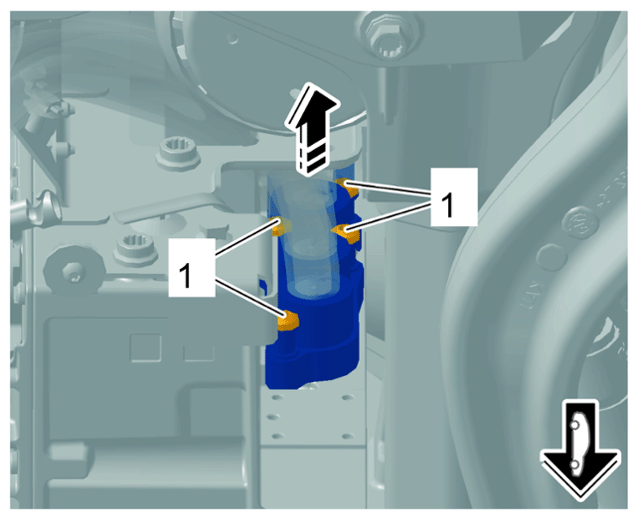

    G15860251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    High-voltage lines for power electronics

    Information

    • Protect high-voltage plug connections from dampness.
    • Do not release high-voltage plug connections until you have opened the cooling system.
  18. Secure high-voltage lines -2-  at the side of the power electronics.
    1. 18.1 Connect high-voltage lines -2-  on high-voltage power electronics.
    2. 18.2 Fit screws -1-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .

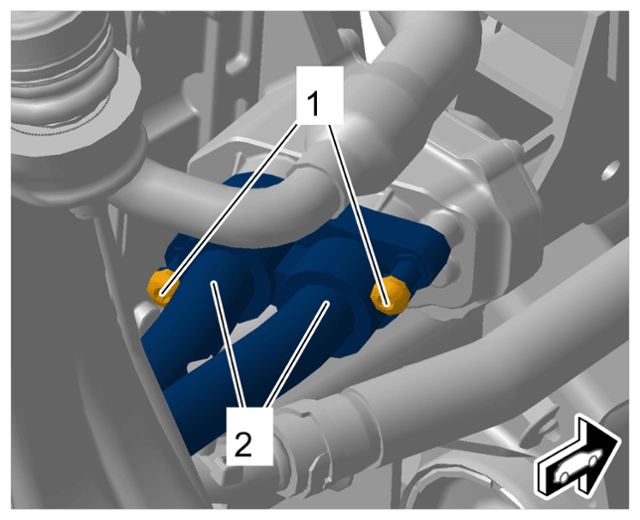

    G15860252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    High-voltage lines at the side of the power electronics

  19. Secure electric lines -1-  to high-voltage power electronics.
    1. 19.1 Position electric lines -1-  on high-voltage power electronics and fasten clips -3-  .
    2. 19.2 Fit connections for electric lines -1-  (positive at the bottom/ground at the top  ) on the studs.
    3. 19.3 Fit nuts -2-  .
    4. 19.4 Tighten nut on positive line (bottom) to > Tightening torque 20 Nm (15 ftlb.)  .
    5. 19.5 Tighten nut on ground line (top) to > Tightening torque 20 Nm (15 ftlb.)  .

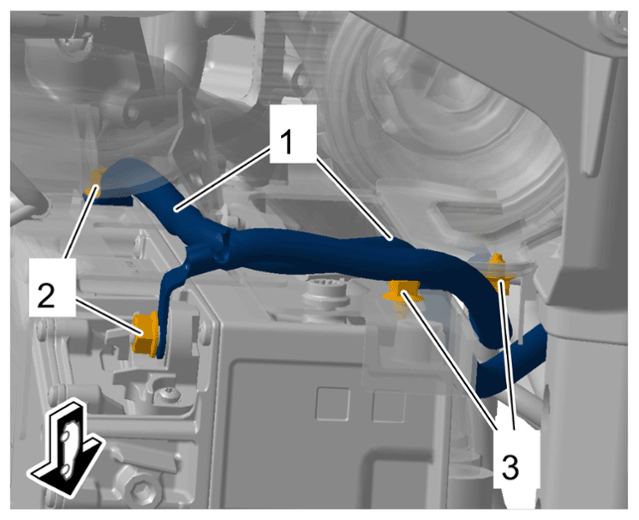

    G15860253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines for high-voltage power electronics

  20. Only for vehicles with PDCC:  Connect electric plug connections to the roll stabilization (PDCC).

    Information

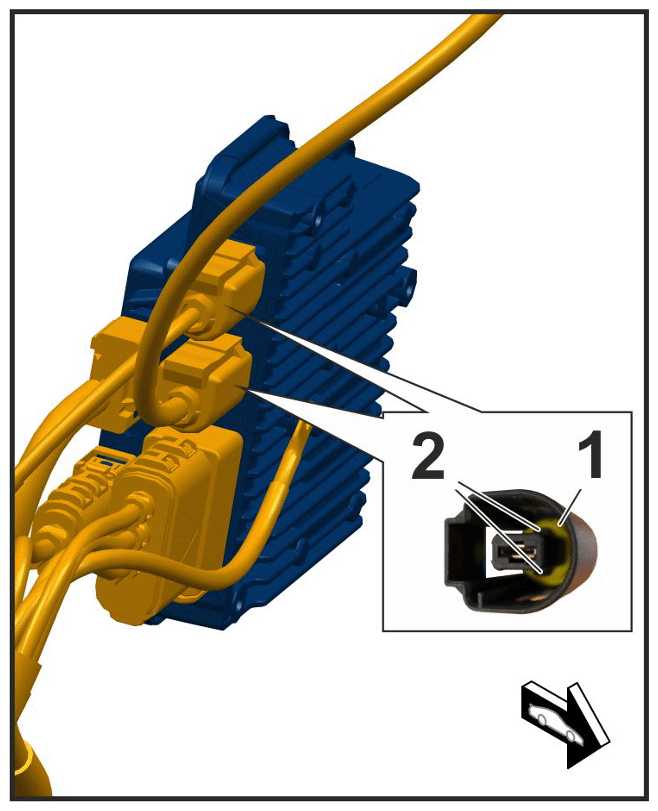

    Before connecting the 48 V connectors, check whether the sealing ring -1-  is positioned under the locking lugs -2-  in the connectors.

    Carefully press the sealing ring back over the locking lugs if necessary.

    G15860254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Correct position of sealing ring

    1. 20.1 Plug in and lock electric plug connections on the roll stabilization (PDCC) in sequence -1 to 5-  .

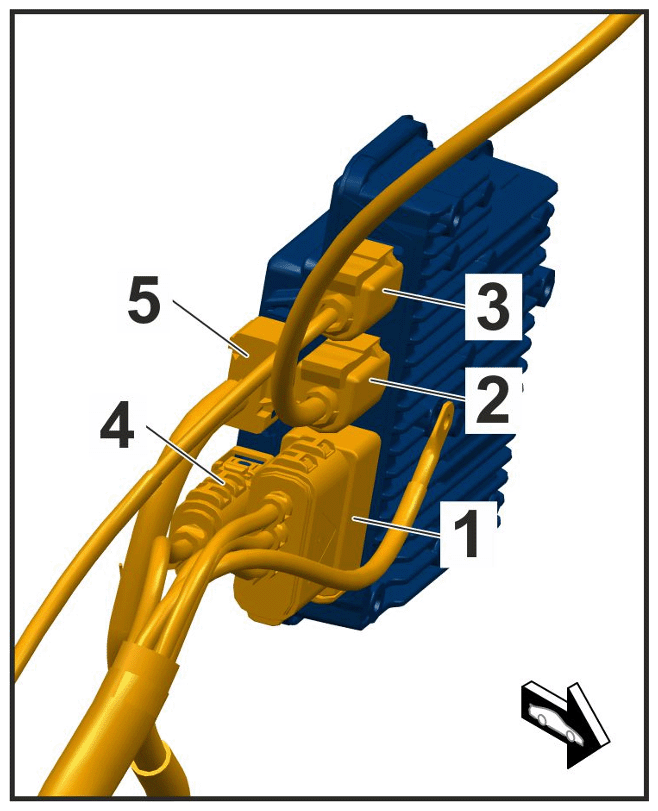

    G15860255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sequence for connecting electric plug connections

  21. Only for vehicles with PDCC:  Fit wire harness for PDCC -1-  .
    1. 21.1
    2. 21.2 Secure bracket -3-  .
    3. 21.3 Tighten screw for ground line -2-  to > Tightening torque 5.6 Nm (4 ftlb.)  .

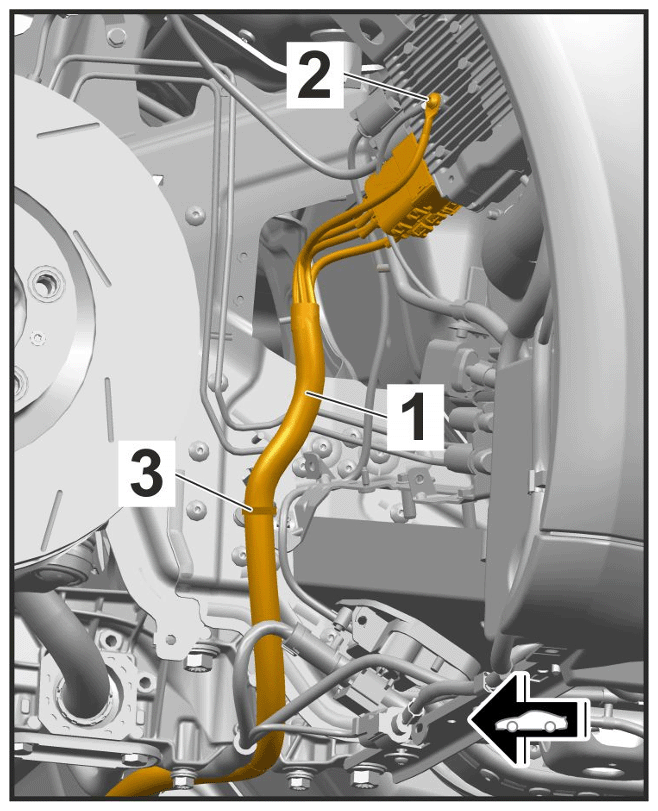

G15860256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening wire harness for PDCC
